TRANSMISSION
KX250-L4 KX250 2002 USA CANADA

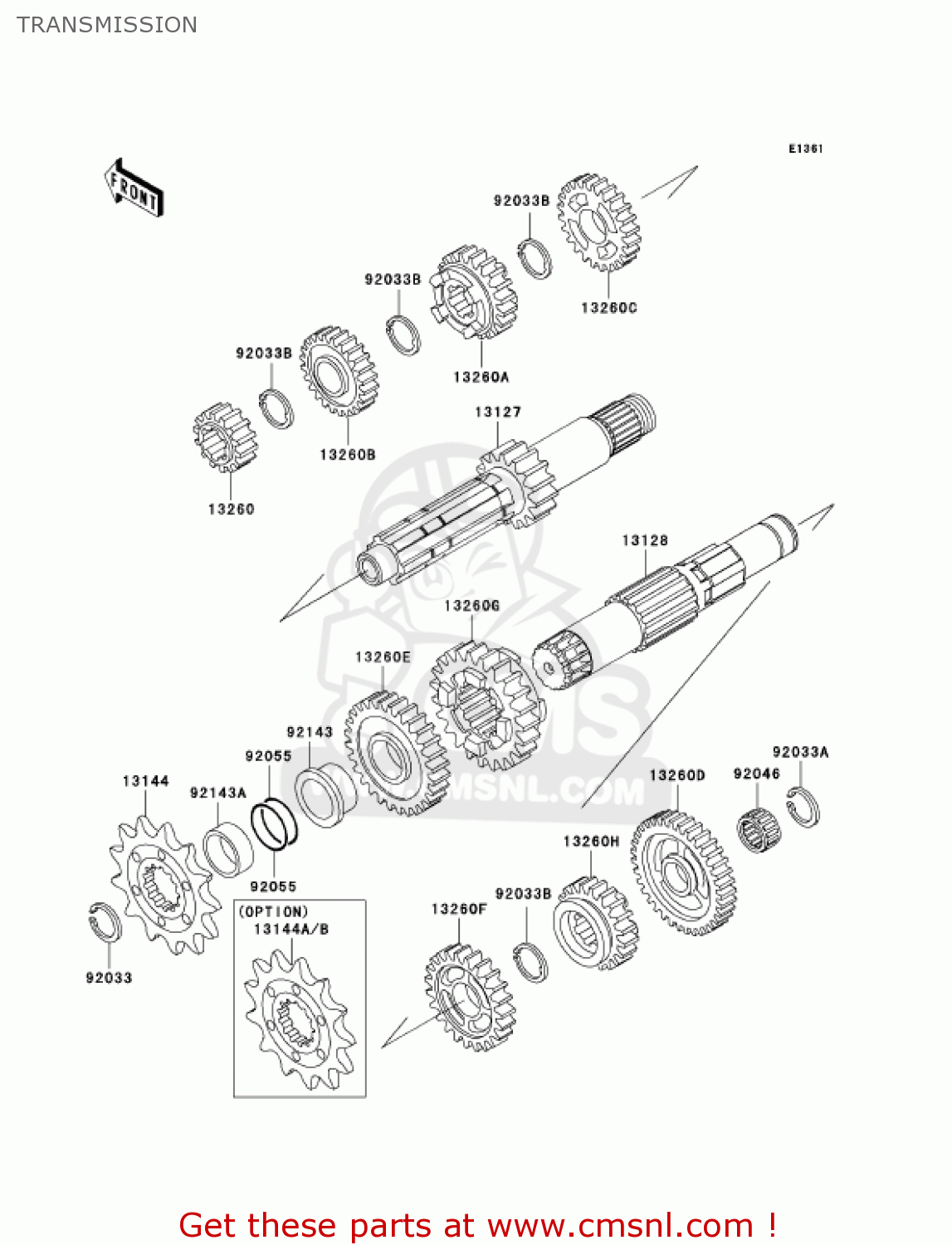

Transmission diagram KX250-L4 KX250 2002 USA CANADA
TRANSMISSION KX250-L4 KX250 2002 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271267
ref: 13127
SHAFT-TRANSMISSION IN
€ 176.00
13128
131281232
ref: 13128
SHAFT-TRANSMISSION OU
€ 129.50
13144
131441294
ref: 13144
SPROCKET-OUTPUT,13T
€ 30.50
13144A
131441295
ref: 13144A
(OPTION)
SPROCKET-OUTPUT,14T
€ 30.50
13144B
131441296
ref: 13144B
(OPTION)
SPROCKET-OUTPUT,15T
€ 30.00
13260
132601926
ref: 13260
GEAR,INPUT 2ND,17T
€ 86.00
13260A
132601927
ref: 13260A
GEAR,INPUT 3RD,19T
€ 104.50
13260B
132601928
ref: 13260B
GEAR,INPUT 4TH,21T
€ 114.50
13260C
132601929
ref: 13260C
GEAR,INPUT TOP,23T
€ 102.50
13260D
132601930
ref: 13260D
GEAR,OUTPUT LOW,27T
€ 114.50
13260E
132601931
ref: 13260E
GEAR,OUTPUT 2ND,25T
€ 92.50
13260F
132601932
ref: 13260F
GEAR,OUTPUT 3RD,23T
€ 104.50
13260G
132601933
ref: 13260G
GEAR,OUTPUT 4TH,21T
€ 101.50
13260H
132601934
ref: 13260H
GEAR,OUTPUT TOP,20T
€ 121.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92033B
920331089
ref: 92033B
RING-SNAP,25MM
€ 3.50
92046
920461170
ref: 92046
BEARING-NEEDLE,KT2026
€ 9.00
92055
92055035
ref: 92055
O RING
€ 3.00
92143
921431361
ref: 92143
COLLAR
€ 20.00
92143A
921431441
ref: 92143A
COLLAR,SPROCKET
€ 17.50
