ENGINE COVER(S)
KX250-L4 KX250 2002 USA CANADA

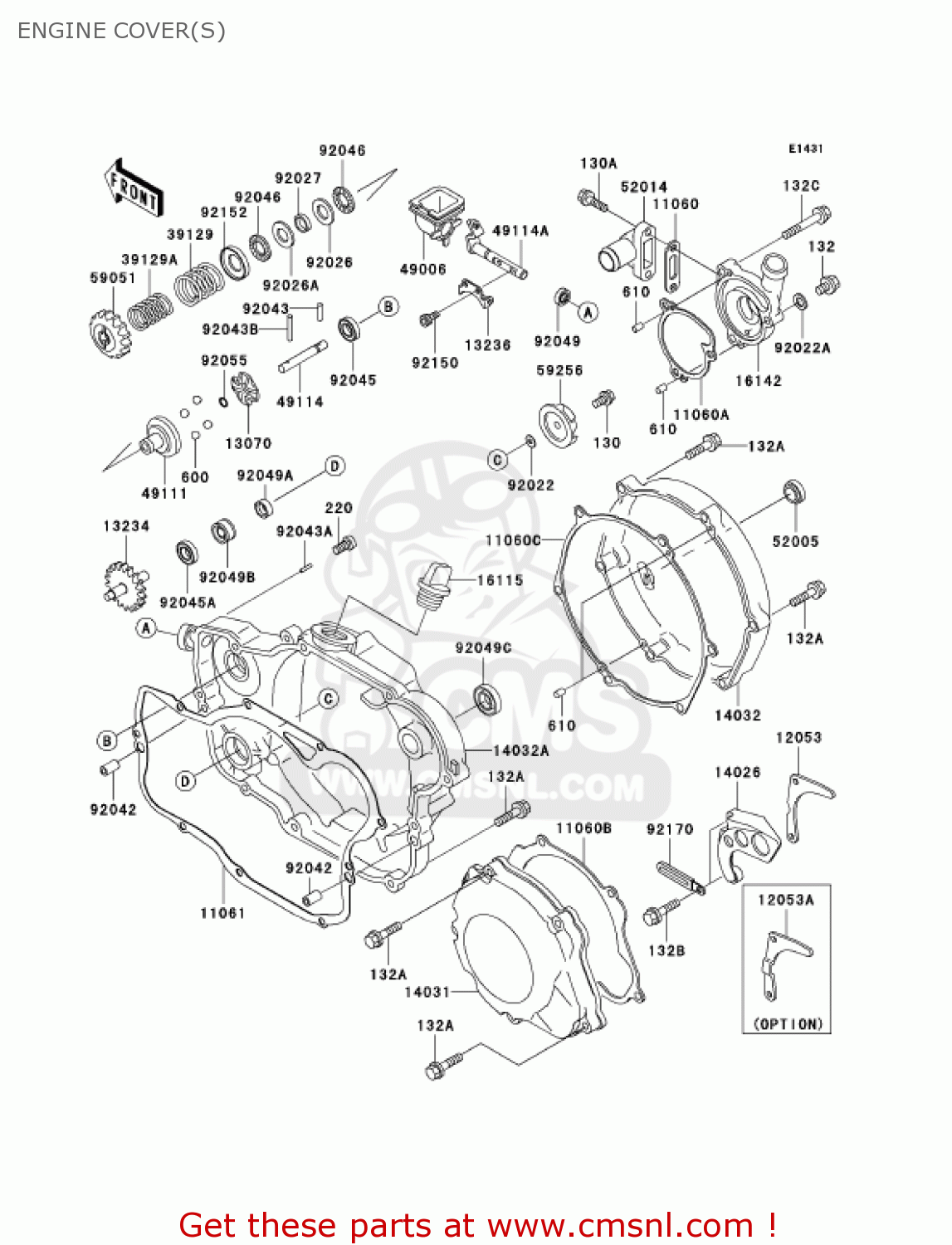

Engine cover(s) diagram KX250-L4 KX250 2002 USA CANADA
ENGINE COVER(S) KX250-L4 KX250 2002 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11060
110601183
ref: 11060
GASKET (NAS)
€ 3.50
11060A
110601184
ref: 11060A
GASKET,PUMP COVER (NAS)
€ 4.50
11060B
110601352
ref: 11060B
GASKET,GENERATOR COVE (NAS)
€ 16.00
11060C
110601494
ref: 11060C
GASKET,CLUTCH COVER,O (NAS)
€ 18.00
11061
110611058
ref: 11061
GASKET,CLUTCH COVER,I (NAS)
€ 28.50
12053
120531382
ref: 12053
GUIDE-CHAIN
€ 8.00
12053A
120531387
ref: 12053A
(OPTION)
GUIDE-CHAIN
€ 8.00
13070
130701343
ref: 13070
GUIDE,GOVERNOR
€ 37.50
13234
132341115
ref: 13234
SHAFT-COMP
€ 103.50
13236
132361266
ref: 13236
LEVER-COMP,GOVERNOR
€ 8.00
14026
140261174
ref: 14026
COVER-CHAIN
€ 18.00
14031
140311283
ref: 14031
COVER-GENERATOR
€ 48.00
14032
140321483
ref: 14032
COVER-CLUTCH,OUTER
€ 88.00
14032A
140321526
ref: 14032A
COVER-CLUTCH,INNER
€ 254.50
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
16142
161421159
ref: 16142
COVER-PUMP
€ 101.50
39129
391291024
ref: 39129
SPRING-GOVERNOR
€ 4.00
39129A
391291025
ref: 39129A
SPRING-GOVERNOR
€ 4.50
49006
490061277
ref: 49006
BOOT
€ 8.00
49111
491111062
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 48.00
49114
491141074
ref: 49114
SHAFT-GOVERNOR
€ 17.50
49114A
491141102
ref: 49114A
SHAFT-GOVERNOR
€ 21.00
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
52014
520141082
ref: 52014
ELBOW
€ 20.50
59051
590511399
ref: 59051
GEAR-SPUR,GOVERNOR
€ 39.50
59256
592561065
ref: 59256
IMPELLER
€ 25.50
92022
920221380
ref: 92022
WASHER,5.2X13X1
€ 2.50
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92026
920261501
ref: 92026
SPACER,T=2.0
€ 4.50
92026A
920261590
ref: 92026A
SPACER
€ 4.50
92027
920271839
ref: 92027
COLLAR,15.2X17X4
€ 8.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920431256
ref: 92043
PIN,3X12.8
€ 3.00
92043A
920431293
ref: 92043A
PIN,2X9.8
€ 4.00
92043B
920431319
ref: 92043B
PIN,3X19.8
€ 2.50
92045
920451123
ref: 92045
BEARING-BALL,#628
€ 23.50
92045A
920451305
ref: 92045A
BEARING-BALL,608MC3
€ 11.50
92046
920461252
ref: 92046
BEARING-NEEDLE
€ 12.50
92049
920491207
ref: 92049
SEAL-OIL,SDO8144
€ 6.50
130
130P0514
ref: 130
BOLT-FLANGED
€ 2.50
130A
130P0520
ref: 130A
BOLT-FLANGED
€ 1.00
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0630
ref: 132B
BOLT-FLANGED-SMALL
€ 1.50
132C
132G0665
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
220
220B0306
ref: 220
SCREW-PAN-CROS
€ 0.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
92049A
920491359
ref: 92049A
SEAL-OIL
€ 6.50
92049B
920491366
ref: 92049B
SEAL-OIL,MHSD8X18X10J
€ 12.50
92049C
920491594
ref: 92049C
SEAL-OIL,A80984H0 KIC
€ 10.50
92055
920551343
ref: 92055
RING-O,5.5X1.5
€ 3.00
92150
921501888
ref: 92150
BOLT,SOCKET,4X8
€ 2.00
92152
921521188
ref: 92152
COLLAR
€ 4.50
92170
921701514
ref: 92170
CLAMP
€ 2.50
