CARBURETOR

KX250-L4 KX250 2002 USA CANADA

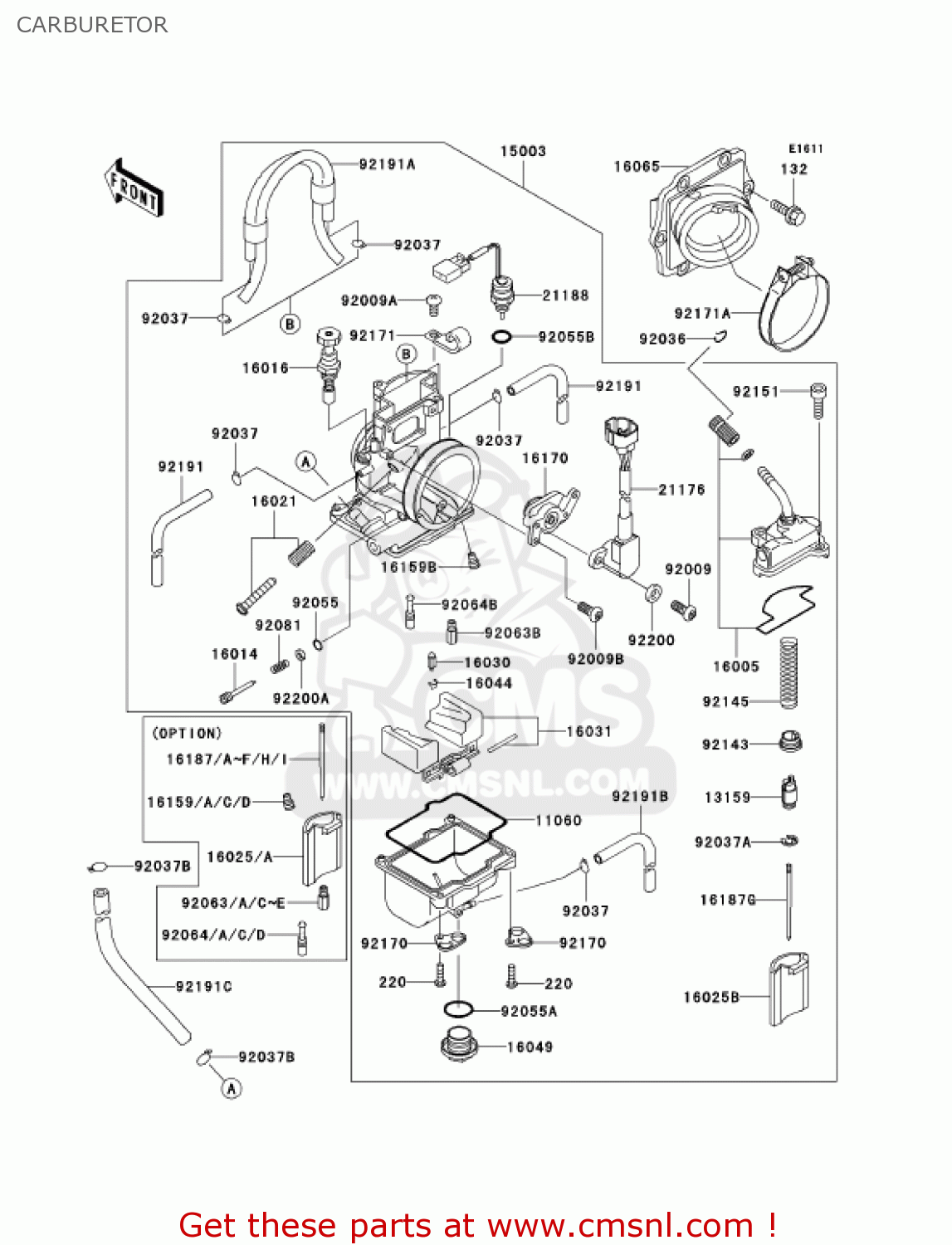

Carburetor diagram KX250-L4 KX250 2002 USA CANADA

CARBURETOR KX250-L4 KX250 2002 USA CANADA
CARBURETOR KX250-L4 KX250 2002 USA CANADA
CARBURETOR KX250-L4 KX250 2002 USA CANADA
prices are in EUR
ref
part #
description
quantity
11060
110601254
ref: 11060
GASKET,FLOAT CHAMBER (NAS)
110601254
€ 11.50
13159
131591063
ref: 13159
CONNECTOR,THROTTLE CA
131591063
€ 13.50
15003
150031667
ref: 15003
CARBURETOR-ASSY
€ 642.50
16005
160051083
ref: 16005
TOP-CHAMBER
160051083
€ 38.50
16014
160141058
ref: 16014
SCREW-PILOT AIR
160141058
€ 14.00
16016
160161085
ref: 16016
PLUNGER
160161085
€ 30.00
16021
160211198
ref: 16021
SCREW-THROTTLE STOP
160211198
€ 14.00
16025
160251215
ref: 16025
(OPTION)
VALVE-THROTTLE,#6
160251215
€ 89.50
16025A
160251216
ref: 16025A
(OPTION)
VALVE-THROTTLE,#7
160251216
€ 85.50
16025B
160251217
ref: 16025B
VALVE-THROTTLE,#8
160251217
€ 89.50
16030
160301057
ref: 16030
VALVE-FLOAT
160301057
€ 37.00
16031
160311100
ref: 16031
FLOAT
160311100
€ 40.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16049
160491051
ref: 16049
COVER-MAIN JET
160491051
€ 23.50
16065
160651358
ref: 16065
HOLDER-CARBURETOR
160651358
€ 80.00
16159
161591053
ref: 16159
(OPTION)
JET-POWER,#50
161591053
€ 10.00
16159A
161591055
ref: 16159A
(OPTION)
JET-POWER,#52
161591055
€ 10.00
16159B
161591058
ref: 16159B
JET-POWER,#48
€ 9.50
16159C
161591059
ref: 16159C
(OPTION)
JET-POWER,#42
161591059
€ 10.50
16159D
161591060
ref: 16159D
(OPTION)
JET-POWER,#45
€ 11.50
16170
161701057
ref: 16170
LINK-ASSY
€ 79.50
16187
161871154
ref: 16187
(OPTION)
NEEDLE-JET,NALD 2.685
€ 24.50
16187A
161871155
ref: 16187A
(OPTION)
NEEDLE-JET,NALE 2.695
€ 24.50
16187B
161871156
ref: 16187B
(OPTION)
NEEDLE-JET,NALF
€ 24.50
16187C
161871157
ref: 16187C
(OPTION)
NEEDLE-JET,NALG 2.715
€ 24.50
16187D
161871158
ref: 16187D
(OPTION)
NEEDLE-JET,NALH 2.725
€ 28.00
16187E
161871159
ref: 16187E
(OPTION)
NEEDLE-JET,NAFD 2.685
€ 28.00
16187F
161871160
ref: 16187F
(OPTION)
NEEDLE-JET,NAFE 2.695
€ 24.50
16187G
161871161
ref: 16187G
NEEDLE-JET,NAFF 2.705
€ 24.50
16187H
161871162
ref: 16187H
(OPTION)
NEEDLE-JET,NAFG 2.715
€ 28.00
16187I
161871163
ref: 16187I
(OPTION)
NEEDLE-JET,NAFH 2.725
€ 28.00
21176
211761089
ref: 21176
SENSOR
€ 77.00
21188
211881005
ref: 21188
SOLENOID
€ 67.00
92009
920091781
ref: 92009
SCREW
€ 1.50
92009A
920091833
ref: 92009A
SCREW,CLAMP
€ 1.50
92009B
920091889
ref: 92009B
SCREW
920091889
€ 1.50
92036
92036018
ref: 92036
CIRCLIP
92036018
€ 2.50
92037
920371396
ref: 92037
CLAMP,TUBE
920371396
€ 3.50
92037A
920371401
ref: 92037A
CLAMP,JET NEEDLE
920371401
€ 2.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551167
ref: 92055A
RING-O,MAIN JET COVER
920551167
€ 6.50
92055B
920551580
ref: 92055B
RING-O
€ 1.50
92063
920631368
ref: 92063
(OPTION)
JET-MAIN,#160
920631368
€ 10.00
92063A
920631369
ref: 92063A
(OPTION)
JET-MAIN,#162
920631369
€ 9.50
92063B
920631370
ref: 92063B
JET-MAIN,#165
920631370
€ 9.50
92063C
920631371
ref: 92063C
(OPTION)
JET-MAIN,#168
920631371
€ 10.00
92063D
920631372
ref: 92063D
(OPTION)
JET-MAIN,#170
920631372
€ 9.50
92063E
920631374
ref: 92063E
(OPTION)
JET-MAIN,#175
920631374
€ 9.50
92064
920641130
ref: 92064
(OPTION)
JET-PILOT,#52
920641130
€ 11.00
92064A
920641144
ref: 92064A
(OPTION)
JET-PILOT
920641144
€ 11.00
92064B
920641145
ref: 92064B
JET-PILOT,#55
920641145
€ 11.50
92064C
920641146
ref: 92064C
(OPTION)
JET-PILOT,#58
920641146
€ 12.00
92064D
920641147
ref: 92064D
(OPTION)
JET-PILOT,#60
920641147
€ 12.50
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
920811555
€ 3.50
92143
921431201
ref: 92143
COLLAR,THROTTLE VALVE
921431201
€ 15.00
92145
921451242
ref: 92145
SPRING,THROTTLE VALVE
921451242
€ 13.00
92151
921511507
ref: 92151
BOLT
921511507
€ 2.00
92170
921701582
ref: 92170
CLAMP
921701582
€ 2.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
132G0620
€ 1.50
220
220D0414
ref: 220
SCREW-PAN-CROS
220D0414
€ 2.00
92171
921711077
ref: 92171
CLAMP
921711077
€ 3.50
92171A
921711105
ref: 92171A
CLAMP
921711105
€ 9.00
92191
921911254
ref: 92191
TUBE,4X7X480
921911254
€ 11.00
92191A
921911255
ref: 92191A
TUBE,AIR VENT
921911255
€ 11.50
92191B
921911256
ref: 92191B
TUBE,3.5X6.5X330
921911256
€ 7.00
92191C
921911332
ref: 92191C
TUBE,5.3X10.5X160
921911332
€ 4.00
92200
922001369
ref: 92200
WASHER
€ 2.50
92200A
922001466
ref: 92200A
WASHER
922001466
€ 1.50
