MUFFLER

KX250-B1 KX250 1982 USA CANADA

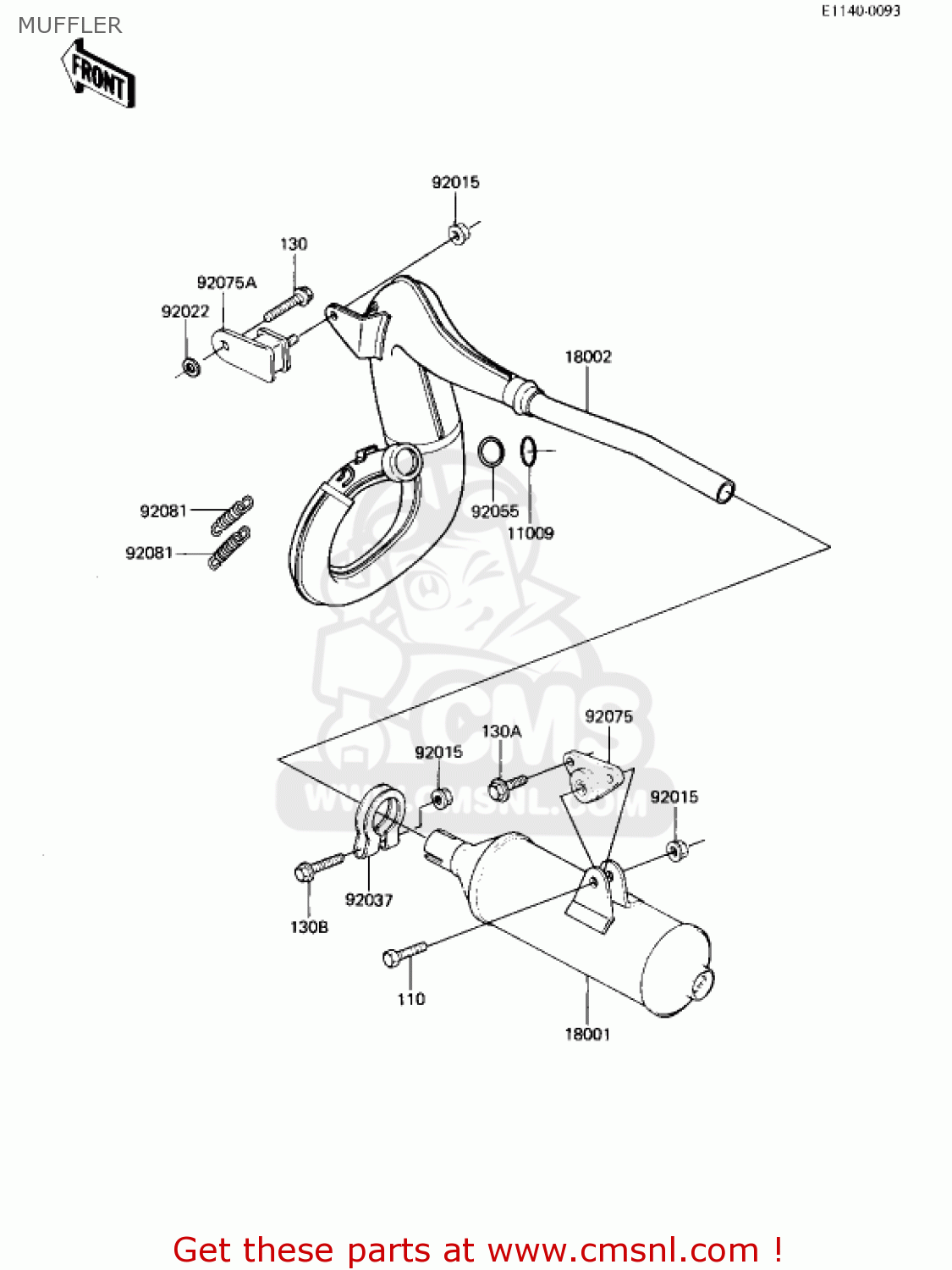

Muffler diagram KX250-B1 KX250 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091253
ref: 11009

GASKET,EXHAUST PIPE (NAS)

€ 7.50

18001

180011168
ref: 18001

MUFFLER,F.BLACK

€ 92.50

18002

180021199
ref: 18002

BODY-COMP-MUFFLER

€ 207.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022312
ref: 92022

WASHER,PLAIN

€ 3.00

92037

920371280
ref: 92037

CLAMP,MUFFLER

€ 6.00

92055

920551057
ref: 92055

RING-O,55MM,MUFFLER

€ 9.50

92075

920751046
ref: 92075

DAMPER RUBBER

€ 20.00

92075A

920751891
ref: 92075A

DAMPER,MUFFLER

€ 21.00

92081

920811452
ref: 92081

SPRING,MUFFLER

€ 5.50

110

112G0625
ref: 110

BOLT-UPSET,6X25

€ 4.00

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

130A

130G0616
ref: 130A

BOLT-FLANGED,6X16

€ 0.50

130B

130G0630
ref: 130B

BOLT, FLANGED, 6X30

€ 0.50

MUFFLER

all assemblies
