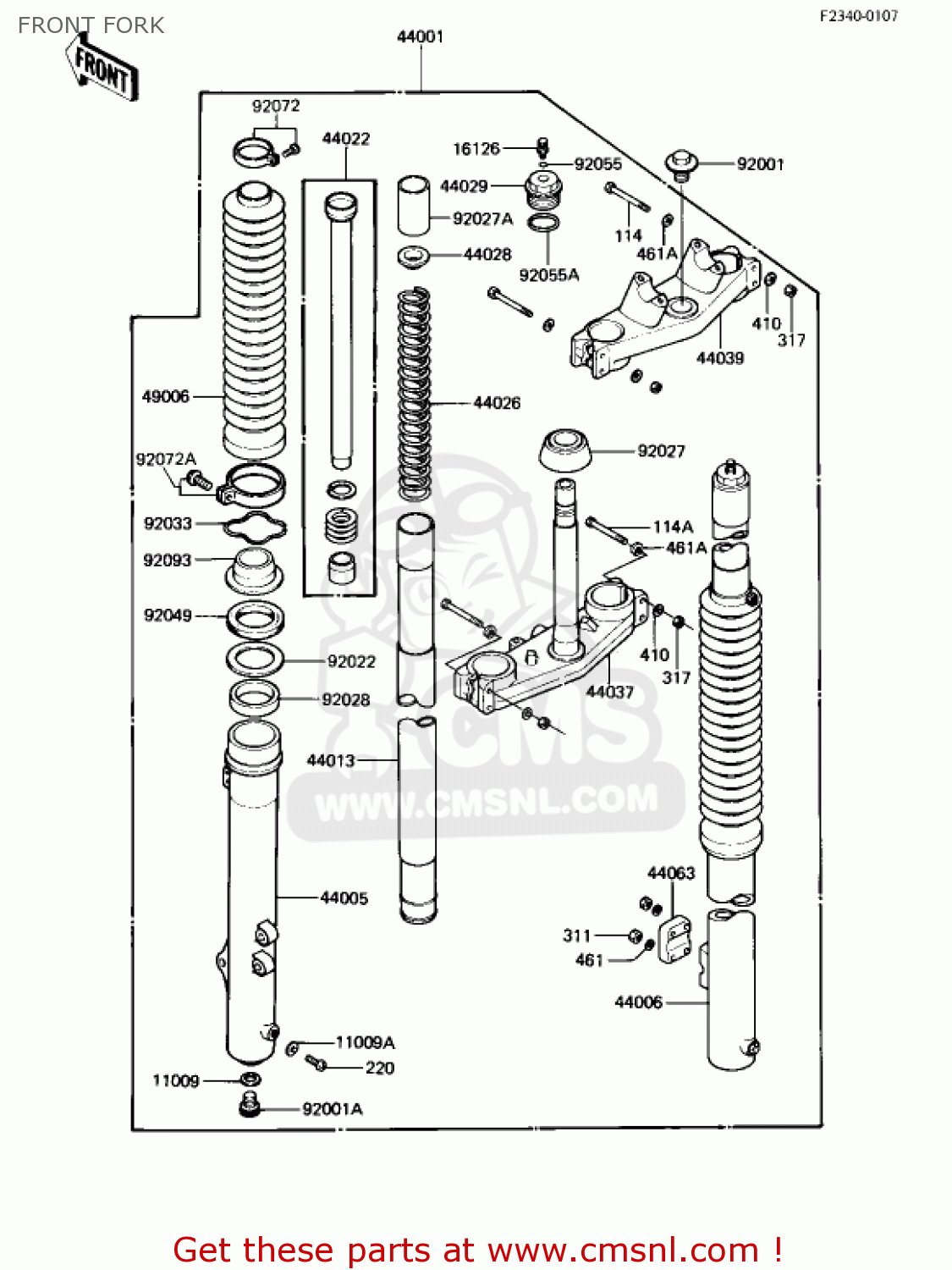

FRONT FORK

ref

part #

description

quantity

11009

110091553
ref: 11009

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

11009A

44045002
ref: 11009A

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

16126

161261048
ref: 16126

VALVE,AIR FRONT FORK

€ 11.50

44001

440011328
ref: 44001

FORK-FRONT

€ 1,070.00

44005

440051084
ref: 44005

PIPE-LEFT FORK OUTER

€ 213.00

44006

440061084
ref: 44006

PIPE-RIGHT FORK OUTER

€ 213.00

44013

440131082
ref: 44013

PIPE-FORK INNER

€ 161.50

44022

440221075
ref: 44022

CYLINDER-FORK

€ 50.00

44026

440261131
ref: 44026

SPRING-FRONT FORK

€ 24.50

44028

440281010
ref: 44028

GUIDE-FORK SPRING

€ 7.00

44029

440291031
ref: 44029

SEAT-FORK SPRING

€ 39.50

44037

440371084
ref: 44037

HOLDER-FORK UNDER

€ 274.00

44039

440391060
ref: 44039

HOLDER-FORK UPPER

€ 160.50

44063

440631008
ref: 44063

HOLDER-FRONT AXLE

€ 31.00

49006

490061081
ref: 49006

BOOT

€ 50.50

92001

920011520
ref: 92001

BOLT

€ 10.50

92001A

920011533
ref: 92001A

BOLT,FORK CYLINDER

€ 9.50

92022

920221299
ref: 92022

WASHER

€ 5.50

92027

920271427
ref: 92027

COLLAR,FRONT FORK

€ 41.50

92027A

920271449
ref: 92027A

COLLAR

€ 6.50

92028

920281145
ref: 92028

BUSHING

€ 19.00

92033

920331077
ref: 92033

RING-SNAP

€ 3.00

92049

920491295
ref: 92049

SEAL-OIL,FORK OUTER T

€ 13.50

92055

920551094
ref: 92055

0 RING,AIR VALVE

€ 1.00

92055A

920551123
ref: 92055A

RING-O

€ 4.00

92072

920721078
ref: 92072

BAND,BOOT

€ 7.00

92072A

920721081
ref: 92072A

BAND

€ 7.50

92093

920931086
ref: 92093

SEAL,FORK DUST

€ 12.50

114

114G0850
ref: 114

BOLT-HEX HEAD,8X50

€ 3.00

114A

114G0855
ref: 114A

BOLT,HEX HEAD,8X55

€ 4.50

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

317

317G0800
ref: 317

NUT-HEX-SMALL,8MM

€ 0.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50

all assemblies
