CARBURETOR
KX250-B1 KX250 1982 USA CANADA

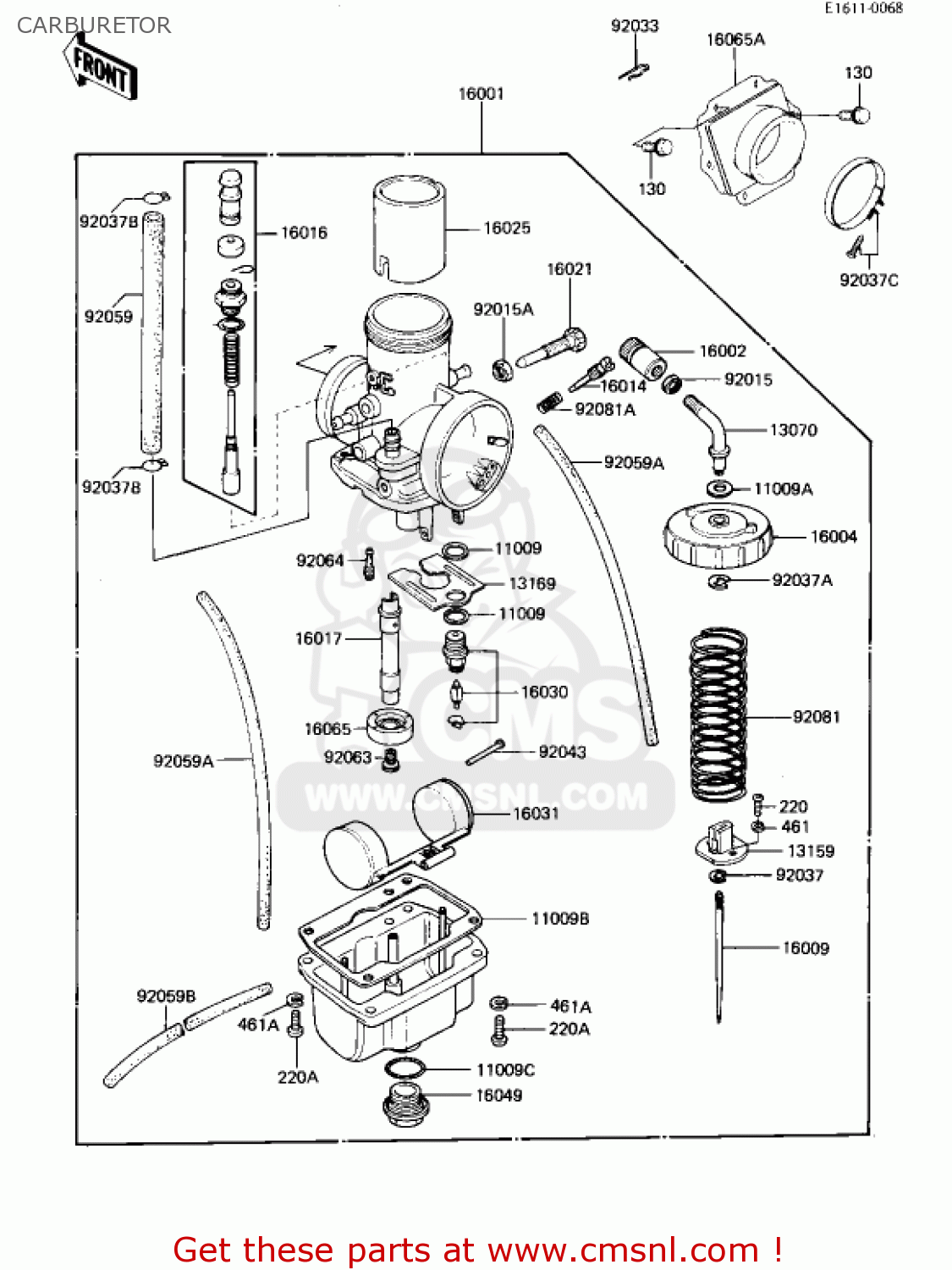

Carburetor diagram KX250-B1 KX250 1982 USA CANADA
CARBURETOR KX250-B1 KX250 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091076
ref: 11009
GASKET,FLOAT VALVE (NAS)
€ 2.00
11009A
110091191
ref: 11009A
GASKET,CABLE GUIDE (NAS)
€ 4.50
11009B
16019028
ref: 11009B
GASKET,FLOAT CHAMBER (NAS)
€ 11.50
11009C
16038009
ref: 11009C
GASKET,MAIN JET COVER
€ 5.50
13070
130701014
ref: 13070
GUIDE,CABLE
€ 24.50
13159
131591010
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13169
131691520
ref: 13169
PLATE,FLOAT CHAMBER
€ 7.50
16001
160011477
ref: 16001
CARBURETOR
€ 211.00
16002
160021006
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041010
ref: 16004
TOP,MIXING CHAMBER
€ 26.50
16009
160091116
ref: 16009
NEEDLE-JET,6I2
€ 24.50
16014
16014006
ref: 16014
SCREW-PILOT AIR
€ 9.00
16016
160161026
ref: 16016
PLUNGER,STARTER
€ 40.50
16017
160171111
ref: 16017
NEEDLE JET,R-8
€ 22.00
16021
160211030
ref: 16021
SCREW-THROTTLE STOP
€ 13.00
16025
160251071
ref: 16025
VALVE,THROTTLE,CA3.0
€ 73.50
16030
160301015
ref: 16030
VALVE-FLOAT,#3.0
€ 31.50
16031
16031030
ref: 16031
FLOAT
€ 36.00
16049
160491005
ref: 16049
COVER-MAIN JET
€ 12.50
16065
160651052
ref: 16065
HOLDER-CARBURETOR,NEE
€ 15.50
16065A
160651048
ref: 16065A
HOLDER-CARBURETOR
€ 43.00
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92015A
16003006
ref: 92015A
NUT-CABLE ADJUST LOCK
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
16008011
ref: 92037A
CLAMP,CABLE GUIDE
€ 4.50
92037B
92037056
ref: 92037B
CLAMP,FUEL TUBE
€ 3.00
92037C
92037116
ref: 92037C
CLAMP
€ 10.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591026
ref: 92059
HOSE,FUEL,6.5OX11.5O
€ 14.50
92059A
920591142
ref: 92059A
TUBE,3.5X6.5X410
€ 16.50
92059B
920591235
ref: 92059B
TUBE,3.5X6.5X300
€ 3.50
92063
920631020
ref: 92063
MAIN JET,#165R
€ 7.50
92064
920641018
ref: 92064
JET-PILOT,#A15
€ 13.00
92081
16006028
ref: 92081
SPRING,THROTTLE VALVE
€ 8.50
92081A
16022007
ref: 92081A
SPRING-THR STOP SCREW
€ 5.50
130
16022007
ref: 130
SPRING-THR STOP SCREW
€ 5.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
214B0516A
ref: 220A
UNAVAILABLE IN PRICE BOOK
€ 0.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
€ 0.50
