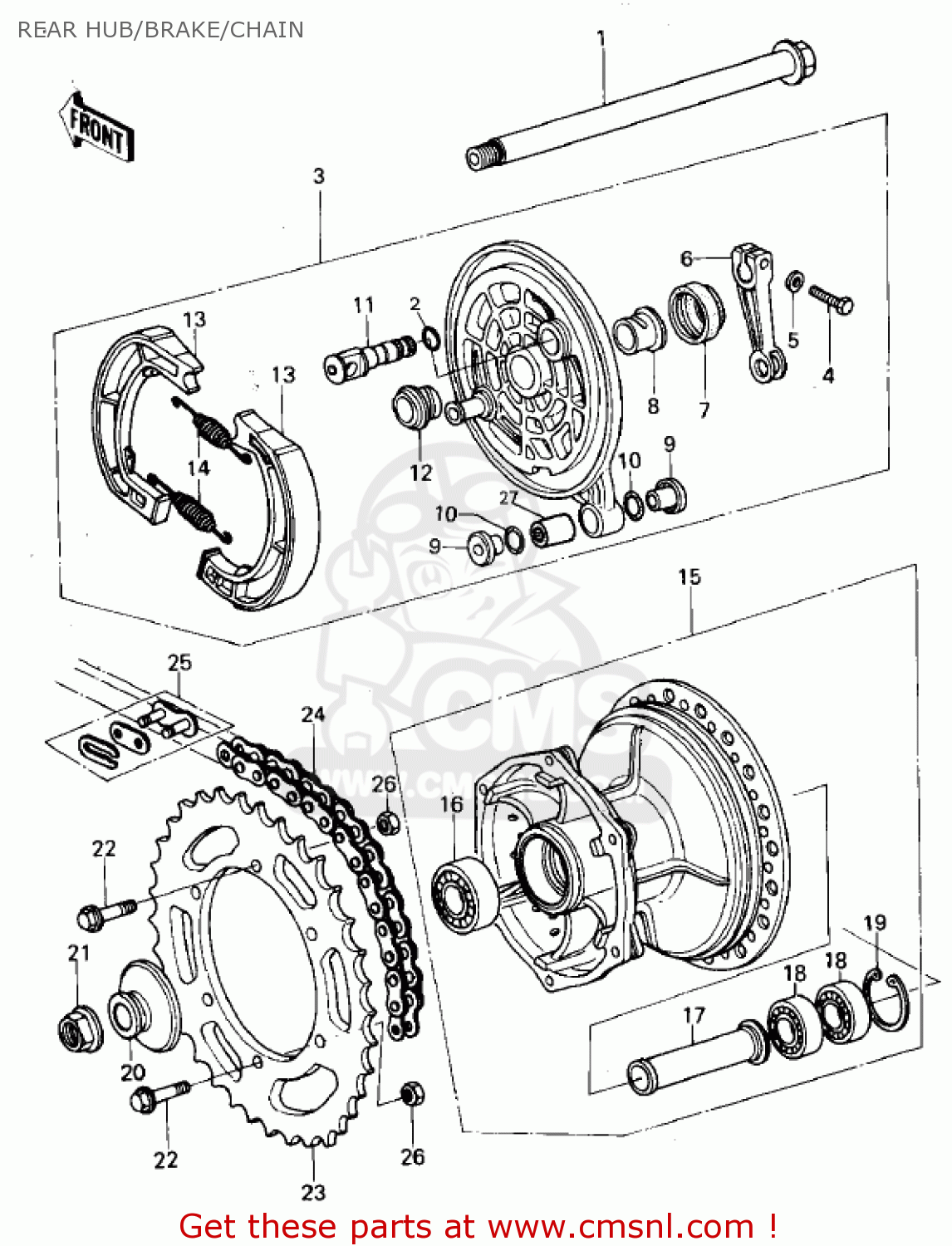

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

410681033
ref: 1
KX250-A6

AXLE,REAR

€ 37.00

1

410681059
ref: 1
KX250-A7

AXLE,REAR

€ 38.00

2

670B2015
ref: 2

O RING,15MM

€ 1.00

3

410354001
ref: 3

PANEL ASSY,RR BRAKE

€ 365.50

4

112G0622
ref: 4

BOLT-UPSET

€ 2.50

5

410B0600
ref: 5

WASHER-PLAIN-SMALL,6M

€ 0.50

6

410531004
ref: 6

LEVER-BRAKE CAM

€ 76.50

7

920931004
ref: 7

OIL SEAL

€ 3.50

8

420361035
ref: 8
R.H.

SLEEVE,RR PANEL,RH

€ 48.50

9

920271040
ref: 9

COLLAR,L=11.5

€ 12.50

10

670C2011
ref: 10

O RING,11MM

€ 1.00

11

410501002
ref: 11

CAM-BRAKE

€ 29.00

12

420361009
ref: 12
L.H.

SLEEVE,RR BRAKE PANEL

€ 39.50

13

42019011
ref: 13

SHOE,BRAKE (MCA)

€ 18.50

14

42020004
ref: 14

SPRING-BRAKE SHOE

€ 5.50

15

410341019
ref: 15

DRUM ASSY,RR BRAKE

€ 369.50

16

601B6204UU
ref: 16

BEARING-BALL,6204UUC3

€ 28.00

17

920271207
ref: 17

COLLAR,REAR DRUM

€ 36.00

18

601B6003U
ref: 18

BEARING-BALL,#6003UC3

€ 21.50

19

481J3500
ref: 19

CIRCLIP-TYPE-C,35MM

€ 1.00

20

920274005
ref: 20

COLLAR,RR AXLE

€ 14.50

21

920151015
ref: 21

NUT,16MM

€ 13.50

22

920011041
ref: 22

BOLT,HEX HEAD,8X36

€ 6.50

23

420411006
ref: 23
KX250-A6, OPTION FOR

REAR SPROCKET,50T

€ 74.50

23

420414001
ref: 23
KX250-A7, OPTION FOR

REAR SPROCKET,48T

€ 67.00

23

420414002
ref: 23
OPTION

REAR SPROCKET,46T

€ 75.00

24

920571317
ref: 24

CHAIN,DRIVE,DID520DSX

€ 103.50

25

920581002
ref: 25
DID520TR

JOINT,DRIVE CHAIN

€ 6.00

26

920151124
ref: 26
KX250-A6

NUT,LOCK,8MM

€ 3.50

26

920151134
ref: 26
KX250-A7

NUT,8MM

€ 3.50

27

920461009
ref: 27

BEARING-NEEDLE,HK1216

€ 14.50
