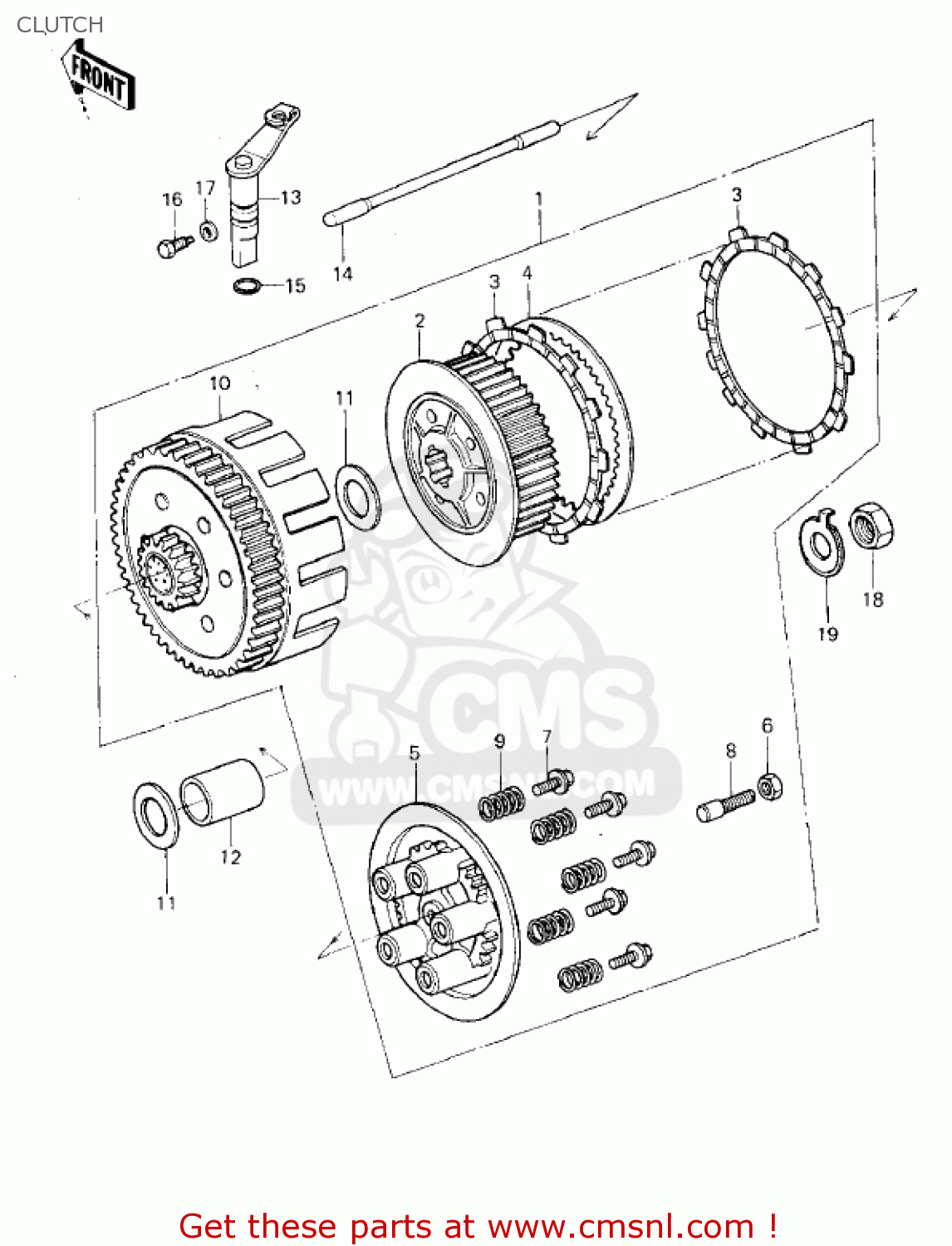

CLUTCH

ref

part #

description

quantity

1

130811038
ref: 1

CLUTCH ASSY

€ 380.50

2

13087044
ref: 2

HUB-CLUTCH

€ 70.50

3

13088041
ref: 3

PLATE,CLUTCH FRICTION (NAS)

€ 12.00

4

13089025
ref: 4

PLATE,CLUTCH STEEL (NAS)

€ 15.50

5

131871009
ref: 5

PLATE-CLUTCH OPERATIN

€ 41.50

6

318G0800
ref: 6
KX250-A6

NUT-HEX-SMALL,8MM

€ 1.00

6

920151124
ref: 6
KX250-A7

NUT,LOCK,8MM

€ 3.50

7

920011066
ref: 7

BOLT, CLUTCH SPR FITT

€ 4.00

8

92014017
ref: 8

SCREW,SLOTTED,8X35

€ 9.50

9

920811151
ref: 9

SPRING,CLUTCH

€ 5.00

10

130951026
ref: 10

HOUSING,CLUTCH

€ 240.00

11

92022282
ref: 11

WASHER,CLUTCH THRUST

€ 7.50

12

920281076
ref: 12

BUSHING,CLUTCH

€ 20.50

13

131021005
ref: 13
KX250-A6

LEVER ASSY,CLUTCH RLE

€ 20.00

13

131021006
ref: 13
KX250-A6

RELEASE-COMP-CLUTCH

€ 35.50

14

131161021
ref: 14

ROD,CLUTCH PUSH

€ 15.00

15

670B2012
ref: 15
KX250-A6

O RING,12MM

€ 1.00

15

670B2010
ref: 15
KX250-A7

O RING,10MM

€ 1.00

16

92003130
ref: 16

BOLT,CLUTCH RELEASE

€ 3.50

17

92065092
ref: 17

GASKET,R.H ENG COVER (NAS)

€ 2.50

18

92015072
ref: 18

NUT,LOCK,16MM

€ 4.50

19

92024076
ref: 19

WASHER,LOCK,16M/M

€ 2.50

all assemblies
