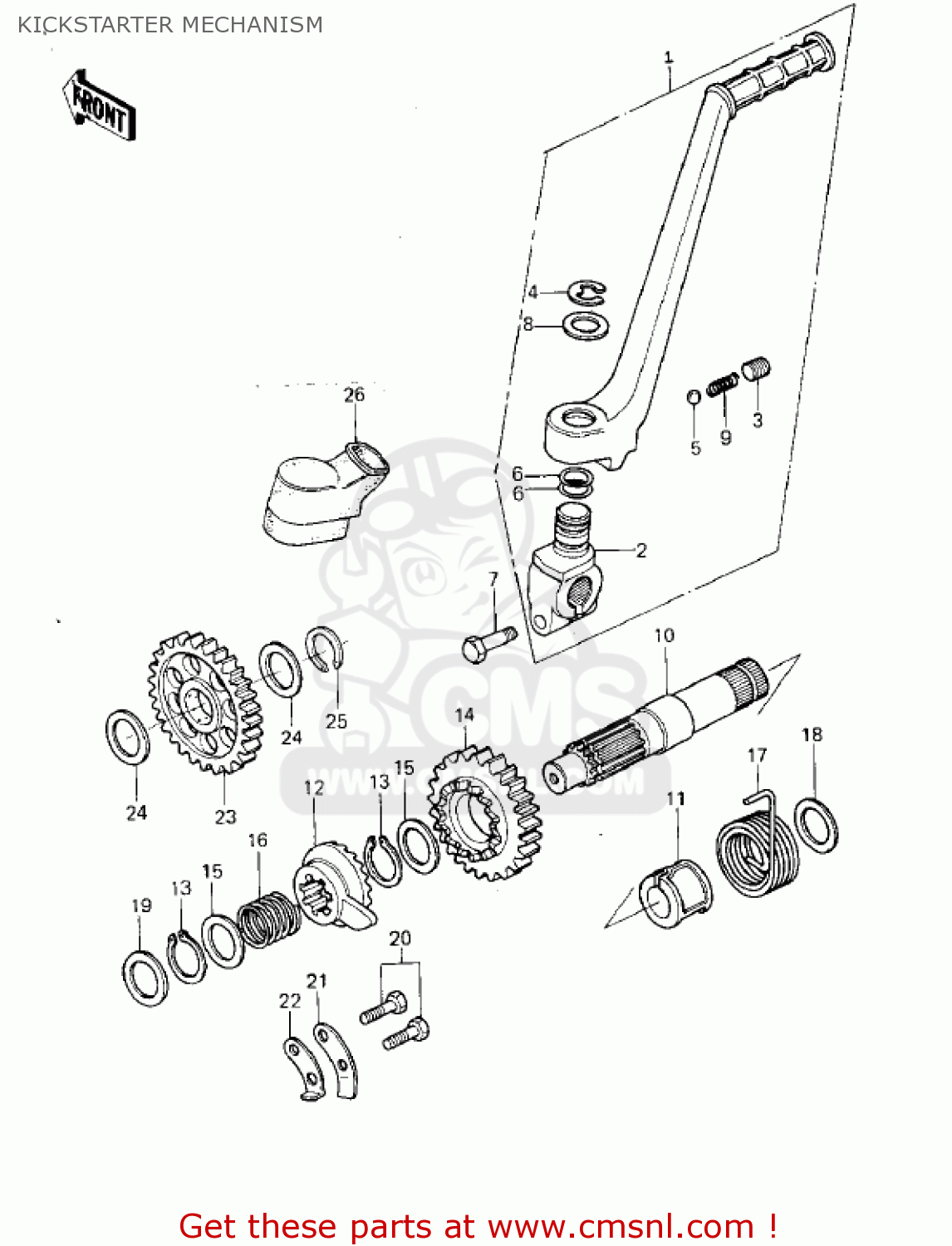

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

130645005
ref: 1
KX250-A6

LEVER-ASSY-KICK PEDAL

€ 166.00

1

130645003
ref: 1
KX250-A7

LEVER-ASSY-KICK,PEDAL

€ 166.00

2

130615001
ref: 2
KX250-A6

BOSS,KICK PEDAL

€ 41.00

2

130611007
ref: 2
KX250-A7

BOSS,KICK PEDAL

€ 65.50

3

290Q0808
ref: 3

SCREW,8X8

€ 2.50

4

482K0100
ref: 4

CIRCLIP-TYPE-E,10MM

€ 0.50

5

600A0800
ref: 5

BALL-STEEL,1/4

€ 0.50

6

670B2012
ref: 6
KX250-A6

O RING,12MM

€ 1.00

6

670B2015
ref: 6
KX250-A7

O RING,15MM

€ 1.00

7

920011042
ref: 7

BOLT,HEX HEAD,8X28

€ 4.00

8

920221019
ref: 8

WASHER,15.2X20X1

€ 3.50

9

92081020
ref: 9

SPRING-KICK PEDAL

€ 2.50

10

130661014
ref: 10

SHAFT,KICKSTARTER

€ 137.50

11

13070011
ref: 11

GUIDE,KICKSTARTER SPR

€ 6.50

12

130781052
ref: 12

RATCHET,KL250-D2

€ 50.50

13

480J1600
ref: 13

CIRCLIP-TYPE-C,16MM

€ 2.50

14

590511023
ref: 14

GEAR,KICKSTARTER,27T

€ 48.50

15

92022315
ref: 15

WASHER, 16.8X22X0.5

€ 4.00

16

92081122
ref: 16

SPRING,RATCHET

€ 6.00

17

920811253
ref: 17

SPRING,KICKSTARTER

€ 12.50

18

920261037
ref: 18

SPACER,17.2X23X0.5

€ 2.50

19

92022269
ref: 19

WASHER,PLAIN

€ 1.00

20

112G0618
ref: 20

BOLT-UPSET

€ 0.50

21

132061059
ref: 21

GUIDE-KICK

€ 7.00

22

320851016
ref: 22

STOPPER,KICKSTARTER

€ 5.50

23

590511022
ref: 23

GEAR-SPUR,30T

€ 72.50

24

92022252
ref: 24

WASHER

€ 4.00

25

92033029
ref: 25

CIRCLIP,18MM

€ 6.50

26

490061006
ref: 26
KX250-A7

BOOT,KICKSTARTER

€ 12.50
