SWINGARM
KX125-L3 KX125 2001 USA CANADA

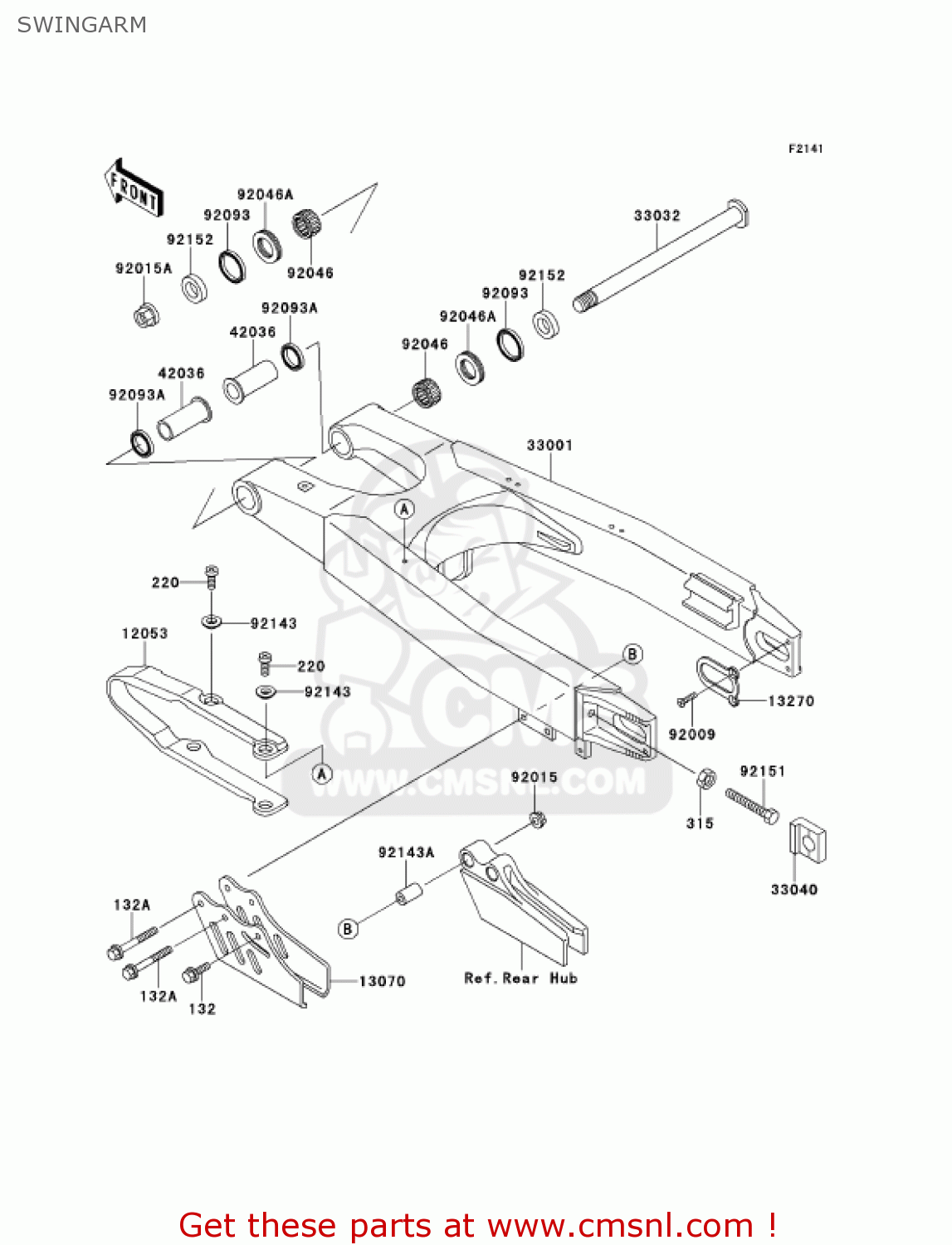

Swingarm diagram KX125-L3 KX125 2001 USA CANADA
SWINGARM KX125-L3 KX125 2001 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0650
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
315
315G1000
ref: 315
NUT-HEX-FINE,10MM
€ 1.00
12053
120531422
ref: 12053
GUIDE-CHAIN,DRIVE,FR
€ 51.00
13070
130701333
ref: 13070
GUIDE,DRIVE CHAIN GUI
€ 31.50
13270
132701636
ref: 13270
PLATE
€ 11.50
33001
330011575TX
ref: 33001
ARM-COMP-SWING,SILVER
€ 971.00
33032
330321189
ref: 33032
SHAFT-SWING ARM
€ 34.00
33040
330401156
ref: 33040
ADJUSTER-CHAIN
€ 13.00
42036
420361326
ref: 42036
SLEEVE,SWING ARM,L=54
€ 15.50
92009
920091828
ref: 92009
SCREW
€ 1.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151316
ref: 92015A
NUT,FLANGED,16MM
€ 16.50
92046
920461174
ref: 92046
BEARING-NEEDLE,TA2230
€ 37.50
92046A
920461240
ref: 92046A
BEARING-NEEDLE,NTBR22
€ 18.00
92093
920931434
ref: 92093
SEAL,SDO29X35X4.5
€ 6.00
92093A
920931435
ref: 92093A
SEAL,SDO22X29X5
€ 6.00
92143
921431676
ref: 92143
COLLAR
€ 4.00
92143A
921431867
ref: 92143A
COLLAR,6.5X14X24
€ 4.00
92151
921511397
ref: 92151
BOLT,10X55
€ 2.00
92152
921521137
ref: 92152
COLLAR,17.1X29X7.5
€ 5.00
