CYLINDER HEAD/CYLINDER

KX125-L3 KX125 2001 USA CANADA

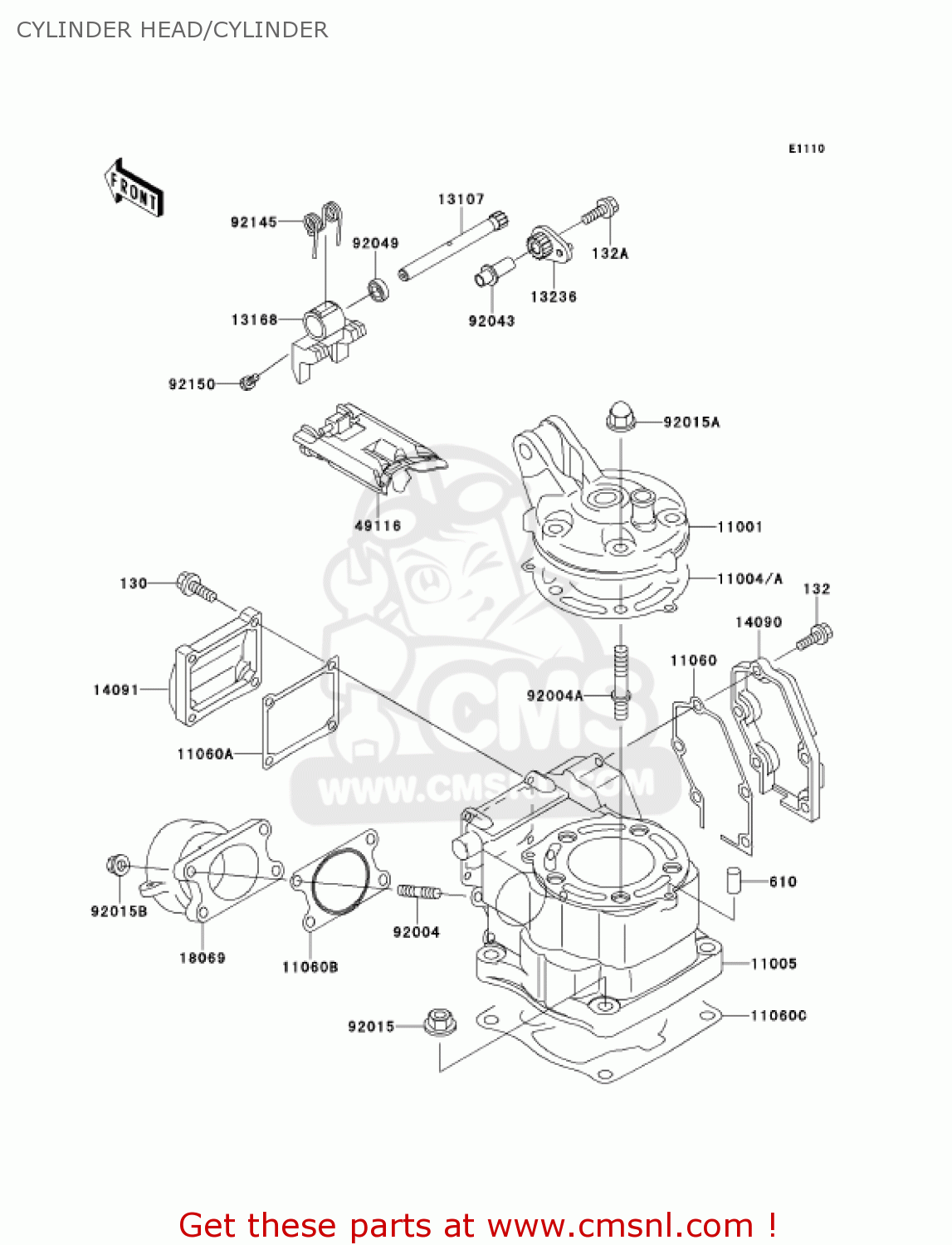

Cylinder head/cylinder diagram KX125-L3 KX125 2001 USA CANADA

CYLINDER HEAD/CYLINDER KX125-L3 KX125 2001 USA CANADA
CYLINDER HEAD/CYLINDER KX125-L3 KX125 2001 USA CANADA
CYLINDER HEAD/CYLINDER KX125-L3 KX125 2001 USA CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0525
ref: 130
BOLT-FLANGED
130G0525
€ 0.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132A
132G0635
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
610
610A0408
ref: 610
ROLLER,4X8
610A0408
€ 2.50
11001
110011554
ref: 11001
HEAD-CYLINDER
€ 97.50
11004
110041252
ref: 11004
(OPTION)
GASKET-HEAD,T=0.46 (NAS)
110041252
€ 24.00
11004A
110041300
ref: 11004A
GASKET-HEAD,T=0.26 (NAS)
110041300
€ 19.50
11005
110051939
ref: 11005
CYLINDER-ENGINE
€ 514.50
11060
110601789
ref: 11060
GASKET,RH COVER (NAS)
110601789
€ 5.50
11060A
110601876
ref: 11060A
GASKET,CENTER COVER (NAS)
110601876
€ 2.50
11060B
110601973
ref: 11060B
GASKET (NAS)
110601973
€ 8.50
11060C
110601998
ref: 11060C
GASKET,CYLINDER BASE (NAS)
110601998
€ 11.00
13107
131071399
ref: 13107
SHAFT,VALVE
€ 33.00
13168
131681662
ref: 13168
LEVER,VALVE
131681662
€ 69.50
13236
132361330
ref: 13236
LEVER-COMP
132361330
€ 27.50
14090
140901829
ref: 14090
COVER,RH
140901829
€ 11.00
14091
140911064
ref: 14091
COVER,CENTER
€ 9.50
18069
180691140
ref: 18069
HOLDER-EXHAUST PIPE
€ 31.50
49116
491161185
ref: 49116
VALVE-ASSY
€ 270.00
92004
920041154
ref: 92004
STUD,6X18
920041154
€ 3.50
92004A
920041236
ref: 92004A
STUD,8X28
920041236
€ 3.00
92015
920151143
ref: 92015
NUT,8MM
920151143
€ 0.50
92015A
920151151
ref: 92015A
NUT,CAP,8MM
920151151
€ 3.00
92015B
920151367
ref: 92015B
NUT,FLANGED,6MM
920151367
€ 0.50
92043
920431585
ref: 92043
PIN
€ 6.00
92049
920491238
ref: 92049
SEAL-OIL,SD088144
920491238
€ 8.50
92145
921451234
ref: 92145
SPRING
921451234
€ 3.00
92150
921501888
ref: 92150
BOLT,SOCKET,4X8
921501888
€ 2.00
