CARBURETOR
KX125-L3 KX125 2001 USA CANADA

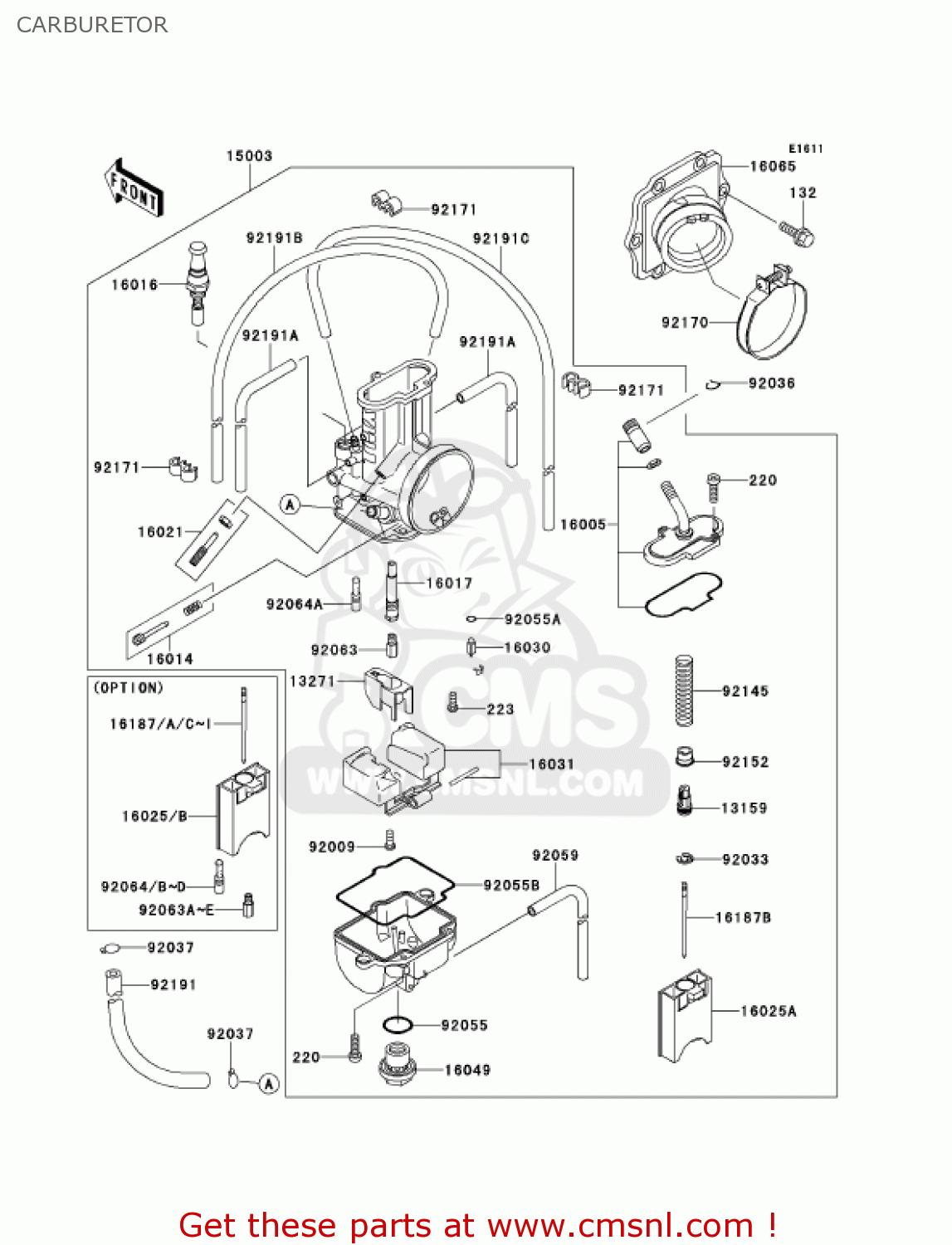

Carburetor diagram KX125-L3 KX125 2001 USA CANADA
CARBURETOR KX125-L3 KX125 2001 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13159
131591067
ref: 13159
CONNECTOR,THROTTLE CA
€ 14.00
13271
132711646
ref: 13271
PLATE,FLOAT
€ 19.50
15003
150031598
ref: 15003
CARBURETOR-ASSY
€ 640.00
16005
160051088
ref: 16005
TOP-CHAMBER
€ 43.50
16014
160141115
ref: 16014
SCREW-PILOT AIR
€ 17.50
16016
160161116
ref: 16016
PLUNGER
€ 28.50
16017
160171427
ref: 16017
JET-NEEDLE,S-4
€ 34.00
16021
160211237
ref: 16021
SCREW-THROTTLE STOP
€ 13.50
16025
160251221
ref: 16025
(OPTION)
VALVE-THROTTLE,CA5.0
€ 90.50
16025A
160251222
ref: 16025A
VALVE-THROTTLE,CA5.5
€ 80.00
16025B
160251223
ref: 16025B
(OPTION)
VALVE-THROTTLE,CA6.0
€ 86.00
16030
160301096
ref: 16030
VALVE-FLOAT
€ 44.50
16031
160311106
ref: 16031
FLOAT
€ 40.50
16049
160491052
ref: 16049
COVER-MAIN JET
€ 24.00
16065
160651373
ref: 16065
HOLDER-CARBURETOR
€ 72.00
16187
161871164
ref: 16187
(OPTION)
NEEDLE-JET,6BEF16-67
€ 28.00
16187A
161871165
ref: 16187A
(OPTION)
NEEDLE-JET,6BEF17-68
€ 26.50
16187B
161871166
ref: 16187B
NEEDLE-JET,6BEF16-69
€ 22.00
16187C
161871167
ref: 16187C
(OPTION)
NEEDLE-JET,6BEF16-70
€ 24.00
16187D
161871168
ref: 16187D
(OPTION)
NEEDLE-JET,6BEF16-71
€ 24.50
16187E
161871169
ref: 16187E
(OPTION)
NEEDLE-JET,6BEF17-67
€ 28.00
16187F
161871170
ref: 16187F
(OPTION)
NEEDLE-JET,6BEF16-68
€ 28.00
16187G
161871171
ref: 16187G
(OPTION)
NEEDLE-JET,6BEF17-69
€ 24.50
16187H
161871172
ref: 16187H
(OPTION)
NEEDLE-JET,6BEF17-70
€ 28.00
16187I
161871173
ref: 16187I
(OPTION)
NEEDLE-JET,6BEF17-71
€ 28.00
92009
920091853
ref: 92009
SCREW,FLOAT VALVE
€ 3.00
92033
920331299
ref: 92033
RING-SNAP
€ 1.50
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
920551061
ref: 92055
ORING,MAIN JET COVR
€ 5.50
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
220
220D0412
ref: 220
SCREW-PAN-CROSS,4X12
€ 0.50
223
223B0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
92055A
920551105
ref: 92055A
RING-0
€ 3.00
92055B
920551659
ref: 92055B
RING-O,FLOAT CHAMBER
€ 2.00
92059
920591490
ref: 92059
TUBE,3X5X400
€ 5.50
92063
92063032
ref: 92063
JET-MAIN,#360
€ 14.00
92063A
92063033
ref: 92063A
(OPTION)
JET-MAIN,#370
€ 11.50
92063B
92063034
ref: 92063B
(OPTION)
JET-MAIN,#380
€ 10.50
92063C
92063049
ref: 92063C
(OPTION)
JET-MAIN,#340
€ 10.50
92063D
92063050
ref: 92063D
(OPTION)
JET-MAIN,#350
€ 8.00
92063E
920631472
ref: 92063E
(OPTION)
JET-MAIN,#410
€ 11.50
92064
920641218
ref: 92064
(OPTION)
JET-PILOT,#45
€ 13.50
92064A
920641220
ref: 92064A
JET-PILOT,#50
€ 13.50
92064B
920641222
ref: 92064B
(OPTION)
JET-PILOT,#55
€ 13.00
92064C
920641227
ref: 92064C
(OPTION)
JET-PILOT,#47.5
€ 14.00
92064D
920641228
ref: 92064D
(OPTION)
JET-PILOT,#52.5
€ 13.50
92145
921451401
ref: 92145
SPRING,THROTTLE VALVE
€ 2.50
92152
921521305
ref: 92152
COLLAR,THROTTLE VALVE
€ 17.50
92170
921701686
ref: 92170
CLAMP
€ 9.00
92171
921711355
ref: 92171
CLAMP
€ 14.50
92191
921911532
ref: 92191
TUBE,5.8X10.8X165
€ 3.50
92191A
921911604
ref: 92191A
TUBE,3.5X6.5X450
€ 4.50
92191B
921911606
ref: 92191B
TUBE,3.5X6.5X650
€ 4.50
92191C
921911607
ref: 92191C
TUBE,3.5X6.5X630
€ 7.00
