KICKSTARTER MECHANISM
KX125-H2 1991 USA CANADA

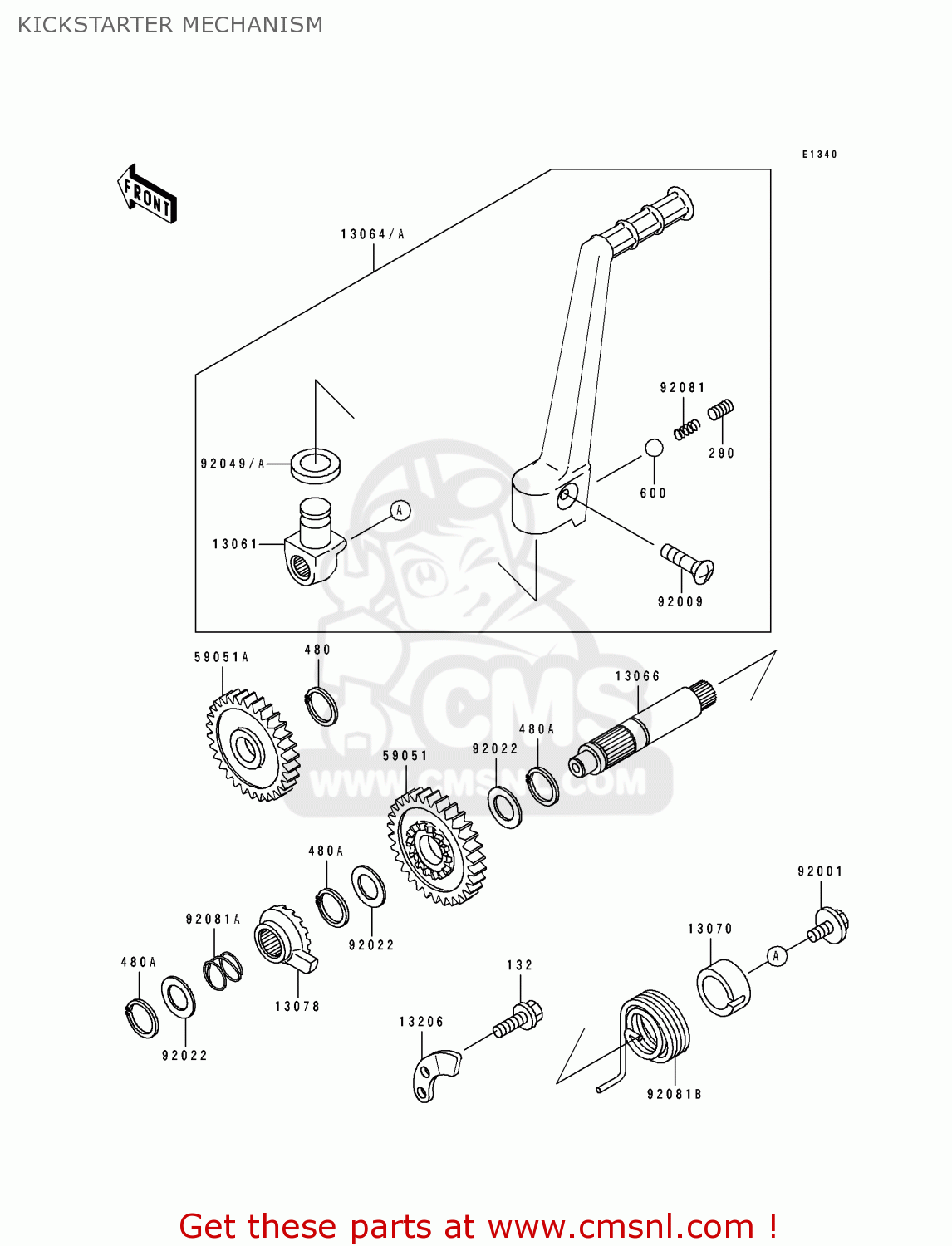

Kickstarter mechanism diagram KX125-H2 1991 USA CANADA
KICKSTARTER MECHANISM KX125-H2 1991 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
290
290Q0808
ref: 290
SCREW,8X8
€ 2.50
480
480J1500
ref: 480
CIRCLIP-TYPE-C,15MM
€ 1.00
480A
480J1600
ref: 480A
CIRCLIP-TYPE-C,16MM
€ 2.50
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130611315
ref: 13061
BOSS,KICK PEDAL
€ 44.00
13064A
130641156
ref: 13064A
LEVER-ASSY-KICK,PEDAL
€ 177.00
13066
130661019
ref: 13066
SHAFT-KICK,STARTER
€ 68.00
13070
130701007
ref: 13070
GUIDE,KICK SPRING
€ 6.50
13078
130781052
ref: 13078
RATCHET,KL250-D2
€ 50.50
13206
132061059
ref: 13206
GUIDE-KICK
€ 7.00
59051
590511125
ref: 59051
GEAR-SPUR,KICKSTARTER
€ 55.50
59051A
590511191
ref: 59051A
GEAR-SPUR,IDLE,31T
€ 52.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92009
920091607
ref: 92009
SCREW,6X27
€ 5.50
92022
92022315
ref: 92022
WASHER, 16.8X22X0.5
€ 4.00
92049A
920491387
ref: 92049A
SEAL-OIL
€ 4.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
€ 6.00
92081B
920811768
ref: 92081B
SPRING,KICKSTARTER
€ 11.00
