CRANKCASE

KX125-H2 1991 USA CANADA

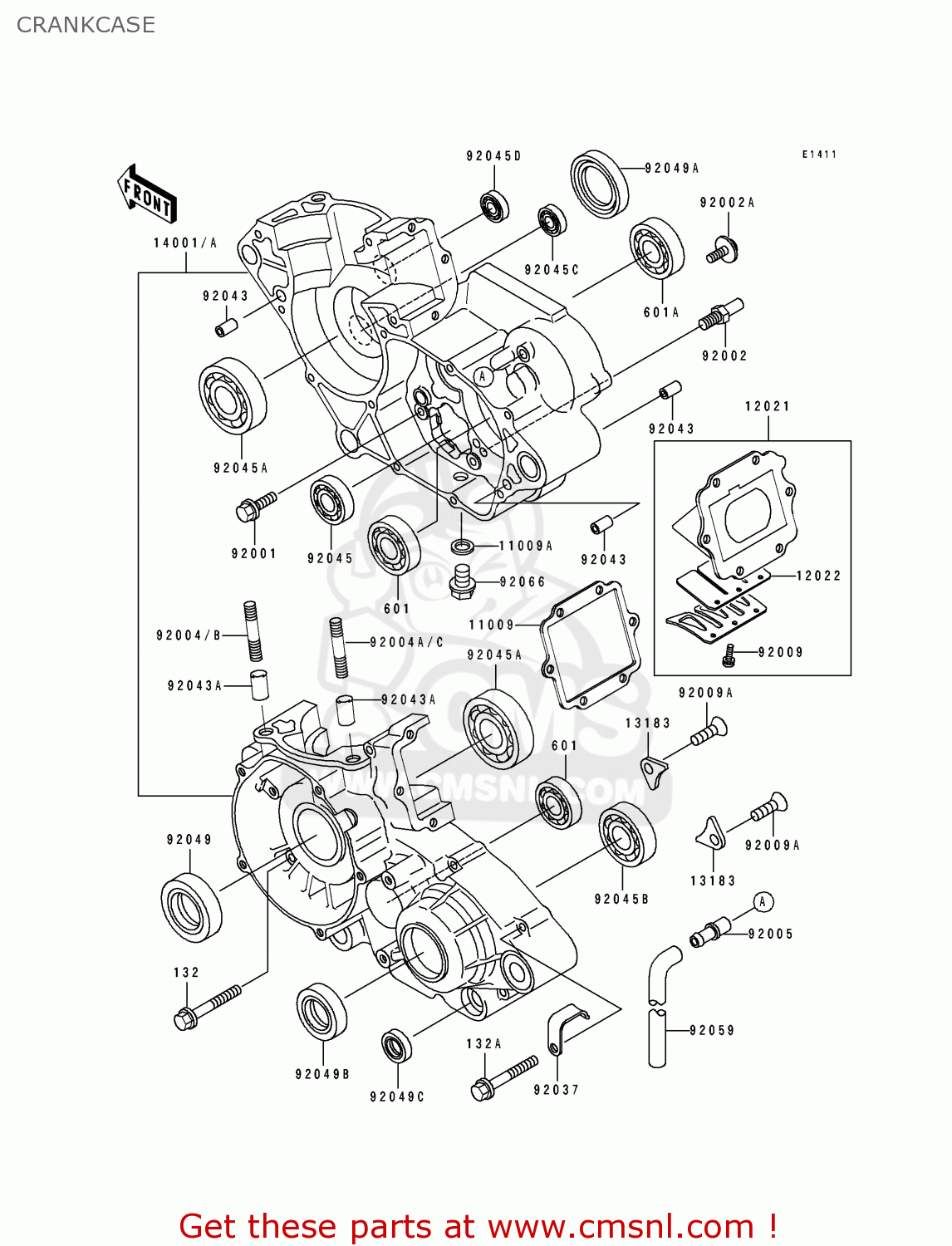

Crankcase diagram KX125-H2 1991 USA CANADA

CRANKCASE KX125-H2 1991 USA CANADA
CRANKCASE KX125-H2 1991 USA CANADA
CRANKCASE KX125-H2 1991 USA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0640
ref: 132
BOLT-FLANGED-SMALL
132G0640
€ 2.50
132A
132G0650
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
601
601B6202
ref: 601
BEARING-BALL,#6202C3
601B6202
€ 14.50
601A
601B6303
ref: 601A
BEARING-BALL,#6303C3
601B6303
€ 24.00
11009
110091941
ref: 11009
GASKET,REED VALVE (NAS)
110091941
€ 6.00
11009A
92065058
ref: 11009A
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
12021
120211085
ref: 12021
VALVE-ASSY-REED
€ 159.00
12022
120221065
ref: 12022
VALVE-REED
120221065
€ 52.50
13183
131831182
ref: 13183
PLATE
131831182
€ 3.00
14001A
140015284
ref: 14001A
SET-CRANKCASE
€ 407.00
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
920011829
€ 2.50
92002
920021601
ref: 92002
BOLT,8X15
920021601
€ 5.00
92002A
920021659
ref: 92002A
BOLT
920021659
€ 3.00
92004B
920041201
ref: 92004B
STUD
920041201
€ 4.00
92004C
920041207
ref: 92004C
STUD,8X36
€ 3.50
92005
920051210
ref: 92005
FITTING,BREATHER
920051210
€ 8.50
92009
920091014
ref: 92009
SCREW,REED VALVE
920091014
€ 2.00
92009A
920091563
ref: 92009A
SCREW,6X10
920091563
€ 2.50
92037
920371318
ref: 92037
CLAMP,HARNESS
920371318
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92043A
920431264
ref: 92043A
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92045
92045036
ref: 92045
BEARING-BALL,#6905
92045036
€ 29.00
92045A
920451209
ref: 92045A
BEARING-BALL
920451209
€ 32.50
92045B
920451210
ref: 92045B
BEARING-BALL
920451210
€ 14.50
92045C
920451211
ref: 92045C
BEARING-BALL
920451211
€ 11.00
92045D
920451212
ref: 92045D
BEARING-BALL
920451212
€ 11.50
92049
920491300
ref: 92049
SEAL-OIL
920491300
€ 10.50
92049A
920491301
ref: 92049A
SEAL-OIL
920491301
€ 13.50
92049B
92050013
ref: 92049B
OIL SEAL SC25376
92050013
€ 9.50
92049C
92051005A
ref: 92049C
OIL SEAL,TB13225.5
92051005A
€ 5.50
92059
920591265
ref: 92059
TUBE,5X9X350
920591265
€ 7.00
92066
920661241
ref: 92066
PLUG
920661241
€ 4.00
