CRANKSHAFT/PISTON(KX125-H2)
KX125-H2 1991 USA CANADA

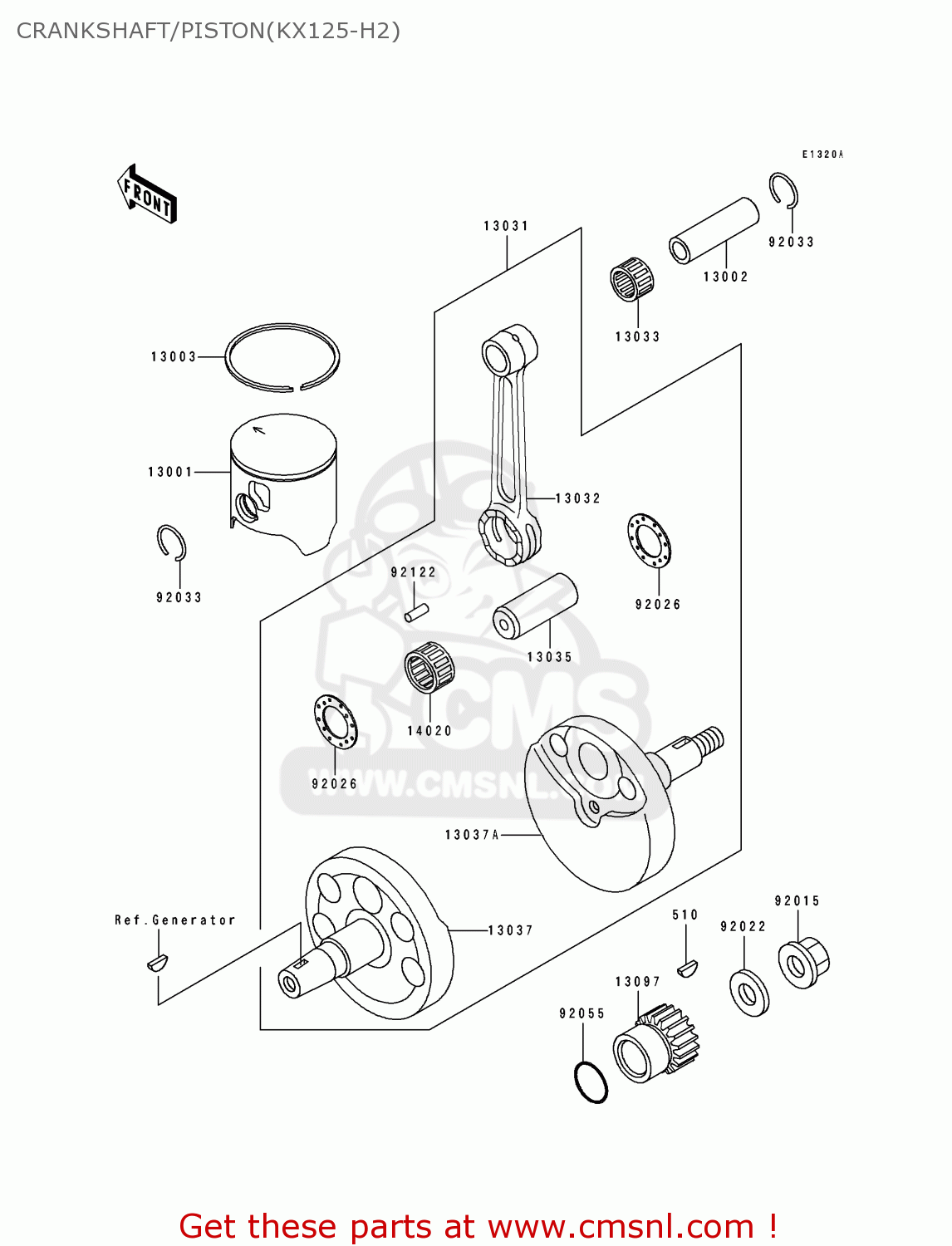

Crankshaft/piston(kx125-h2) diagram KX125-H2 1991 USA CANADA
CRANKSHAFT/PISTON(KX125-H2) KX125-H2 1991 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
510
510A5100
ref: 510
KEY-WOODRUFF
€ 1.50
13001
130011341
ref: 13001
PISTON-ENGINE
€ 60.00
13002
130021066
ref: 13002
PIN-PISTON
€ 18.00
13003
130031315
ref: 13003
RING-PISTON TOP
€ 19.50
13031
130311319
ref: 13031
CRANKSHAFT-COMP
€ 333.00
13032
130321146
ref: 13032
ROD-CONNECTING
€ 50.50
13033
130331056
ref: 13033
BEARING-SMALL END
€ 24.00
13035
130351010
ref: 13035
PIN-CRANK
€ 33.00
13037
130371373
ref: 13037
CRANKSHAFT,LH
€ 149.50
13037A
130371374
ref: 13037A
CRANKSHAFT,RH
€ 173.00
13097
130971203
ref: 13097
GEAR-PRIMARY SPUR,18T
€ 47.50
14020
140201068
ref: 14020
RETAINER
€ 35.50
92015
920151156
ref: 92015
NUT,12MM
€ 4.50
92022
920221831
ref: 92022
WASHER
€ 3.50
92026
920261136
ref: 92026
SPACER,22.2X37X1.0
€ 5.50
92033
920331242
ref: 92033
RING-SNAP,PISTON PIN
€ 2.50
92055
92055086
ref: 92055
RING-O
€ 2.50
92122
921221148
ref: 92122
ROLLER,B-4
€ 1.50
