FUEL TANK

KX125-E1 KX125 1986 USA CANADA

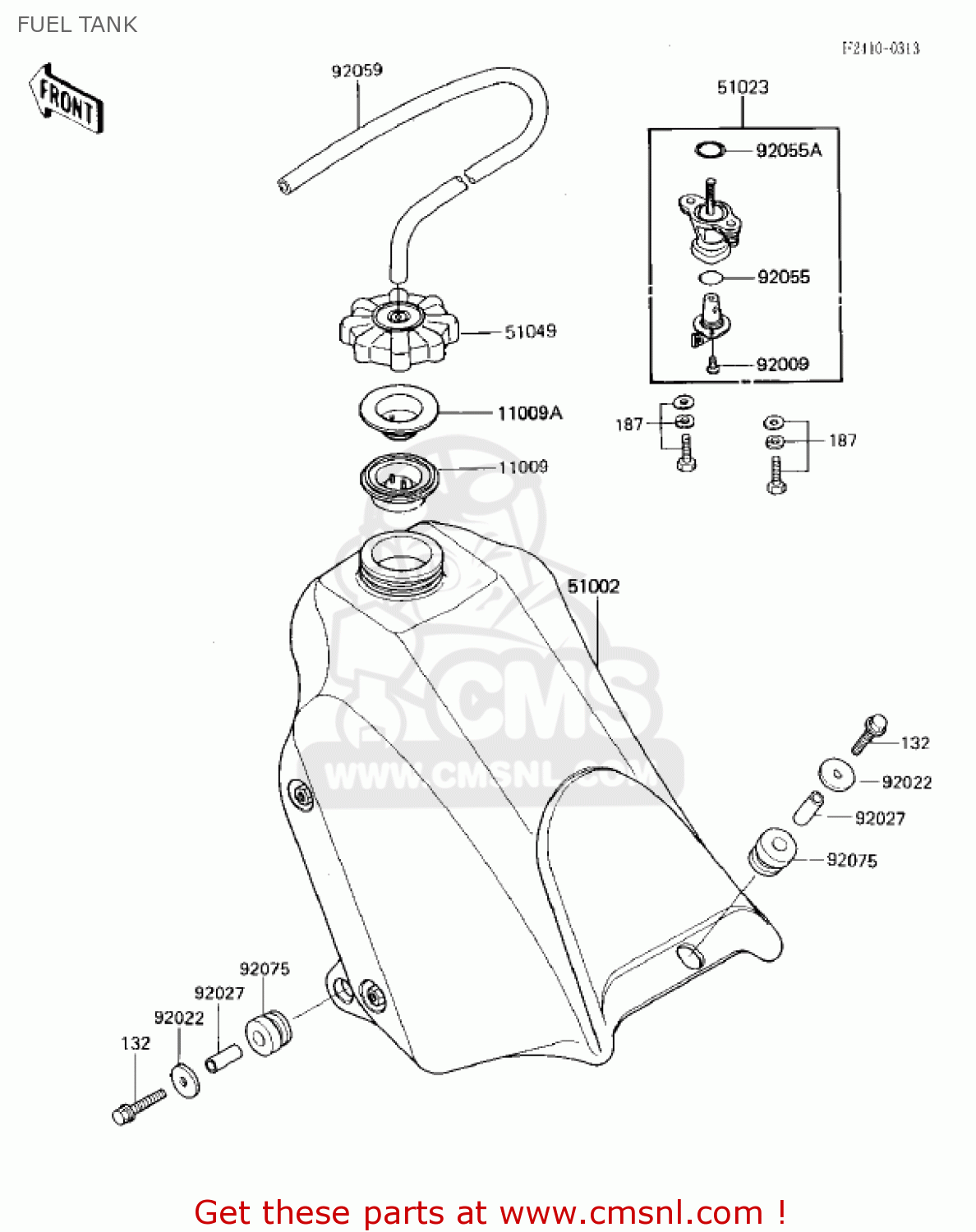

Fuel tank diagram KX125-E1 KX125 1986 USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091452
ref: 11009

GASKET,FUEL TANK CAP (NAS)

€ 15.00

11009A

110091514
ref: 11009A

GASKET,FUEL TANK CAP (NAS)

€ 6.50

51002

5100353976W
ref: 51002

TANK-COMP-FUEL,L.GREE

€ 256.00

51023

510231115
ref: 51023

TAP-ASSY,FUEL

€ 37.00

51049

510491006
ref: 51049

CAP-TANK,FUEL

€ 21.50

92009

220E0308
ref: 92009

SCREW-PAN-CROS,3X8

€ 2.00

92022

920221690
ref: 92022

WASHER

€ 2.50

92027

920271966
ref: 92027

COLLAR,6.8X10X14

€ 3.00

92055

920551299
ref: 92055

RING-O

€ 1.00

92055A

920551300
ref: 92055A

RING-O,FUEL TAP PACKI

€ 5.00

92059

920591265
ref: 92059

TUBE,5X9X350

€ 7.00

92075

920751787
ref: 92075

DAMPER

€ 4.00

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

187

187B0616
ref: 187

BOLT-UPSET-WSP

€ 0.50
