CARBURETOR
KX125-E1 KX125 1986 USA CANADA

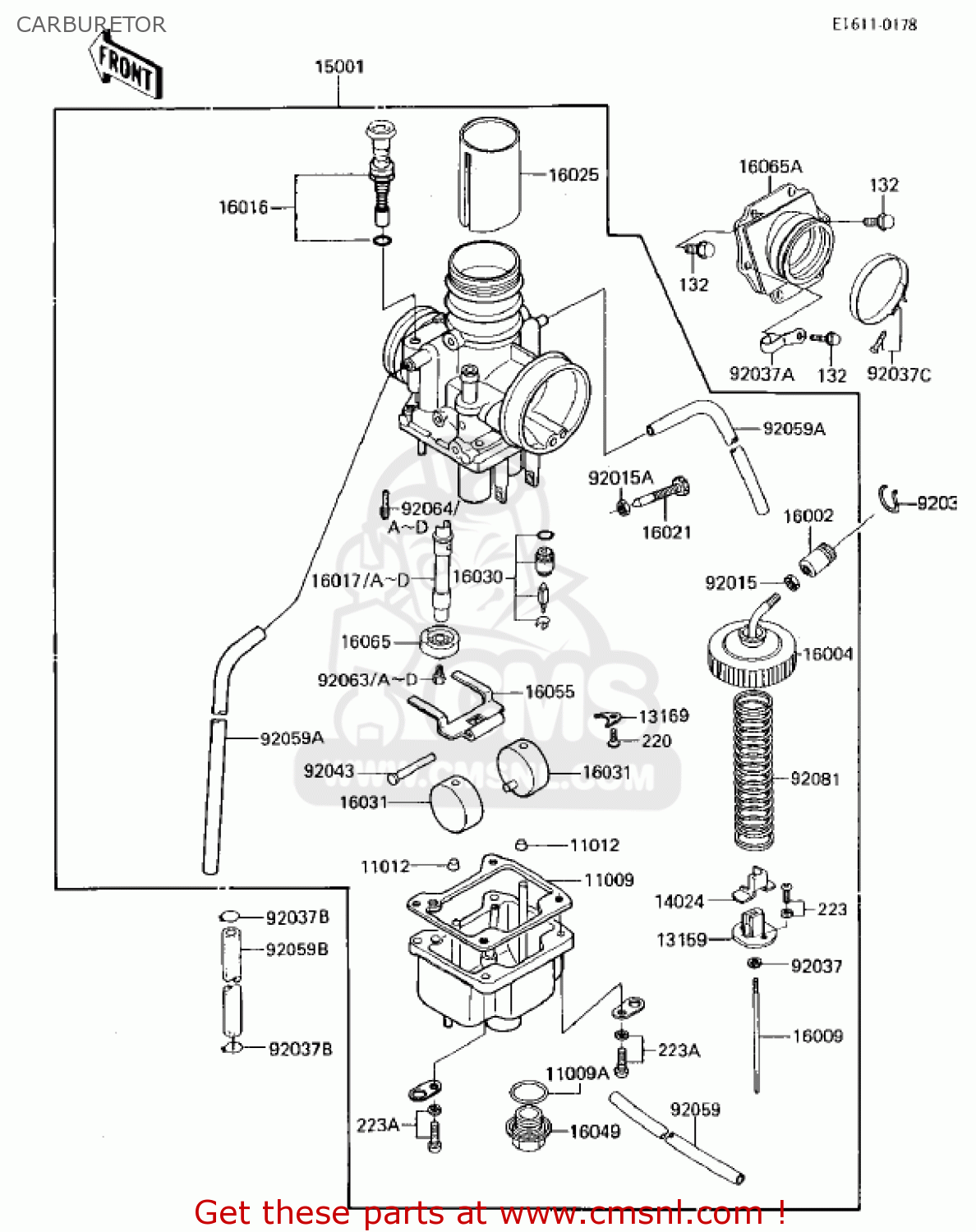

Carburetor diagram KX125-E1 KX125 1986 USA CANADA
CARBURETOR KX125-E1 KX125 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091275
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
11009A
16038009
ref: 11009A
GASKET,MAIN JET COVER
€ 5.50
11012
110121047
ref: 11012
CAP,FLOAT
€ 3.50
13159
131591010
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
14024
140251113
ref: 14024
COVER,THROTTLE VALVE
€ 6.00
15001
150011204
ref: 15001
CARBURETOR-ASSY
€ 246.50
16002
160021006
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041013
ref: 16004
CAP-CHAMBER,MIXING
€ 34.00
16009
160091300
ref: 16009
NEEDLE-JET,6J7-3
€ 21.00
16016
160161013
ref: 16016
PLUNGER,STARTER
€ 24.50
16017
160171125
ref: 16017
(OPTION)
JET-NEEDLE,S-2
€ 21.00
16017A
160171212
ref: 16017A
(OPTION)
JET-NEEDLE,R-4
€ 26.50
16017B
160171213
ref: 16017B
(OPTION)
JET-NEEDLE,R-6
€ 25.00
16017C
160171245
ref: 16017C
(OPTION)
JET-NEEDLE,S-O
€ 18.00
16017D
160171246
ref: 16017D
JET-NEEDLE,R-8
€ 16.50
16021
160211108
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251114
ref: 16025
VALVE-THROTTLE,CA.3.0
€ 112.50
16030
160301020
ref: 16030
VALVE-FLOAT,3.3
€ 33.00
16031
16031029
ref: 16031
FLOAT
€ 40.00
16049
16049006
ref: 16049
COVER-MAIN JET
€ 10.50
16055
16055009
ref: 16055
ARM-FLOAT
€ 12.50
16065
160651045
ref: 16065
HOLDER-CARBURETOR,NEE
€ 40.50
16065A
160651139
ref: 16065A
HOLDER-CARBURETOR
€ 47.50
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92015A
16003006
ref: 92015A
NUT-CABLE ADJUST LOCK
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037016
ref: 92037A
CLAMP,WIRING HARNESS
€ 1.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371484
ref: 92037C
CLAMP,CARBURETOR HOLD
€ 7.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591211
ref: 92059
TUBE,3.5X6.5X350
€ 7.00
92059A
920591292
ref: 92059A
TUBE,4X7X400,OVERFLOW
€ 5.50
92059B
920591673
ref: 92059B
TUBE,5.8X10.8X160
€ 7.50
92063
92063032
ref: 92063
(OPTION)
JET-MAIN,#360
€ 14.00
92063A
92063047
ref: 92063A
(OPTION)
JET-MAIN,#320
€ 8.50
92063B
92063048
ref: 92063B
(OPTION)
JET-MAIN,#330
€ 12.50
92063C
92063049
ref: 92063C
JET-MAIN,#340
€ 10.50
92063D
92063050
ref: 92063D
(OPTION)
JET-MAIN,#350
€ 8.00
92064
92064022
ref: 92064
(OPTION)
PILOT JET #30 ISO
€ 11.50
92064A
92064023
ref: 92064A
JET-PILOT,#35
€ 13.00
92064B
92064024
ref: 92064B
(OPTION)
JET-PILOT,#40
€ 14.00
92064C
92064044
ref: 92064C
(OPTION)
JET-PILOT,#45
€ 13.00
92064D
920641033
ref: 92064D
(OPTION)
JET-PILOT,#27.5
€ 11.50
92081
920811432
ref: 92081
SPRING,THROTTLE VALVE
€ 9.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
223
223B0308
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223B0518
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
