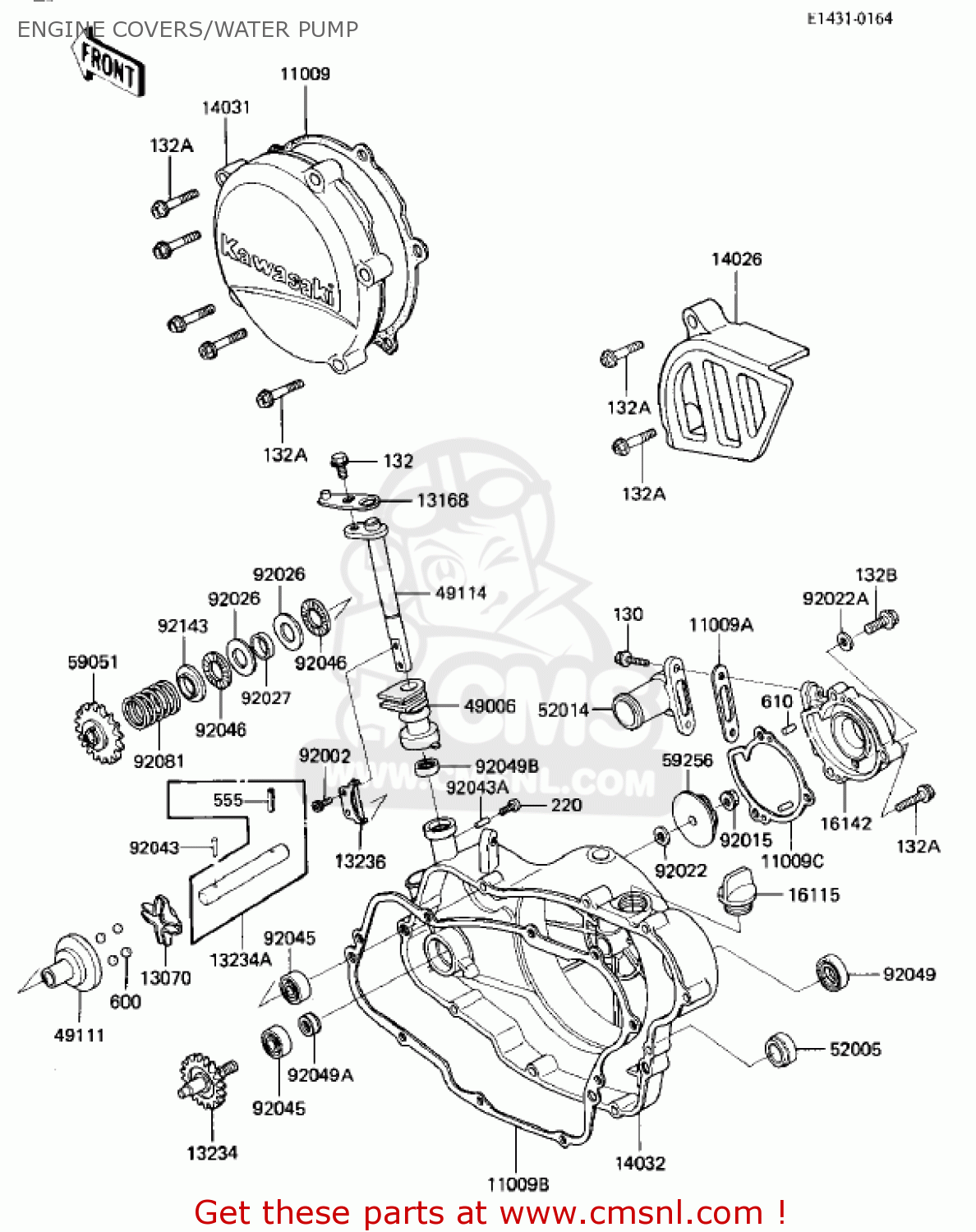

ENGINE COVERS/WATER PUMP

ref

part #

description

quantity

11009

110091266
ref: 11009

GASKET,GENERATOR COVE (MCA)

€ 6.00

11009A

110091952
ref: 11009A

GASKET,ELBOW (NAS)

€ 3.50

11009B

110091453
ref: 11009B

GASKET,CLUTCH COVER (MCA)

€ 17.50

11009C

110091998
ref: 11009C

GASKET,WATER PUMP COV (MCA)

€ 6.00

13070

130701122
ref: 13070

GUIDE

€ 45.50

13168

131681248
ref: 13168

LEVER,GOVERNOR

€ 7.00

13234

132341053
ref: 13234

SHAFT-COMP,WATER PUMP

€ 39.00

13234A

132341059
ref: 13234A

SHAFT-COMP,GOVERNOR

€ 12.50

13236

132361182
ref: 13236

LEVER-COMP,GOVERNOR

€ 7.00

14026

140261119
ref: 14026

COVER-CHAIN

€ 12.50

14031

140311074
ref: 14031

COVER-GENERATOR

€ 81.50

14032

140321177
ref: 14032

COVER-CLUTCH

€ 247.50

16115

16115018
ref: 16115

PLUG,OIL FILLER

€ 7.00

16142

161421058
ref: 16142

COVER-PUMP,WATER

€ 124.50

49006

490061171
ref: 49006

BOOT,GOVERNOR

€ 10.50

49111

491111051
ref: 49111

HOLDER-GOVERNOR WEIGH

€ 44.00

49114

491141051
ref: 49114

SHAFT-GOVERNOR

€ 30.50

52005

520051055
ref: 52005

GAUGE,OIL LEVEL

€ 10.50

52014

520145001
ref: 52014

ELBOW

€ 28.00

59051

590511126
ref: 59051

GEAR-SPUR,GOVERNOR

€ 23.50

59256

592561002
ref: 59256

IMPELLER,WATER PUMP

€ 24.00

92002

920021403
ref: 92002

BOLT,SOCKET,4X8

€ 2.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

920221393
ref: 92022

WASHER,6X14X2

€ 2.50

92022A

920221488
ref: 92022A

WASHER,8.2X14X1

€ 3.00

92026

920261238
ref: 92026

SPACER,15X28X1

€ 5.50

92027

920271839
ref: 92027

COLLAR,15.2X17X4

€ 8.50

92043

920431256
ref: 92043

PIN,3X12.8

€ 3.00

92043A

920431293
ref: 92043A

PIN,2X9.8

€ 4.00

92045

920451212
ref: 92045

BEARING-BALL

€ 11.50

92046

920461052
ref: 92046

BEARING-NEEDLE,AXK110

€ 14.00

92049

92049002
ref: 92049

OIL SEAL SB16244

€ 6.00

92049A

920491366
ref: 92049A

SEAL-OIL,MHSD8X18X10J

€ 12.50

92049B

920491207
ref: 92049B

SEAL-OIL,SDO8144

€ 6.50

92081

920811769
ref: 92081

SPRING,GOVERNOR

€ 3.00

92143

921431001
ref: 92143

COLLAR

€ 15.50

130

130G0516
ref: 130

BOLT-FLANGED

€ 0.50

132

132G0608
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0625
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132G0810
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

220

220B0306
ref: 220

SCREW-PAN-CROS

€ 0.50

555

555A0312
ref: 555

PIN-SPRING

€ 1.00

600

600A1000
ref: 600

BALL-STEEL,5/16

€ 0.50

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50
