SHOCK ABSORBER (KX125-B2)
KX125-B2 KX125 1983 USA CANADA

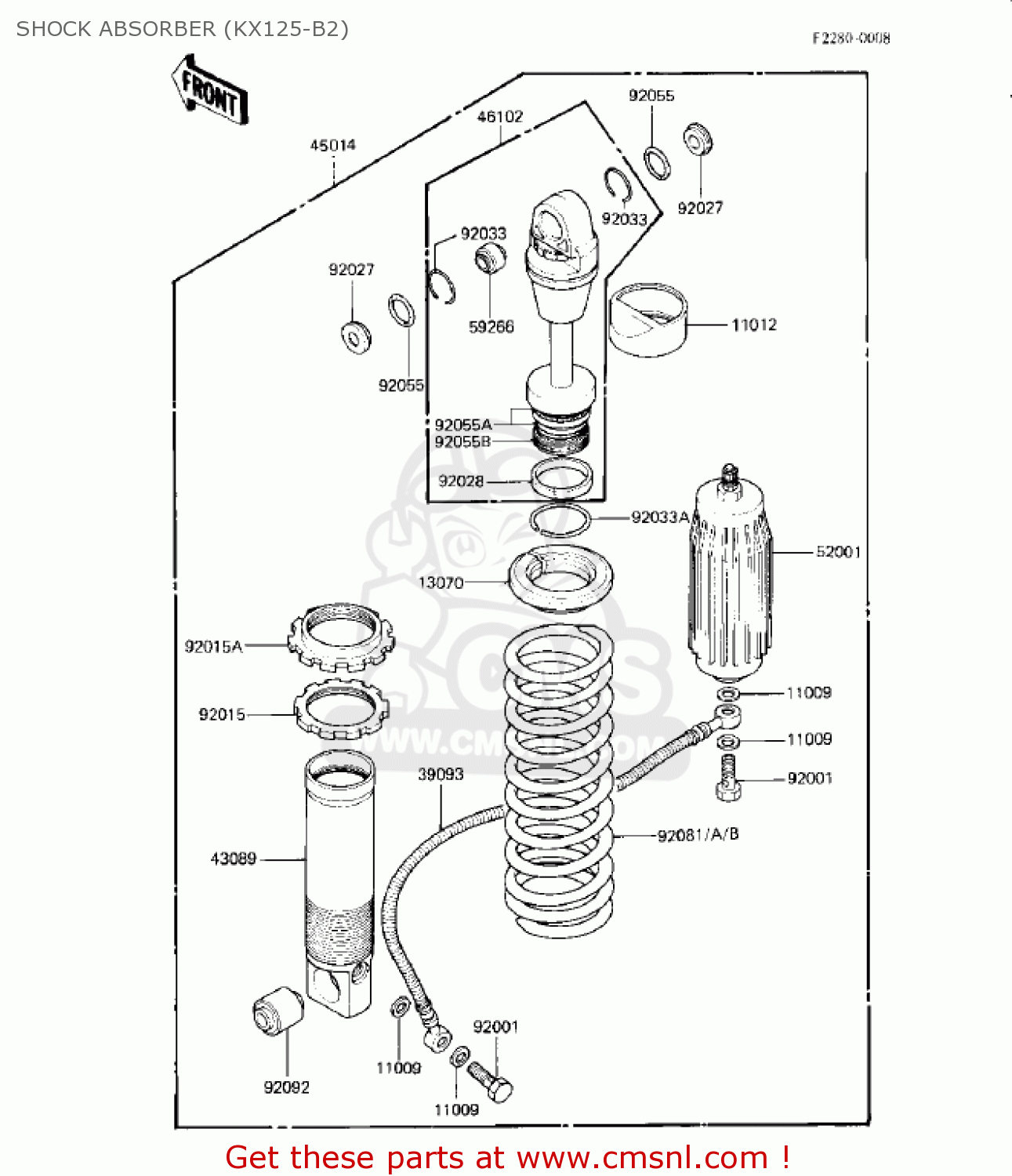

Shock absorber (kx125-b2) diagram KX125-B2 KX125 1983 USA CANADA
SHOCK ABSORBER (KX125-B2) KX125-B2 KX125 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
44045057
ref: 11009
GASKET (NAS)
€ 3.00
11012
110121278
ref: 11012
CAP,REARSHOCK
€ 4.00
13070
130701075
ref: 13070
GUIDE,SPRING
€ 49.50
39093
390931083
ref: 39093
PIPE-COMP-SUSP
€ 146.00
43089
430891049
ref: 43089
CYLINDER-SHOCKABSORBE
€ 291.50
45014
450141194
ref: 45014
SHOCKABSORBER
€ 214.00
46102
461021058
ref: 46102
ROD,REARSHOCK
€ 524.50
52001
520011017
ref: 52001
TANK-OIL,REARSHOCK
€ 216.50
59266
592661014
ref: 59266
JOINT-BALL
€ 55.50
92001
920011752
ref: 92001
BOLT,PIPE-COMP-SUSP
€ 8.00
92015
920151238
ref: 92015
NUT,SPRING ADJUST LOC
€ 12.50
92015A
920151239
ref: 92015A
NUT,SPRING ADJUST
€ 31.50
92027
920271534
ref: 92027
COLLAR,REARSHOCK
€ 9.00
92028
920281198
ref: 92028
BUSHING,ROD
€ 12.50
92033
920331090
ref: 92033
RING-SNAP
€ 3.50
92033A
920331091
ref: 92033A
RING-SNAP,REARSHOCK
€ 3.00
92055
920551156
ref: 92055
RING-O,REARSHOCK
€ 1.00
92055A
920551181
ref: 92055A
RING-O,ROD
€ 5.50
92055B
920551158
ref: 92055B
RING-O,ROD
€ 3.50
92081
920811558
ref: 92081
(OPTION)
SPRING,SHOCKABSORBER,
€ 237.50
92081A
920811559
ref: 92081A
(OPTION)
SPRING,SHOCKABSORBER,
€ 235.00
92081B
920811562
ref: 92081B
SPRING,SHOCKABSORBER,
€ 235.00
92092
920921008
ref: 92092
BUSHING-RUBBER,SHOCKA
€ 22.00
