SHOCK ABSORBER (KX125-B1)
KX125-B2 KX125 1983 USA CANADA

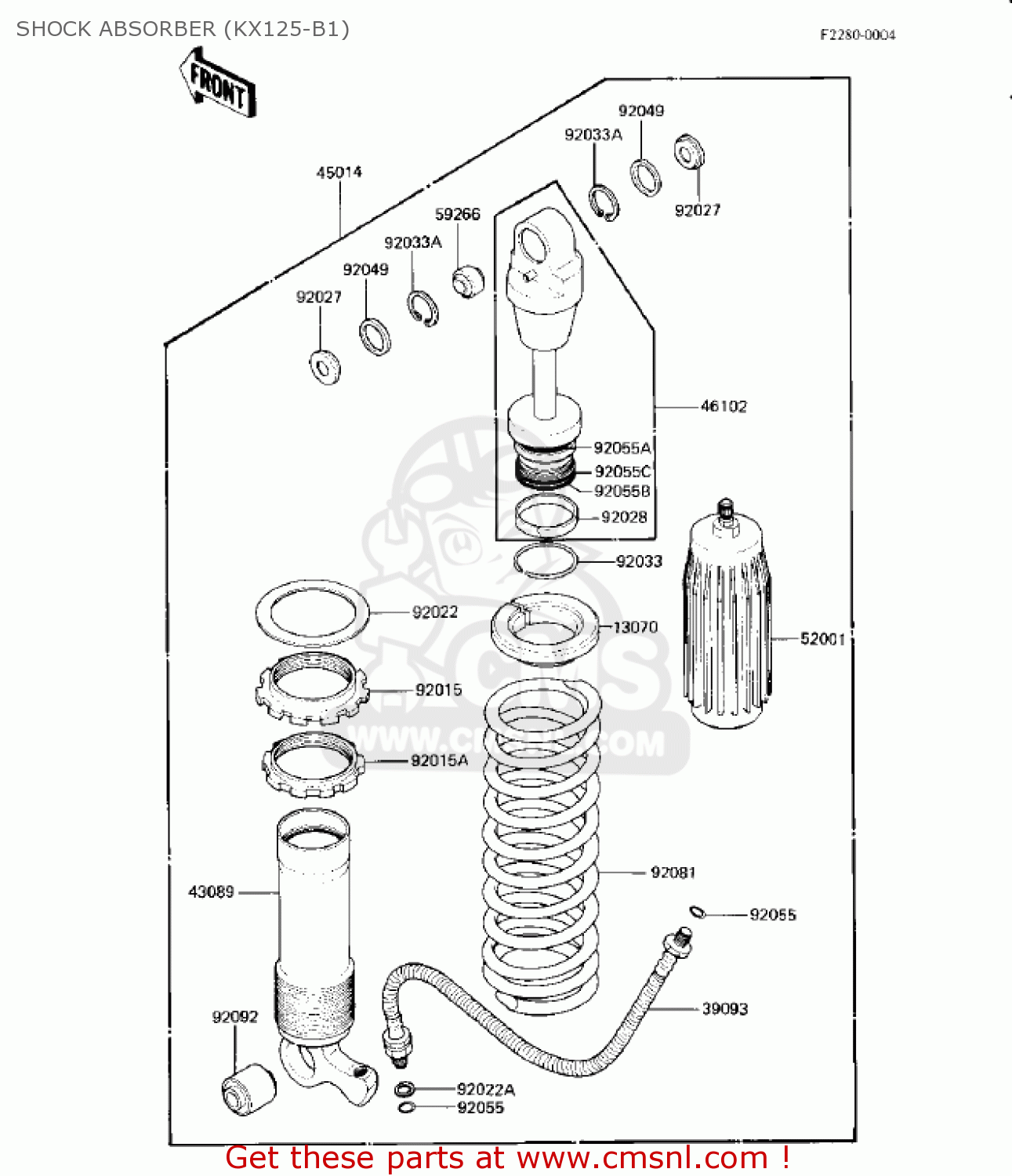

Shock absorber (kx125-b1) diagram KX125-B2 KX125 1983 USA CANADA
SHOCK ABSORBER (KX125-B1) KX125-B2 KX125 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13070
130701058
ref: 13070
GUIDE,SPRING
€ 33.50
39093
390931081
ref: 39093
PIPE-COMP-SUSP
€ 85.00
43089
430891033
ref: 43089
CYLINDER-SHOCKABSORBE
€ 295.50
45014
450141156
ref: 45014
SHOCKABSORBER
€ 710.00
46102
461021043
ref: 46102
ROD,REARSHOCK
€ 342.50
52001
520011013
ref: 52001
TANK-OIL,REARSHOCK
€ 219.00
59266
592661051
ref: 59266
JOINT-BALL
€ 67.50
92015
920151186
ref: 92015
NUT,SPRING ADJUST
€ 51.00
92015A
920151187
ref: 92015A
NUT,SPRING ADJUST LOC
€ 28.50
92022
920221235
ref: 92022
WASHER,SPRING
€ 7.00
92022A
920221297
ref: 92022A
WASHER,REAR SHOCK
€ 1.50
92027
920271417
ref: 92027
COLLAR,REAR SHOCK
€ 8.50
92028
920281127
ref: 92028
BUSHING,REAR SHOCK
€ 9.00
92033
920331061
ref: 92033
RING-SNAP,AIR VALVE
€ 2.50
92033A
920331076
ref: 92033A
RING-SNAP,REAR SHOCK
€ 2.00
92049
920491093
ref: 92049
SEAL-OIL,REARSHOCK
€ 8.50
92055
920551099
ref: 92055
RING-O
€ 3.00
92055A
920551102
ref: 92055A
RING-O,REAR SHOCK
€ 3.00
92055B
920551103
ref: 92055B
RING-O,REA SHOCK
€ 4.00
92055C
920551121
ref: 92055C
RING-O,REAR SHOCK
€ 3.00
92081
920811467
ref: 92081
SPRING,REARSHOCK,STD
€ 217.00
92092
920921008
ref: 92092
BUSHING-RUBBER,SHOCKA
€ 22.00
