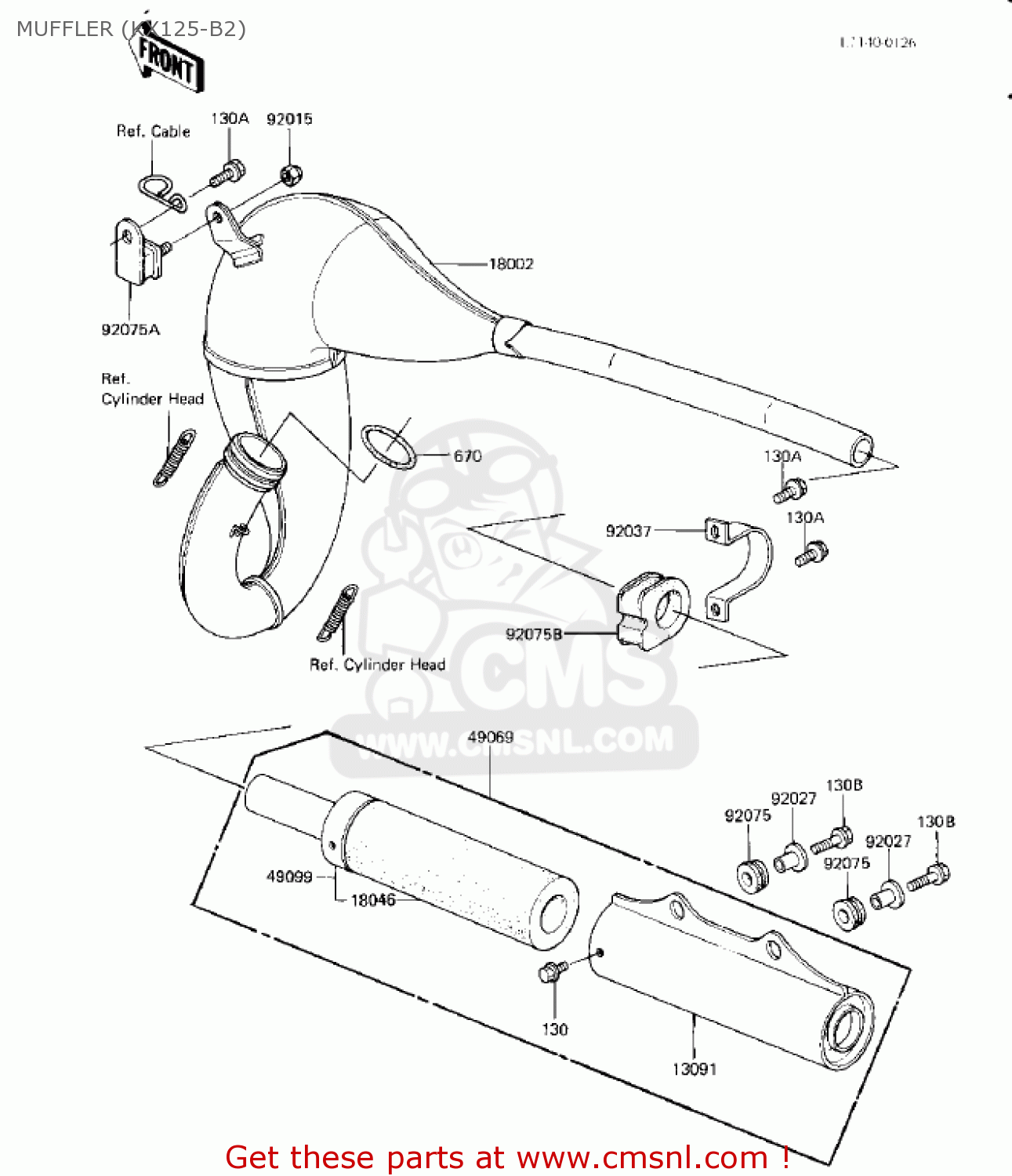

MUFFLER (KX125-B2)

KX125-B2 KX125 1983 USA CANADA

Muffler (kx125-b2) diagram KX125-B2 KX125 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

13091

130911165
ref: 13091

HOLDER,MUFFLER

€ 166.50

18002

180021293
ref: 18002

BODY-COMP-MUFFLER

€ 163.50

18046

180461016
ref: 18046

WOOL,BAFFLE PIPE

€ 22.50

49069

490691007
ref: 49069

MUFFLER-ASSY

€ 151.50

49099

490991112
ref: 49099

BAFFLE-PIPE MUFFLER

€ 49.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92027

920271062
ref: 92027

COLLAR,SEAT

€ 4.50

92037

920371385
ref: 92037

CLAMP,MUFFLER CONNECT

€ 6.00

92075

920751123
ref: 92075

DAMPER,RUBBER

€ 3.00

92075A

920751891
ref: 92075A

DAMPER,MUFFLER

€ 21.00

92075B

920751440
ref: 92075B

DAMPER,MUFFLER CONNEC

€ 12.00

130

130G0508
ref: 130

BOLT-FLANGED

€ 0.50

130A

130G0612
ref: 130A

BOLT,FLANGE,6X12

€ 0.50

130B

130G0620
ref: 130B

BOLT,FLANGED,6X20

€ 2.50

670

670E3045
ref: 670

O RING,45MM

€ 11.50

MUFFLER (KX125-B2)

all assemblies
