Genuine KX Kawasaki Parts delivered quickly!

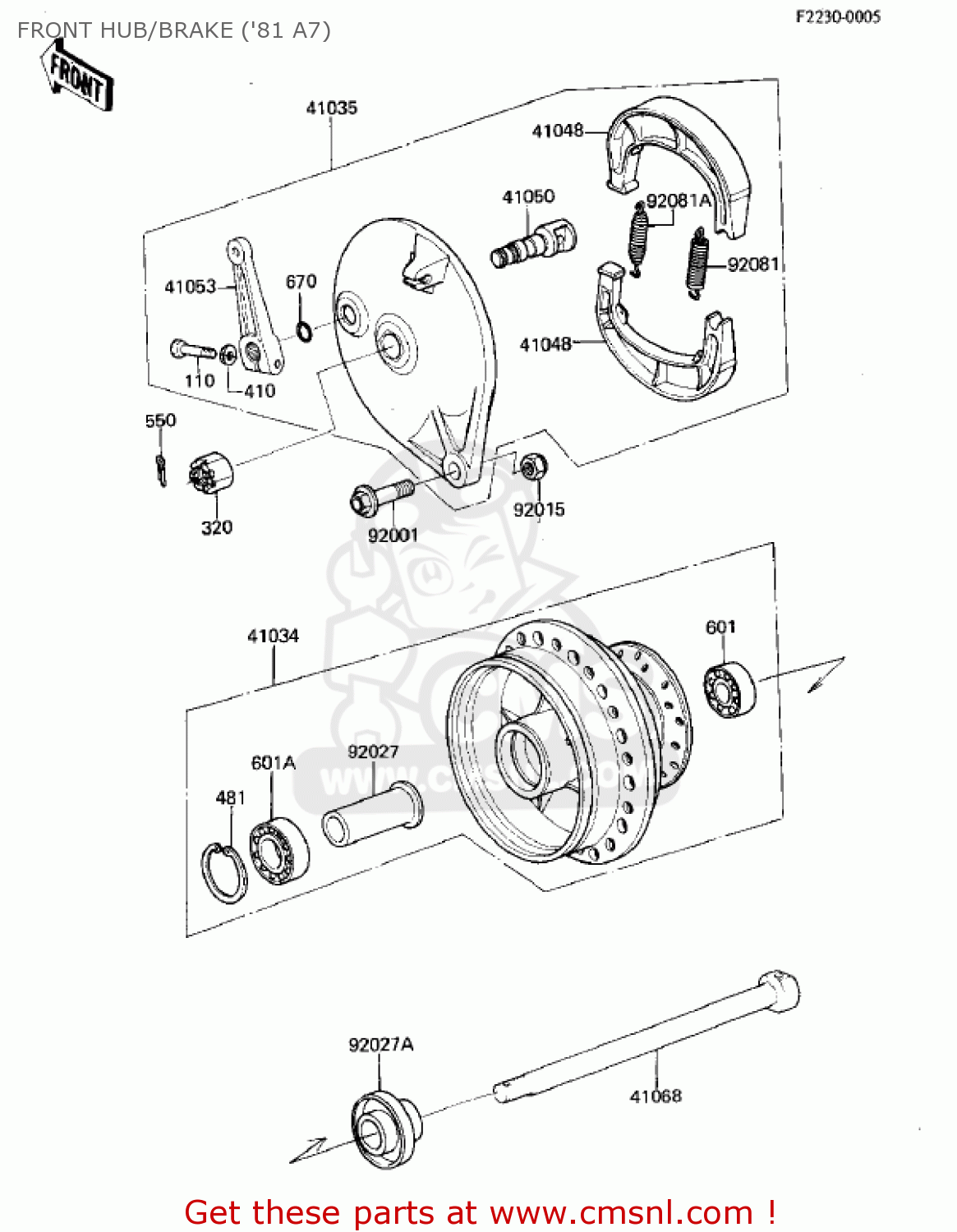

FRONT HUB/BRAKE ('81 A7)

KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

Front hub/brake ('81 a7) diagram KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

FRONT HUB/BRAKE ('81 A7) KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL
FRONT HUB/BRAKE ('81 A7) KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL
FRONT HUB/BRAKE ('81 A7) KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL
prices are in EUR
ref
part #
description
quantity
41034
41034100921
ref: 41034
DRUM ASSY,FRONT BRAKE
41034100921
€ 285.00
41035
410351024
ref: 41035
PANEL ASSY,FRONT
€ 239.00
41048
41048015
ref: 41048
SHOE,BRAKE (MCA)
41048015
€ 14.50
41050
410501006
ref: 41050
CAM SHAFT,FRONT BRAKE
€ 19.50
41053
410531007
ref: 41053
LEVER,BRAKE CAM,FRONT
410531007
€ 40.50
41068
410681034
ref: 41068
AXLE,FRONT
€ 33.50
92001
920011182
ref: 92001
BOLT,10X45
€ 6.00
92015
92019021
ref: 92015
NUT,LOCK,10M/M
92019021
€ 2.00
92027
920271073
ref: 92027
COLLAR,FRONT BEARING
920271073
€ 30.50
92027A
920271025
ref: 92027A
COLLAR, TURN SIG FITT
€ 5.50
92081
920811766
ref: 92081
SPRING,BRAKE SHOE
920811766
€ 5.50
92081A
920811550
ref: 92081A
SPRING,BRAKE SHOE
920811550
€ 6.00
110
112G0622
ref: 110
BOLT-UPSET
112G0622
€ 2.50
320
320G1200
ref: 320
NUT-CASTLE
320G1200
€ 2.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
481J3700
€ 1.50
550
550D3228
ref: 550
PIN-COTTER,3.2X28
€ 1.50
601
601B6201U
ref: 601
BEARING-BALL,#6201LUC
601B6201U
€ 18.50
601A
601B6301U
ref: 601A
BEARING-BALL,#6301UC3
601B6301U
€ 27.00
670
670B2012
ref: 670
O RING,12MM
670B2012
€ 1.00
