CRANKSHAFT/PISTON ('80 A6)

KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

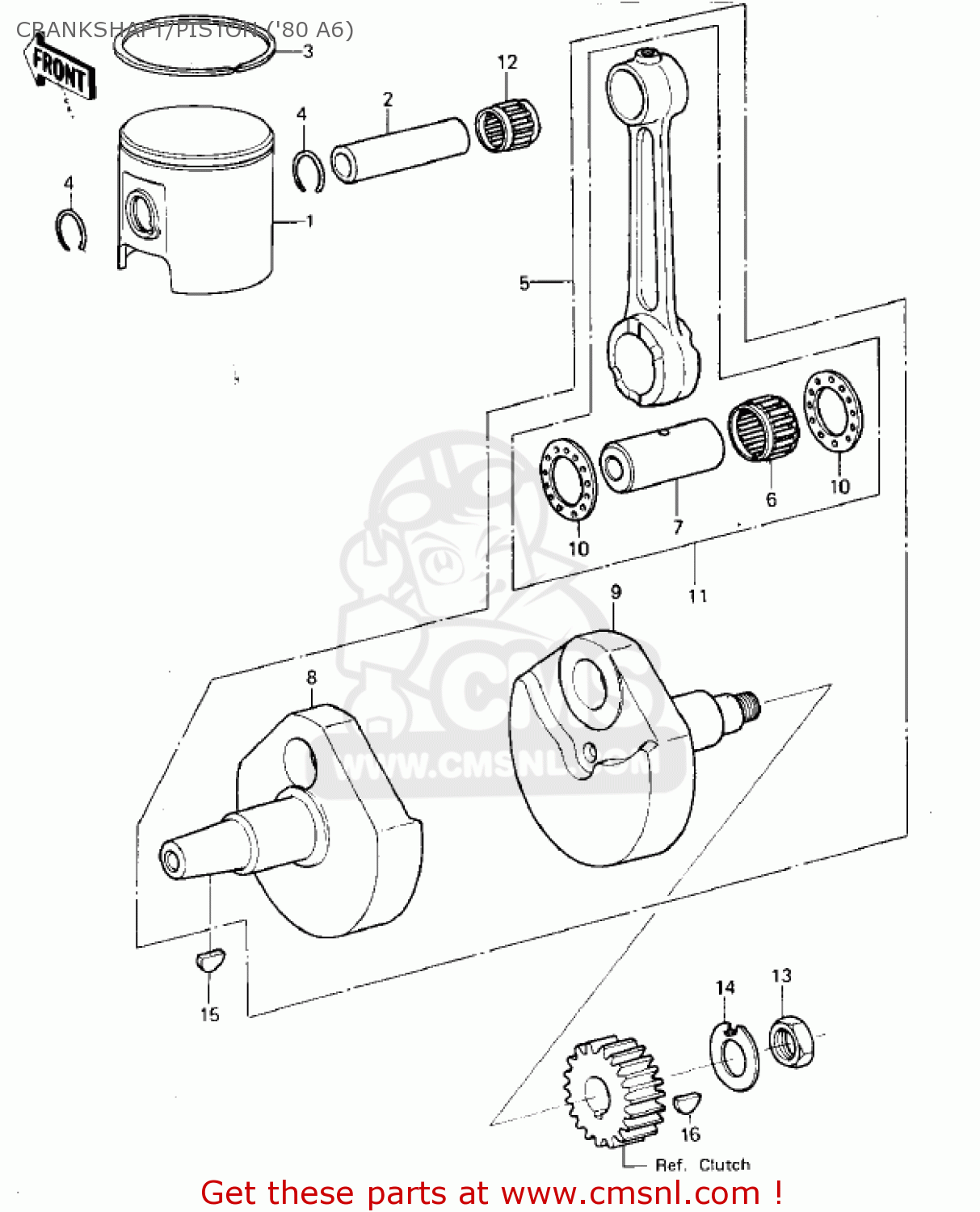

Crankshaft/piston ('80 a6) diagram KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

CRANKSHAFT/PISTON ('80 A6) KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

CRANKSHAFT/PISTON ('80 A6) KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

prices are in EUR

ref

part #

description

quantity

1

130011052
ref: 1

PISTON-ENGINE

€ 70.00

2

130021003
ref: 2

PIN-PISTON

€ 16.50

3

130031060
ref: 3

RING-PISTON TOP

€ 71.50

4

92036004
ref: 4

CIRCLIP-PISTON PIN

€ 0.50

5

130311032
ref: 5

CRANKSHAFT ASSY

€ 203.00

6

130341002
ref: 6

BEARING-NEEDLE,SKT228

€ 64.00

7

130351001
ref: 7

PIN-CRANK

€ 25.50

8

130371062
ref: 8

CRANKSHAFT,L.H

€ 131.50

9

130371063
ref: 9

CRANKSHAFT,R.H

€ 203.50

10

92026011
ref: 10

SPACER,22.5X37X1.0

€ 6.50

11

130445017
ref: 11

SET-CONNECTING ROD

€ 173.00

12

130331001
ref: 12

BEARING,N,SMALL END

€ 20.00

13

92015006
ref: 13

NUT,12MM

€ 3.50

14

920221063
ref: 14

WASHER,CLAW,12.5X32X0

€ 3.50

15

92038001
ref: 15

WOODRUFF KEY

€ 3.00

16

92038003
ref: 16

WOODRUFF KEY-PRY PINI

€ 1.50
