FRONT HUB/BRAKE ('80 A6)

KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

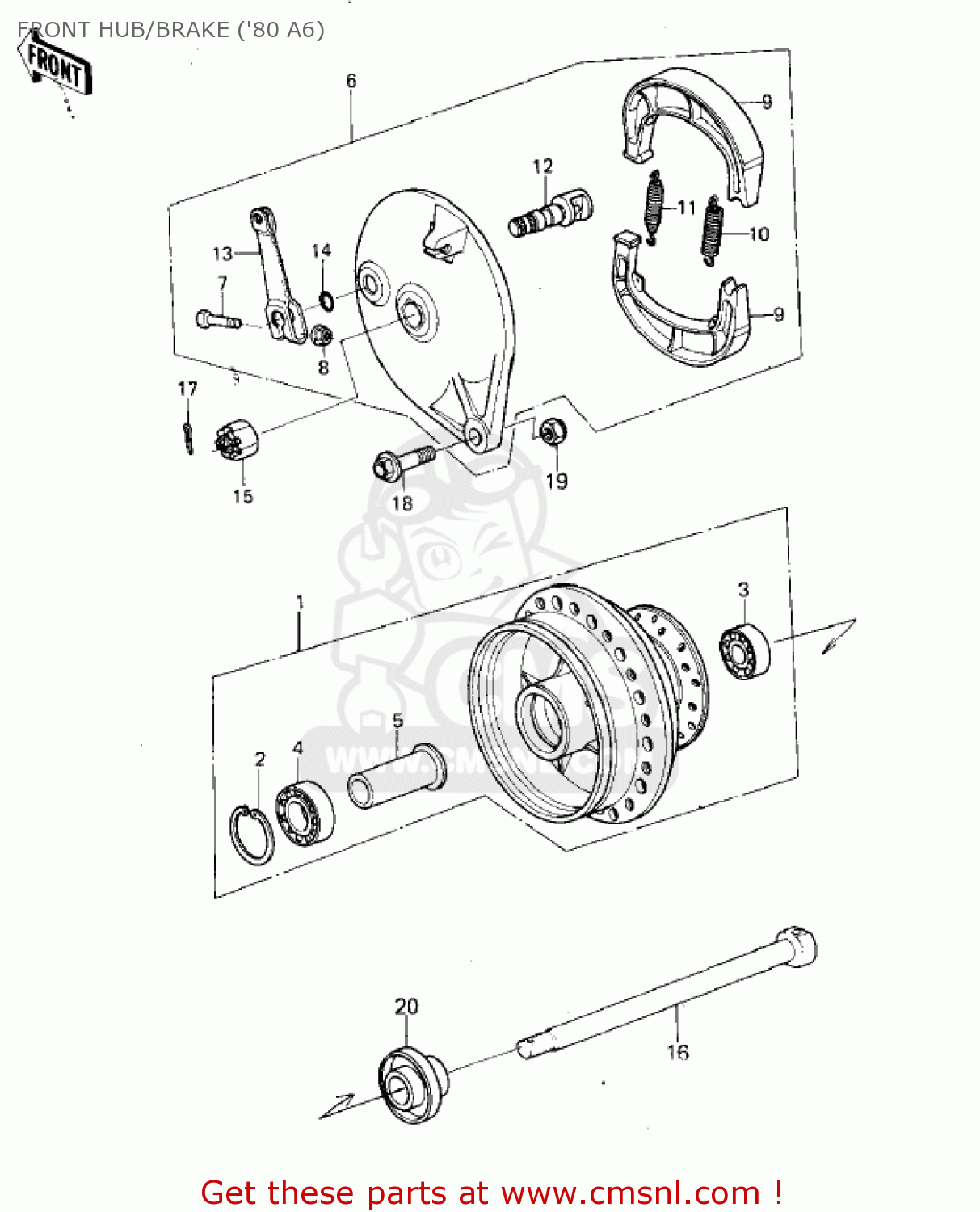

Front hub/brake ('80 a6) diagram KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

FRONT HUB/BRAKE ('80 A6) KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

FRONT HUB/BRAKE ('80 A6) KX125-A7 KX125 1981 UNITED KINGDOM USA CANADA AL

prices are in EUR

ref

part #

description

quantity

1

41034100921
ref: 1

DRUM ASSY,FRONT BRAKE

€ 285.00

2

481J3700
ref: 2

CIRCLIP-TYPE-C,37MM

€ 1.50

3

601B6201U
ref: 3

BEARING-BALL,#6201LUC

€ 18.50

4

601B6301U
ref: 4

BEARING-BALL,#6301UC3

€ 27.00

5

920271073
ref: 5

COLLAR,FRONT BEARING

€ 30.50

6

410351030
ref: 6

PANEL ASSY,FR BRAKE

€ 225.50

7

112G0630
ref: 7

BOLT-UPSET

€ 1.00

8

920151078
ref: 8

NUT,6M/M

€ 1.50

9

41048015
ref: 9

SHOE,BRAKE (MCA)

€ 14.50

10

920811766
ref: 10

SPRING,BRAKE SHOE

€ 5.50

11

920811550
ref: 11

SPRING,BRAKE SHOE

€ 6.00

12

410501016
ref: 12

CAM SHAFT,FR BRAKE

€ 15.00

13

410531018
ref: 13

LEVER-BRAKE CAM

€ 34.00

14

670B2012
ref: 14

O RING,12MM

€ 1.00

15

320G1200
ref: 15

NUT-CASTLE

€ 2.50

16

410681034
ref: 16

AXLE,FRONT

€ 33.50

17

550D3228
ref: 17

PIN-COTTER,3.2X28

€ 1.50

18

920011182
ref: 18

BOLT,10X45

€ 6.00

19

92019021
ref: 19

NUT,LOCK,10M/M

€ 2.00

20

920271205
ref: 20

COLLAR,FR AXLE

€ 13.00
