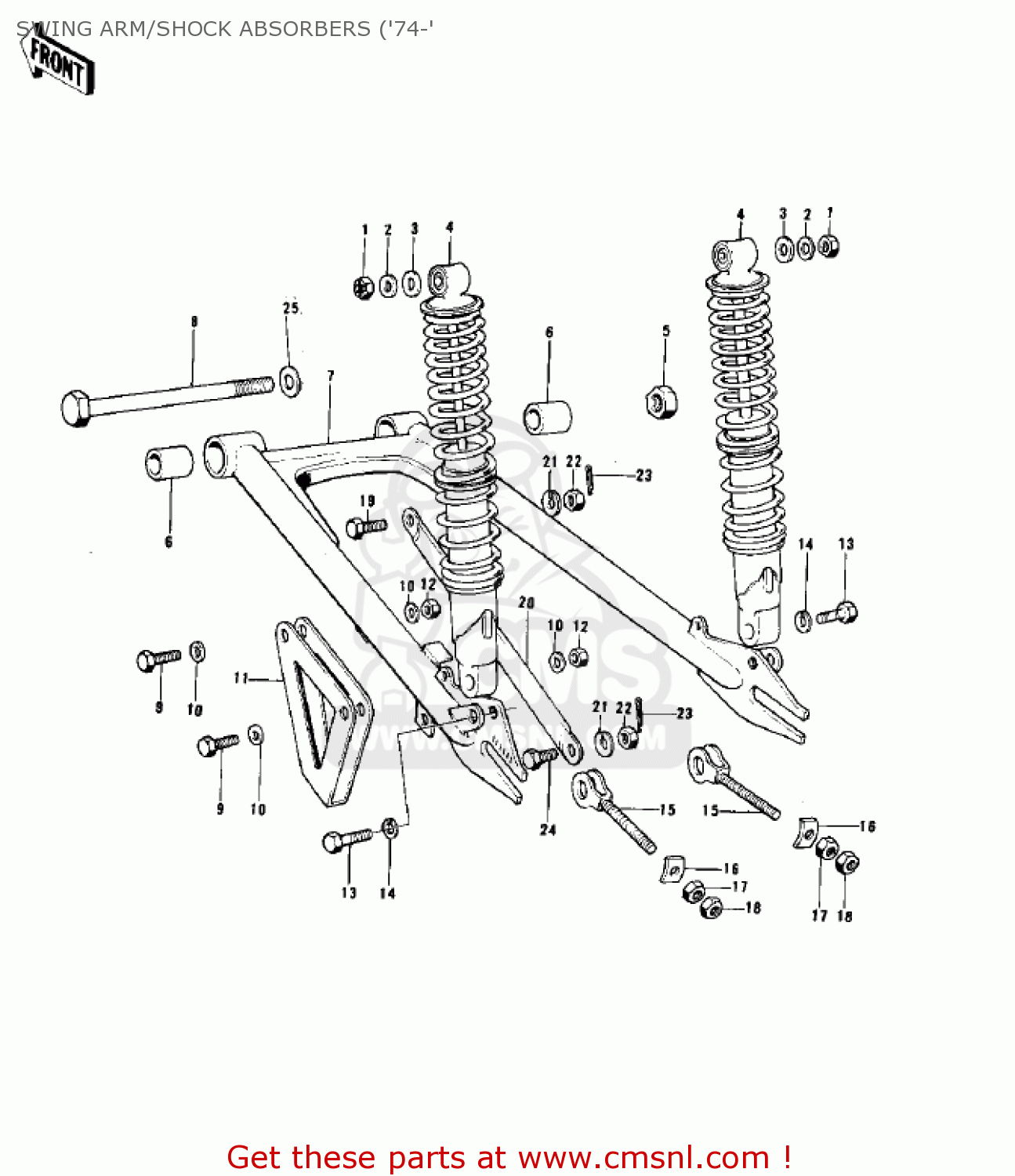

SWING ARM/SHOCK ABSORBERS ('74-'

ref

part #

description

quantity

1

92019016
ref: 1

NUT,10MM

€ 3.00

2

92022044
ref: 2

WASHER,10.5X26X2.3

€ 2.50

3

410B1200
ref: 3

WASHER-PLAIN-SMALL,12

€ 0.50

4

45014099
ref: 4

SHOCK ABSORBER,REAR

€ 155.50

5

92019017
ref: 5

NUT,12MM

€ 2.00

6

33033012
ref: 6

BUSHING,SWINGING ARM

€ 7.00

7

33001072
ref: 7

ARM,SWING

€ 86.50

8

33032034
ref: 8

SHAFT-SWING ARM

€ 22.50

9

112G0645
ref: 9

BOLT-UPSET

€ 0.50

10

92022125
ref: 10

WASHER,6.5X20X1.6

€ 1.00

11

55020015
ref: 11

GUARD,CHAIN

€ 13.50

12

92019019
ref: 12

NUT,6MM

€ 4.00

13

113N1035
ref: 13

BOLT-HEX HEAD,10X35

€ 6.00

14

461F1000
ref: 14

WASHER-SPRING,10MM

€ 0.50

15

33040057
ref: 15

ADJUSTER,CHAIN

€ 17.00

16

33041002
ref: 16

PLATE,CHAIN ADJUSTER

€ 9.50

17

311B0800
ref: 17

NUT,8MM

€ 0.50

18

92019018
ref: 18

NUT,8MM

€ 5.50

19

92003143
ref: 19

BOLT,HEX HEAD,8X24

€ 2.50

20

43007039
ref: 20

TORQUE LINK,RR BRAKE

€ 9.00

21

461F0800
ref: 21

WASHER-SPRING,8MM

€ 0.50

22

320B0800
ref: 22

NUT,8MM

€ 1.50

23

550D2020
ref: 23

PIN-COTTER,2.0X20

€ 0.50

24

92003144
ref: 24

BOLT,RR TORQUE LINK

€ 4.00

25

410B1200
ref: 25
KX125A-3

WASHER-PLAIN-SMALL,12

€ 0.50

SWING ARM/SHOCK ABSORBERS ('74-'

all assemblies
