IGNITION ('74-'76 KX125/A/A3)
KX125-A4 1978

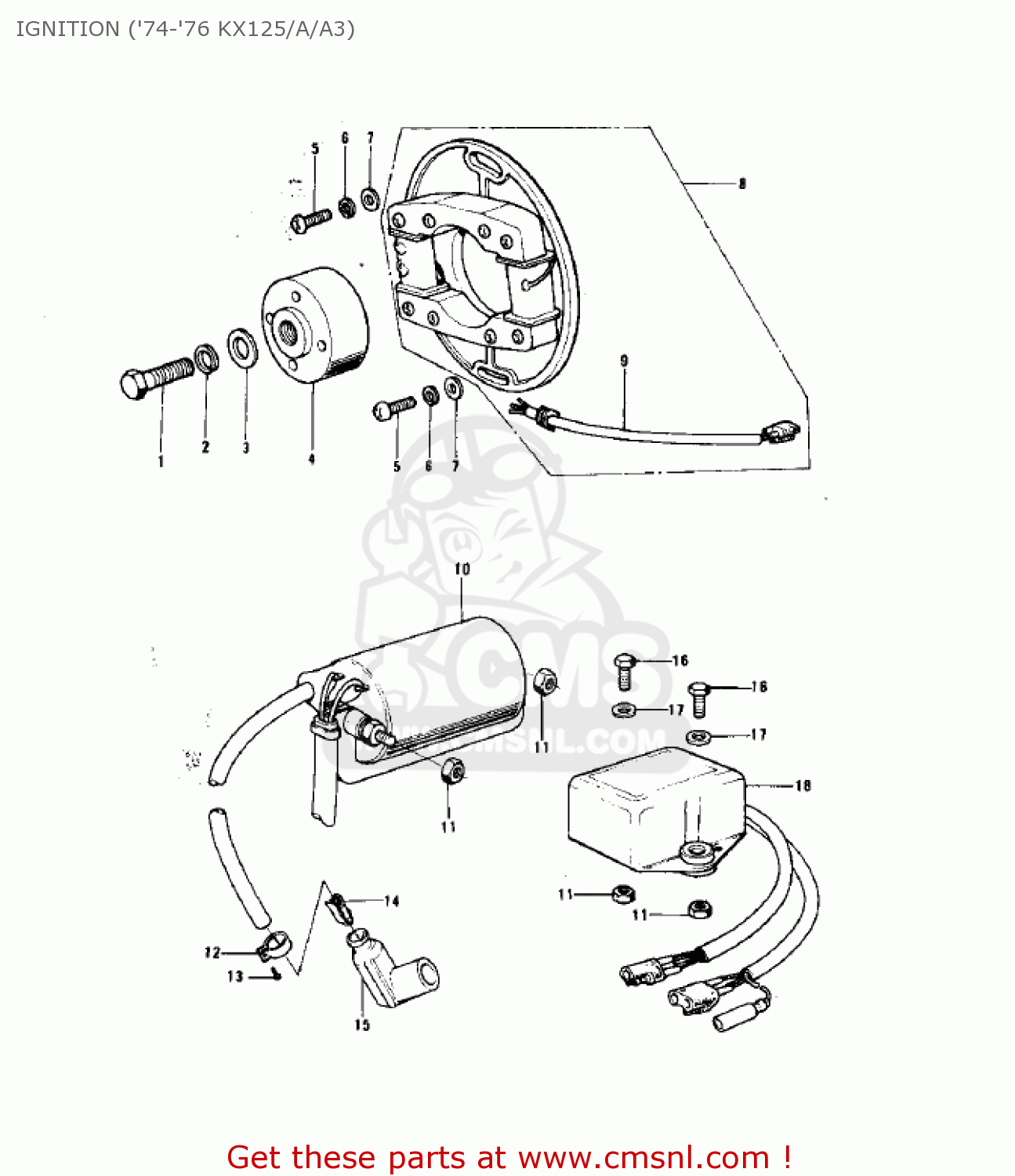

Ignition ('74-'76 kx125/a/a3) diagram KX125-A4 1978
IGNITION ('74-'76 KX125/A/A3) KX125-A4 1978
×
prices are in EUR
ref
part #
description
quantity
1
920011578
ref: 1
BOLT,FLANGED,8X40
€ 4.00
2
461F0800
ref: 2
WASHER-SPRING,8MM
€ 0.50
3
92022276
ref: 3
WASHER,PLAIN,8MM
€ 6.50
4
21007026
ref: 4
ROTOR,MAGNETO
€ 256.50
5
220B0625
ref: 5
SCREW-PAN HEAD,6X25
€ 1.50
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
410B0600
ref: 7
WASHER-PLAIN-SMALL,6M
€ 0.50
8
21003020
ref: 8
STATOR ASSY
€ 505.50
9
21029027
ref: 9
WIRING,HARNESS,MAGNT
€ 34.50
10
21121070
ref: 10
COIL,IGNITION
€ 100.00
11
92019019
ref: 11
NUT,6MM
€ 4.00
12
920371173
ref: 12
CLAMP,SPARK PLUG CAP
€ 1.00
13
220B0310
ref: 13
SCREW-PAN-CROS,3X10
€ 2.00
14
21169001
ref: 14
TERMINAL,PLUG CAP
€ 10.00
15
211301006
ref: 15
CAP-SPARK PLUG
€ 18.00
16
112G0618
ref: 16
BOLT-UPSET
€ 0.50
17
92022024
ref: 17
WASHER,7X16X1.2
€ 2.50
18
21119018
ref: 18
IGNITION UNIT
€ 386.00
