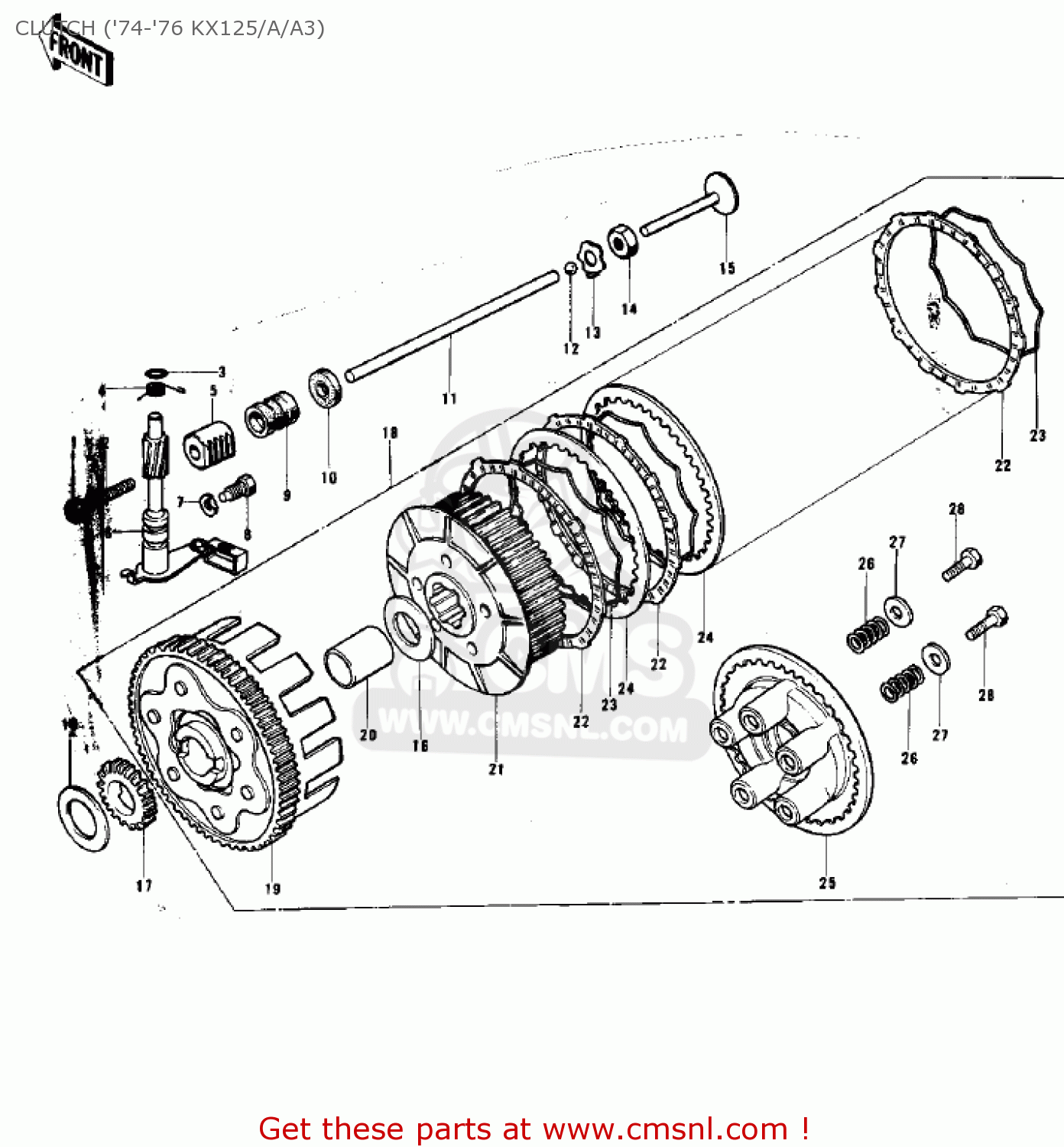

CLUTCH ('74-'76 KX125/A/A3)

ref

part #

description

quantity

1

311B0600
ref: 1

NUT,6MM

€ 0.50

2

92014015
ref: 2

SCREW,SET,6X26

€ 6.50

3

670B2010
ref: 3

O RING,10MM

€ 1.00

4

92083024
ref: 4
NOT REQUIRED FOR KX1

SPRING,CLUTCH RELESE

€ 3.50

5

13116026
ref: 5

ROD-PUSH,CLUTCH RELEA

€ 19.50

6

13234003
ref: 6

SHAFT-COMP,CLUTCH REL

€ 59.00

7

92031009
ref: 7

WASHER,LOCK

€ 2.00

8

92003130
ref: 8

BOLT,CLUTCH RELEASE

€ 3.50

9

92027207
ref: 9

COLLAR,11X15,RUBBER

€ 2.50

10

92050058
ref: 10

OIL SEAL,PUSH ROD

€ 5.50

11

13116027
ref: 11

ROD-PUSH,CLUTCH

€ 10.50

12

600A0700
ref: 12

BALL-STEEL,7/32

€ 2.50

13

92024046
ref: 13

WASHER,LOCK,14MM

€ 2.00

14

315B1400
ref: 14

NUT,14MM

€ 1.00

15

13116016
ref: 15

ROD-PUSH,CLUTCH SPRIN

€ 11.50

16

92022270
ref: 16

WASHER,PLAIN

€ 7.00

17

13075010
ref: 17

GEAR-SPUR,KICKSTARTER

€ 33.50

18

13081077
ref: 18

CLUTCH ASSY

€ 226.50

19

130951034
ref: 19

HOUSING-COMP-CLUTCH

€ 271.00

20

92028138
ref: 20

BUSHING,17X22X33.5

€ 23.50

21

13087038
ref: 21

HUB-CLUTCH

€ 52.00

22

130881015
ref: 22

PLATE-FRICTION (NAS)

€ 11.50

23

13229002
ref: 23

SPRING,CLUTCH STEEL

€ 7.50

24

13089003
ref: 24

PLATE-CLUTCH,STEEL (NAS)

€ 7.50

25

13187004
ref: 25

PLATE-CLUTCH OPERATIN (NAS)

€ 24.50

26

92081080
ref: 26

SPRING-CLUTCH

€ 9.50

27

92022167
ref: 27

WASHER-PLAIN,5MM

€ 1.50

28

92003078
ref: 28

BOLT,5X18

€ 2.00
