RADIATOR

KX100D6F KX100 2006 USA CANADA

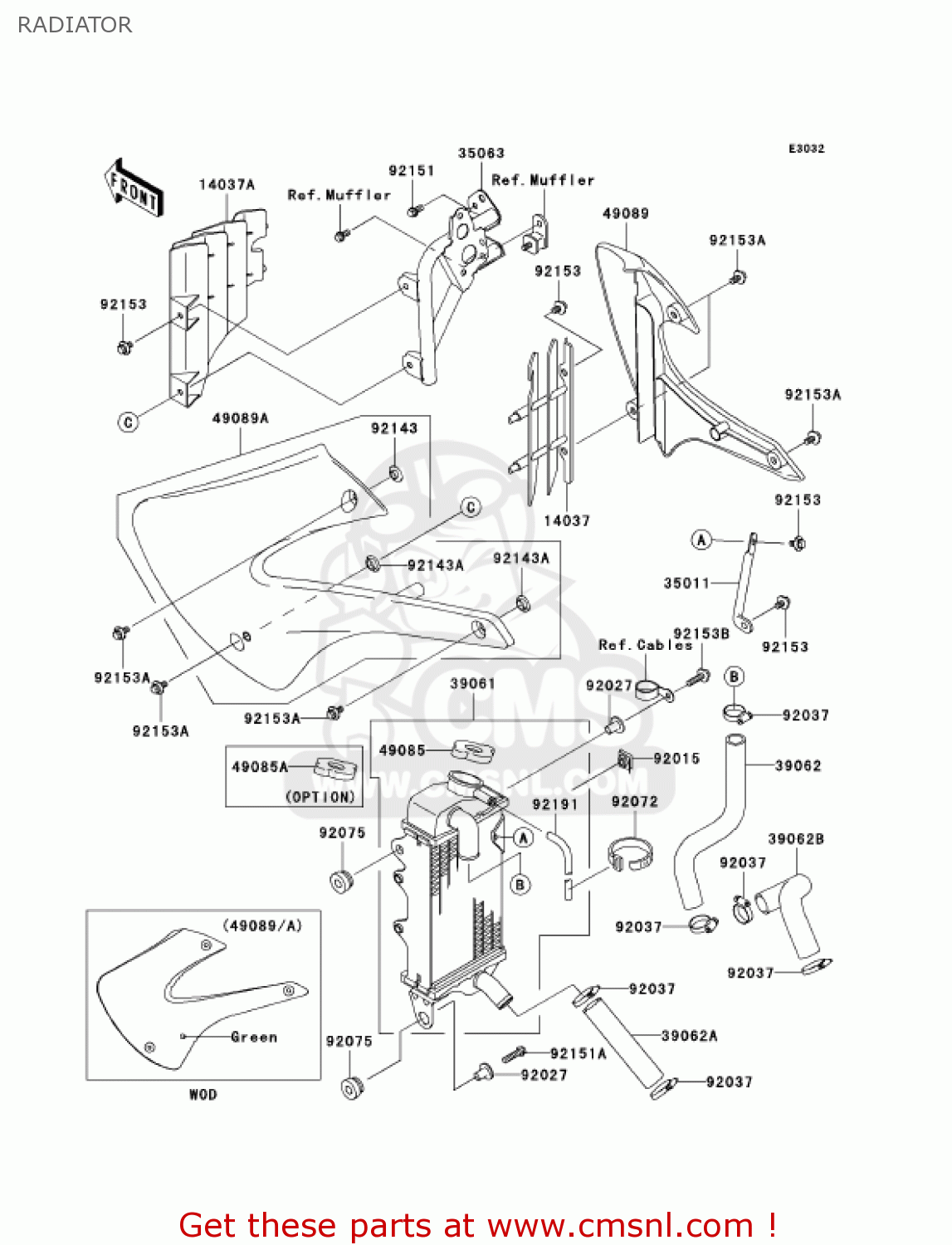

Radiator diagram KX100D6F KX100 2006 USA CANADA

RADIATOR KX100D6F KX100 2006 USA CANADA
RADIATOR KX100D6F KX100 2006 USA CANADA
RADIATOR KX100D6F KX100 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
14037
140371249RZ
ref: 14037
SCREEN,RH,WHITE
140371249RZ
€ 25.50
14037A
140371282RZ
ref: 14037A
SCREEN,LH,WHITE
140371282RZ
€ 26.50
35011
350111845
ref: 35011
STAY
350111845
€ 9.00
35063
350631137
ref: 35063
STAY
350631137
€ 65.00
39061
390611245
ref: 39061
RADIATOR-ASSY
€ 298.50
39062
390621425
ref: 39062
HOSE-COOLING,HEAD-RAD
390621425
€ 24.50
39062A
390621711
ref: 39062A
HOSE-COOLING,RADIATOR
390621711
€ 10.50
39062B
390621712
ref: 39062B
HOSE-COOLING,CYLINDER
390621712
€ 17.00
49085
490851070
ref: 49085
CAP-ASSY-PRESSURE
490851070
€ 37.50
49085A
490851073
ref: 49085A
(OPTION)
CAP-ASSY-PRESSURE
490851073
€ 37.50
49089
490891139290A
ref: 49089
SHROUD-ENGINE,RH,L.GR
€ 23.50
49089A
490891146290A
ref: 49089A
SHROUD-ENGINE,LH,L.GR
€ 23.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
920271183
€ 3.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
920371589
€ 13.00
92072
92072056
ref: 92072
BAND,RUBBER
92072056
€ 3.00
92075
920751352
ref: 92075
DAMPER,RADIATOR
920751352
€ 4.00
92143
921431087
ref: 92143
COLLAR
921431087
€ 2.50
92143A
921431196
ref: 92143A
COLLAR
921431196
€ 3.00
92151
921511133
ref: 92151
BOLT,6X12
921511133
€ 1.50
92151A
921511930
ref: 92151A
BOLT,6X25
921511930
€ 2.00
92153
921530503
ref: 92153
BOLT,6X12
921530503
€ 2.00
92153A
921530936
ref: 92153A
BOLT,FLANGED,6X14
921530936
€ 2.00
92153B
921531008
ref: 92153B
BOLT,FLANGED WP,M6X25
921531008
€ 1.50
92191
921911211
ref: 92191
TUBE,6X9X700
921911211
€ 7.50
