CRANKSHAFT/PISTON(S)
KX100D6F KX100 2006 USA CANADA

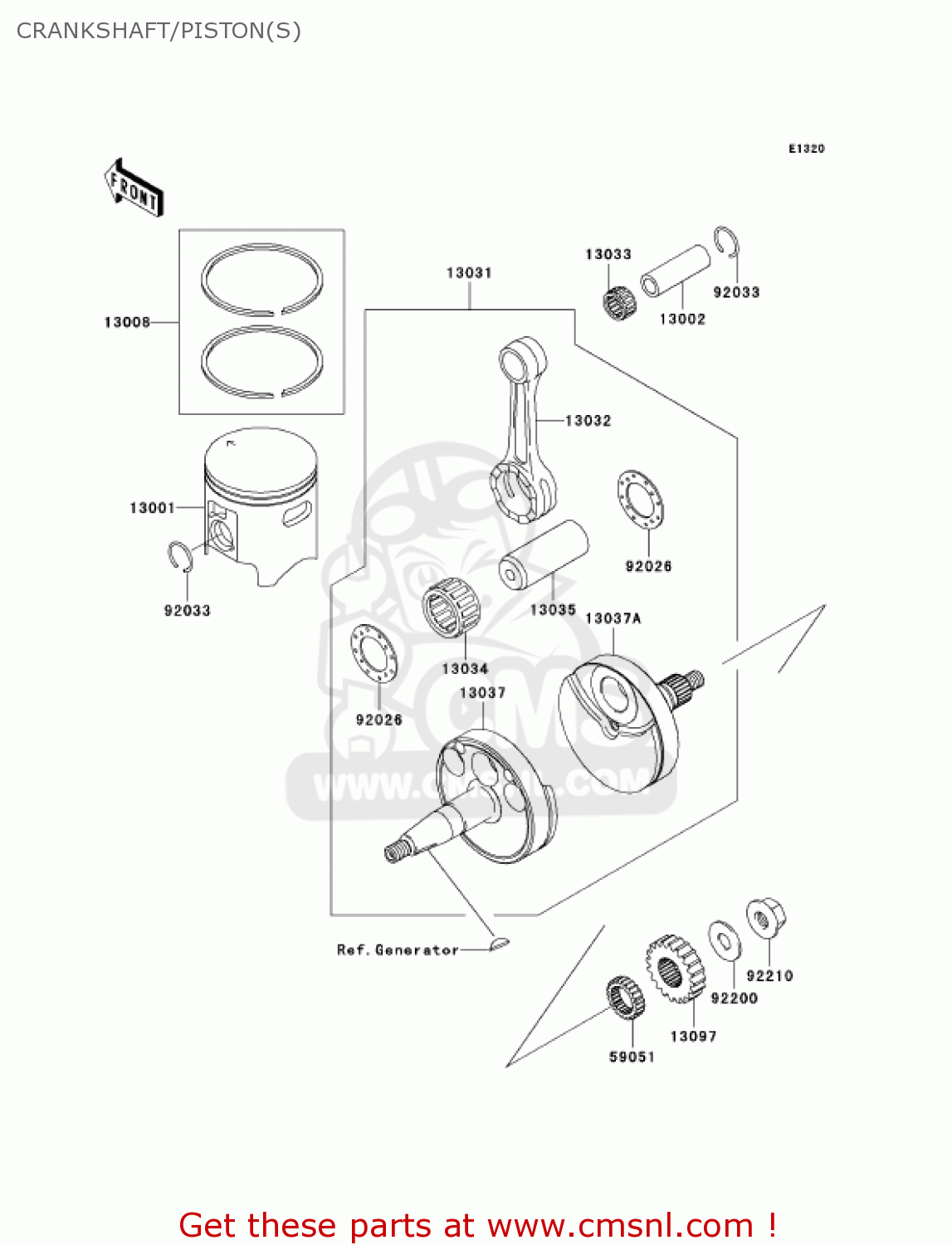

Crankshaft/piston(s) diagram KX100D6F KX100 2006 USA CANADA
CRANKSHAFT/PISTON(S) KX100D6F KX100 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13001
130010037
ref: 13001
PISTON-ENGINE
€ 60.50
13002
130021018
ref: 13002
PIN-PISTON
€ 26.00
13008
130081107
ref: 13008
RING-SET-PISTON
€ 40.50
13031
130310040
ref: 13031
CRANKSHAFT-COMP
€ 327.00
13032
130321230
ref: 13032
ROD-CONNECTING
€ 30.50
13033
130331060
ref: 13033
BEARING-SMALL END
€ 22.00
13034
130340013
ref: 13034
BEARING-BIG END,SKTZ
€ 29.00
13035
130351054
ref: 13035
PIN-CRANK
€ 23.50
13037
130370050
ref: 13037
CRANKSHAFT,LH
€ 157.00
13037A
130370051
ref: 13037A
CRANKSHAFT,RH
€ 157.00
13097
130971148
ref: 13097
GEAR-PRIMARY SPUR,20T
€ 60.50
59051
590511146
ref: 59051
GEAR-SPUR,PUMP,22T
€ 21.00
92026
920261136
ref: 92026
SPACER,22.2X37X1.0
€ 5.50
92033
920330005
ref: 92033
RING-SNAP
€ 2.00
92200
922000213
ref: 92200
WASHER,10.2X25X1.5
€ 2.50
92210
922100215
ref: 92210
NUT,FLANGED,M10XL1.25
€ 1.50
