CYLINDER HEAD/CYLINDER
KX100D6F KX100 2006 USA CANADA

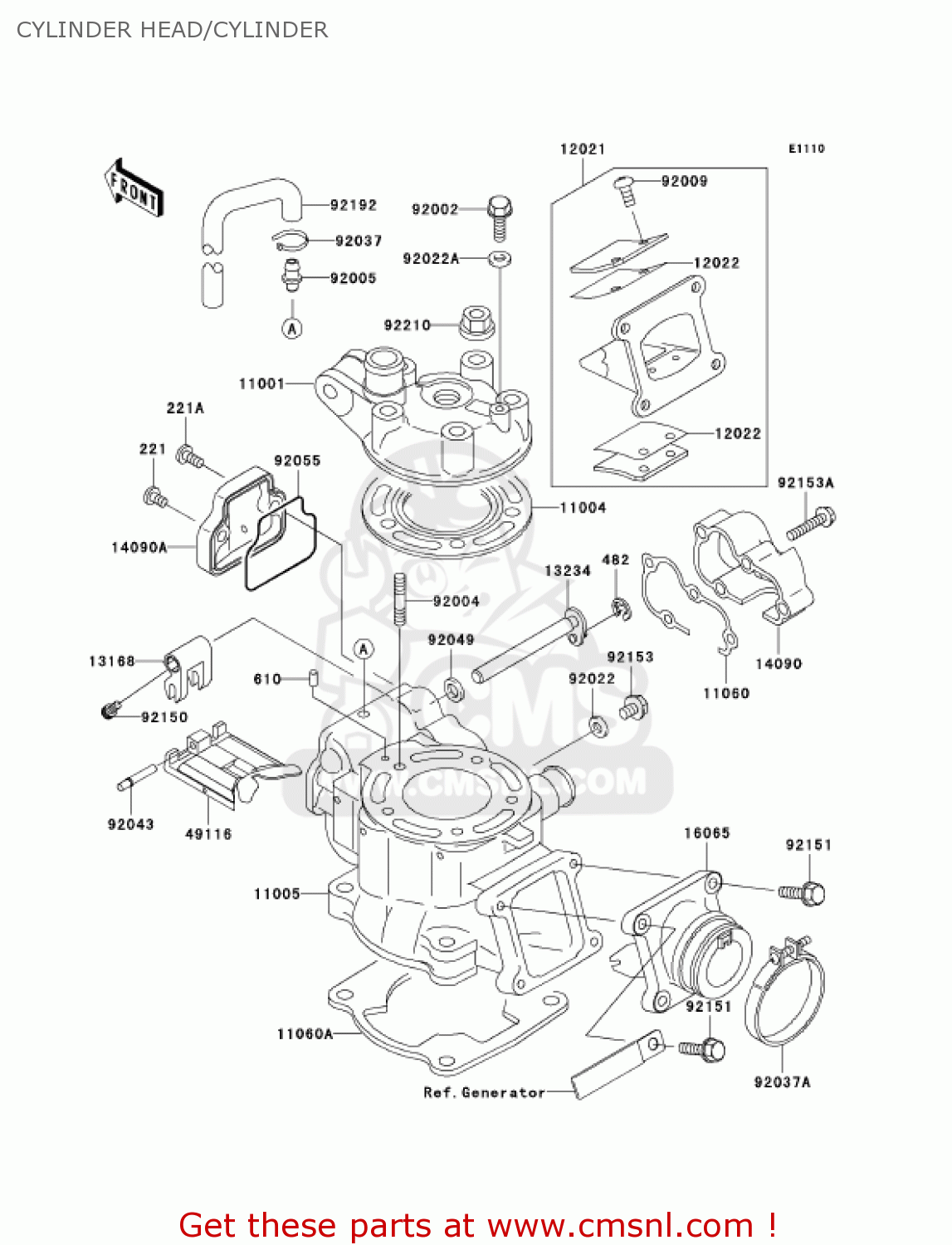

Cylinder head/cylinder diagram KX100D6F KX100 2006 USA CANADA
CYLINDER HEAD/CYLINDER KX100D6F KX100 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
221
221B0616
ref: 221
SCREW-CNTSNK HD,6X16
€ 0.50
221A
221B0620
ref: 221A
SCREW-CNTSNK HD,6X20
€ 0.50
482
482J5000
ref: 482
CIRCLIP-TYPE-E,5MM
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
11001
110011463
ref: 11001
HEAD-CYLINDER
€ 102.50
11004
110041214
ref: 11004
GASKET-HEAD (NAS)
€ 19.50
11005
110050053
ref: 11005
CYLINDER-ENGINE
€ 496.50
11060
110601778
ref: 11060
GASKET (NAS)
€ 3.50
11060A
110601779
ref: 11060A
GASKET,CYLINDER BASE (NAS)
€ 4.50
12021
120211123
ref: 12021
VALVE-ASSY-REED
€ 195.00
12022
120221084
ref: 12022
VALVE-REED
€ 70.00
13168
131681499
ref: 13168
LEVER,MAIN VALVE
€ 74.50
13234
132341105
ref: 13234
SHAFT-COMP
€ 24.00
14090
140901811
ref: 14090
COVER
€ 19.50
14090A
140901812
ref: 14090A
COVER
€ 15.50
16065
160651372
ref: 16065
HOLDER-CARBURETOR
€ 53.50
49116
491161158
ref: 49116
VALVE-ASSY
€ 122.00
92002
920021222
ref: 92002
BOLT,6X10
€ 5.50
92004
920041253
ref: 92004
STUD,8X32
€ 3.50
92005
920050050
ref: 92005
FITTING
€ 10.50
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92037
920371173
ref: 92037
CLAMP,SPARK PLUG CAP
€ 1.00
92037A
920371843
ref: 92037A
CLAMP
€ 5.50
92043
920431470
ref: 92043
PIN,MAIN VALVE
€ 3.00
92049
920491238
ref: 92049
SEAL-OIL,SD088144
€ 8.50
92055
920551566
ref: 92055
RING-O
€ 9.50
92150
921501888
ref: 92150
BOLT,SOCKET,4X8
€ 2.00
92151
921511252
ref: 92151
BOLT,FLANGED-SMALL,6X
€ 1.00
92153
921531005
ref: 92153
BOLT,FLANGED,M6X8
€ 0.50
92153A
921531006
ref: 92153A
BOLT,FLANGED,M5X25
€ 0.50
92192
921920265
ref: 92192
TUBE,L=426.3
€ 11.00
92210
922100076
ref: 92210
NUT,8MM
€ 3.50
