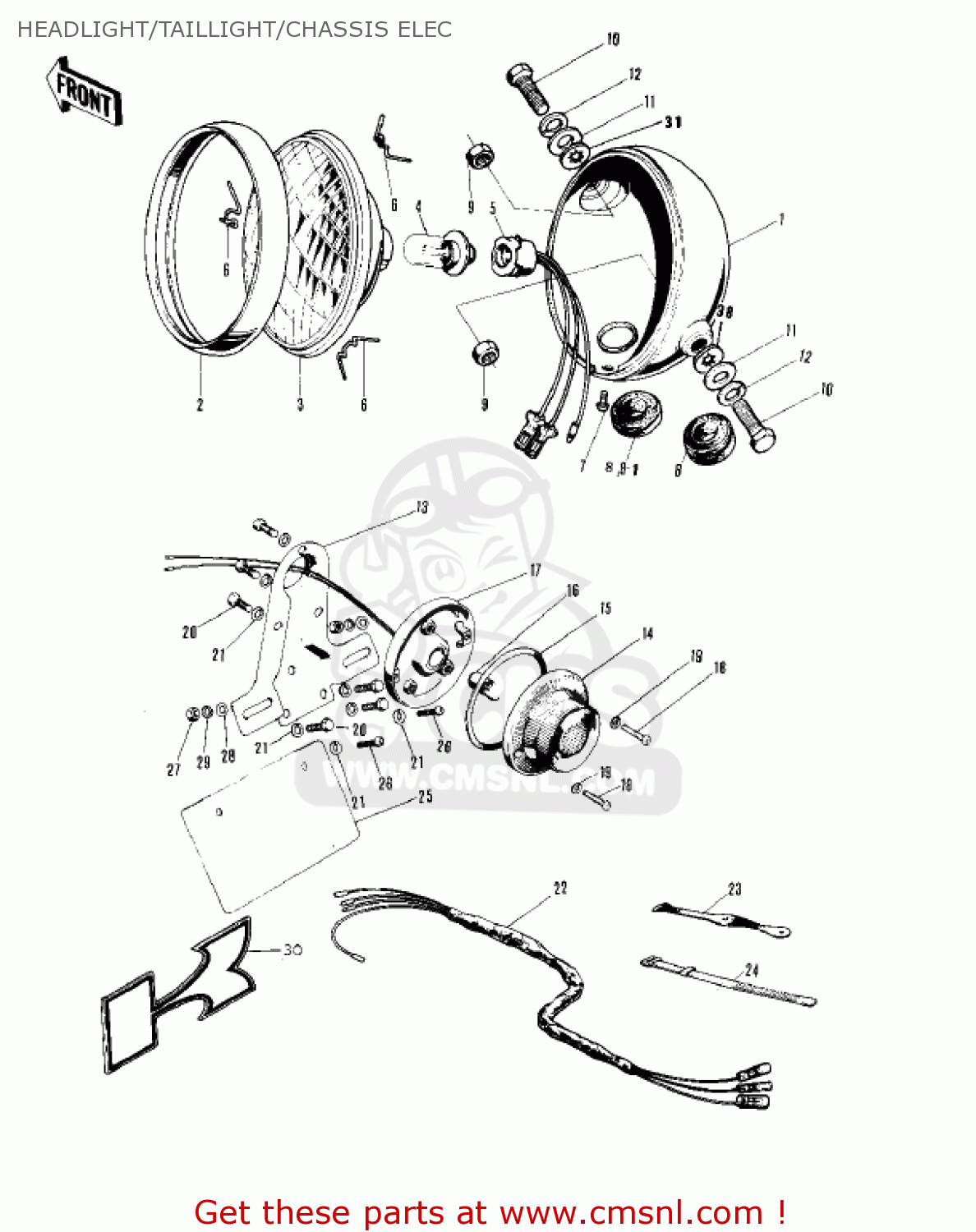

HEADLIGHT/TAILLIGHT/CHASSIS ELEC

ref

part #

description

quantity

1

23005100621
ref: 1

BODY-COMP-HEAD LAMP,F

€ 52.00

1

23005100621
ref: 1
KV75-A7

BODY-COMP-HEAD LAMP,F

€ 52.00

?

23004023
ref: ?
Includes items 2 - 7

LAMP-HEAD

€ 75.00

2

23006043
ref: 2

RIM,HEAD LAMP

€ 44.50

3

23007010
ref: 3

LENS-COMP

€ 42.00

4

92069031
ref: 4

BULB 6V 25/25W

€ 6.50

5

23008009
ref: 5

SOCKET-ASSY,HEAD LAMP

€ 12.50

6

23009014
ref: 6

SPRING,HEAD LAMP LENS

€ 3.50

6

23009014
ref: 6
KV75-A7

SPRING,HEAD LAMP LENS

€ 3.50

7

222E0508A
ref: 7

SCREW-OVL CNTSNK,5X8

€ 2.00

7

23019025
ref: 7
KV75-A7

SCREW,PAN HEAD,5X14

€ 1.50

8

23023007
ref: 8
1 REQ

GROMMET

€ 2.00

8-1

23023011
ref: 8-1
KV75-A7

GROMMET

€ 4.50

9

92016027
ref: 9

NUT,10MM

€ 2.00

10

112B1020
ref: 10

BOLT-UPSET,10X20

€ 3.00

11

411B1000
ref: 11

WASHER-PLAIN,10MM

€ 0.50

12

461F1000
ref: 12

WASHER-SPRING,10MM

€ 0.50

13

3502800510
ref: 13

BKT-TAIL LAMP,BLACK

€ 14.50

?

23025035
ref: ?
Includes items 14 -

LAMP ASSY-TAIL

€ 27.00

14

23026009
ref: 14

LENS,TAIL LAMP

€ 50.00

15

23028012
ref: 15

GASKET-TAIL LAMP (NAS)

€ 3.50

16

92069020
ref: 16

BULB 6V 10/3W

€ 4.00

17

23027025
ref: 17

SOCKET-TAIL LAMP

€ 19.50

18

220E0410A
ref: 18

SCREW-PAN HEAD,4X10

€ 2.00

19

461F0400
ref: 19

WASHER-SPRING,4MM

€ 0.50

20

112G0612
ref: 20

BOLT-UPSET

€ 2.50

21

410B0600
ref: 21
4 REQ

WASHER-PLAIN-SMALL,6M

€ 0.50

22

26001057
ref: 22

WIRING HARNESS-MAIN

€ 68.00

23

92072018
ref: 23

BAND-RUBBER

€ 1.50

24

92072030
ref: 24

BAND,SHORT

€ 3.00

25

35027006
ref: 25

BRACKET-LICENSE PLATE

€ 8.00

26

220B0612
ref: 26

SCREW-PAN HEAD,6X12

€ 1.00

27

311B0600
ref: 27

NUT,6MM

€ 0.50

27

311B0600
ref: 27
KV75-A9

NUT,6MM

€ 0.50

28

410B0600
ref: 28

WASHER-PLAIN-SMALL,6M

€ 0.50

29

461F0600
ref: 29

WASHER-SPRING,6MM

€ 0.50

30

56018176
ref: 30
NOT REQD

EMBLEM,LICENSE PLATE

€ 8.50

31

463H1000
ref: 31
KV75-A7

WASHER-LOCK,10MM

€ 0.50

HEADLIGHT/TAILLIGHT/CHASSIS ELEC

all assemblies
