FRAME/FRAME FITTINGS/SEAT ('71-'
KV75A6 1977

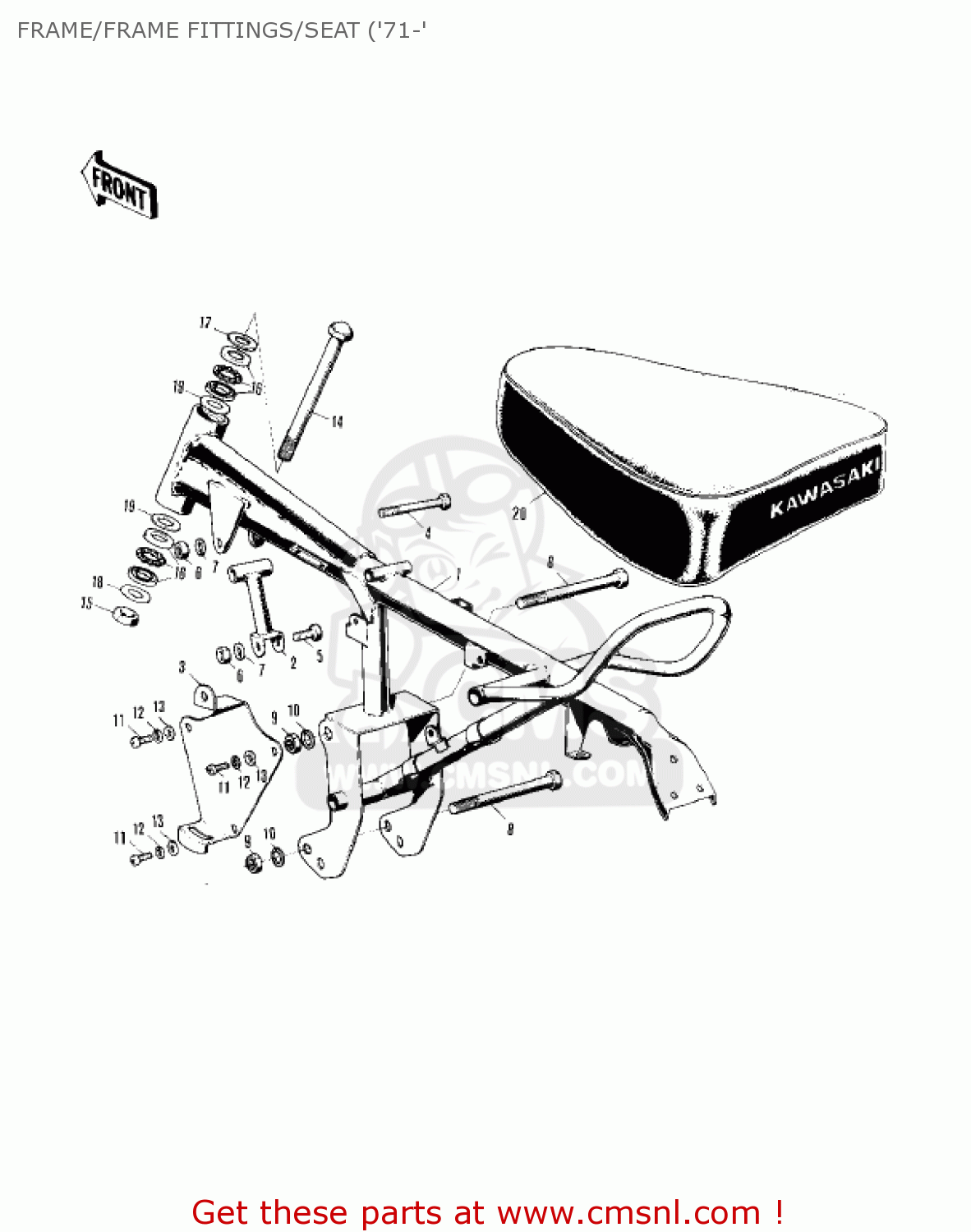

Frame/frame fittings/seat ('71-' diagram KV75A6 1977
FRAME/FRAME FITTINGS/SEAT ('71-' KV75A6 1977
×
prices are in EUR
ref
part #
description
quantity
1
32002144
ref: 1
MT1/MT1A
FRAME
€ 621.50
1
32002056
ref: 1
MT1B/C
FRAME
€ 0.00
2
31076016
ref: 2
TUBE-DOWN
€ 19.50
3
32094006
ref: 3
MT1/MT1A
BRACKET-OIL TANK
€ 6.50
3
32094007
ref: 3
MT1B/C
OIL TANK BRACKET
€ 0.00
4
920011226
ref: 4
BOLT,HEX HEAD,8X85
€ 1.50
5
920011578
ref: 5
BOLT,FLANGED,8X40
€ 4.00
6
311B0800
ref: 6
NUT,8MM
€ 0.50
7
461F0800
ref: 7
WASHER-SPRING,8MM
€ 0.50
8
920011602
ref: 8
BOLT,FLANGED,10X110
€ 7.50
9
314B1000
ref: 9
NUT,10MM
€ 0.50
10
461F1000
ref: 10
WASHER-SPRING,10MM
€ 0.50
11
220B0612
ref: 11
SCREW-PAN HEAD,6X12
€ 1.00
12
461F0600
ref: 12
WASHER-SPRING,6MM
€ 0.50
13
410B0600
ref: 13
WASHER-PLAIN-SMALL,6M
€ 0.50
14
92001156
ref: 14
BOLT,STEERING HEAD
€ 12.00
15
92019012
ref: 15
NUT,LOCK,16MM
€ 11.00
16
92119001
ref: 16
THRUST BEARING,#PC40
€ 14.00
17
411D1600
ref: 17
WASHER-PLAIN,16MM
€ 2.00
18
411B1600
ref: 18
WASHER-PLAIN,16MM
€ 2.00
19
92022179
ref: 19
WASHER-PLAIN,25MM
€ 7.00
19
920271119
ref: 19
MT1C
COLLAR,STEERING
€ 6.00
20
53002024
ref: 20
SEAT
€ 58.50
