CLUTCH ('71-'75)
KV75A6 1977

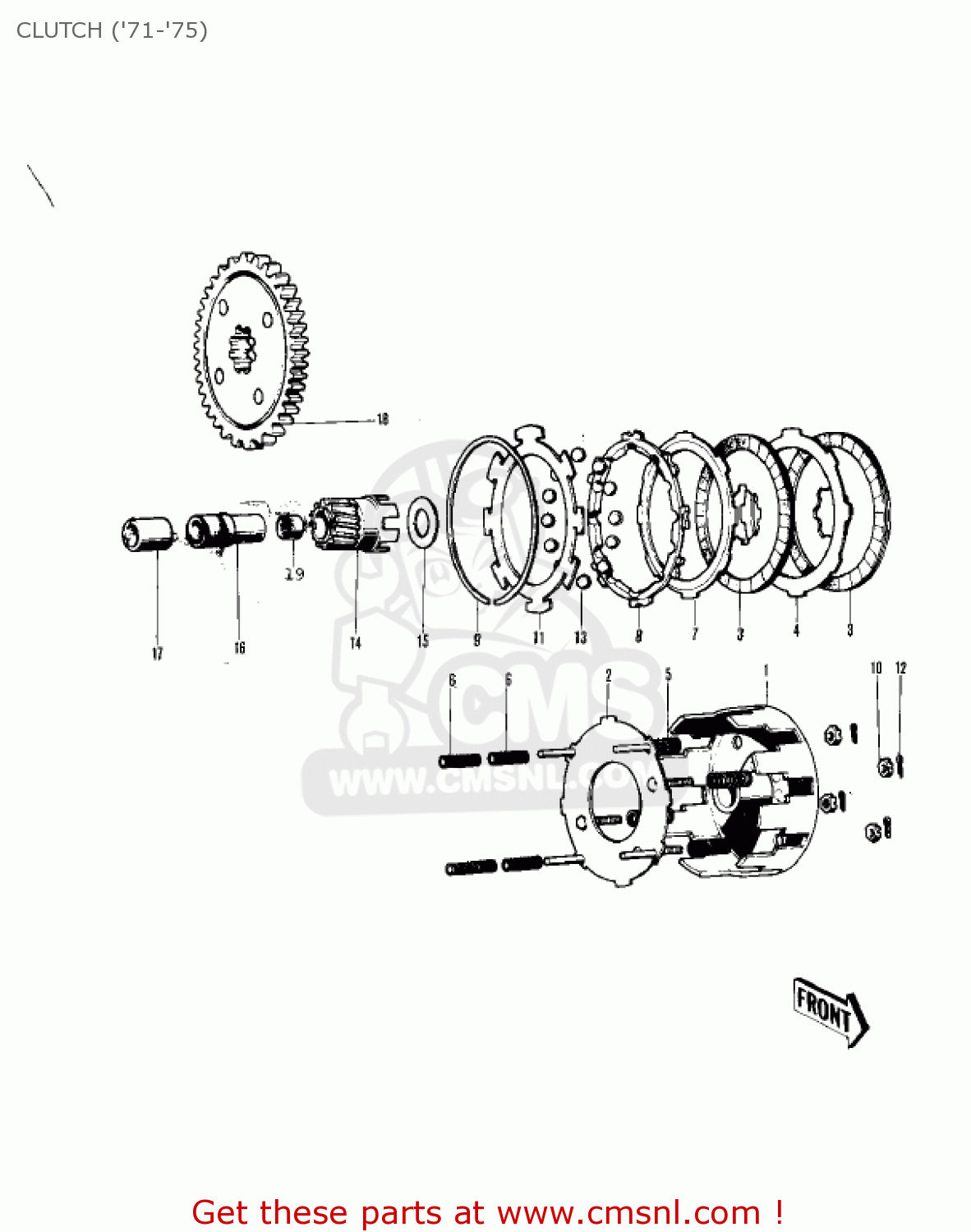

Clutch ('71-'75) diagram KV75A6 1977
CLUTCH ('71-'75) KV75A6 1977
×
prices are in EUR
ref
part #
description
quantity
13081
13081036
ref: 13081
Includes items 1 - 1
CLUTCH ASSY
€ 241.00
13095
13095028
ref: 13095
HOUSING-CLUTCH
€ 50.50
13083
13083006
ref: 13083
WHEEL-CLUTCH
€ 15.50
13088
13088024
ref: 13088
PLATE-CLUTCH FRICTION (MCA)
€ 9.00
13179
13179003
ref: 13179
PLATE,CLUTCH (NAS)
€ 46.00
92081
92081086
ref: 92081
SPRING-CLUTCH
€ 1.50
92081
92081087
ref: 92081
SPRING-RETURN
€ 2.50
13189
13189003
ref: 13189
HOLDER,BALL HOLDER
€ 57.50
13190
13190003
ref: 13190
PLATE,BALL GUIDE
€ 83.50
13191
13191003
ref: 13191
CIRCLIP
€ 9.50
13195
13195003
ref: 13195
NUT,6MM
€ 1.50
13198
13198003
ref: 13198
PLATE,BALL HOLDER
€ 13.50
550D1615
550D1615
ref: 550D1615
PIN-COTTER,1.6X15
€ 1.50
600A1200
600A1200
ref: 600A1200
BALL-STEEL,3/8
€ 0.50
13084
13084003
ref: 13084
Includes items 14 an
HUB ASSY-CLUTCH
€ 115.50
92022
92022142
ref: 92022
WASHER-THRUST
€ 4.50
13215
13215005
ref: 13215
BUSH-CLUTCH
€ 26.00
92027
92027125
ref: 92027
COLLAR
€ 7.50
13216
13216004
ref: 13216
GEAR ASSY-CLUTCH
€ 100.00
92117
92117001
ref: 92117
BEARING,N RC121610
€ 50.00
