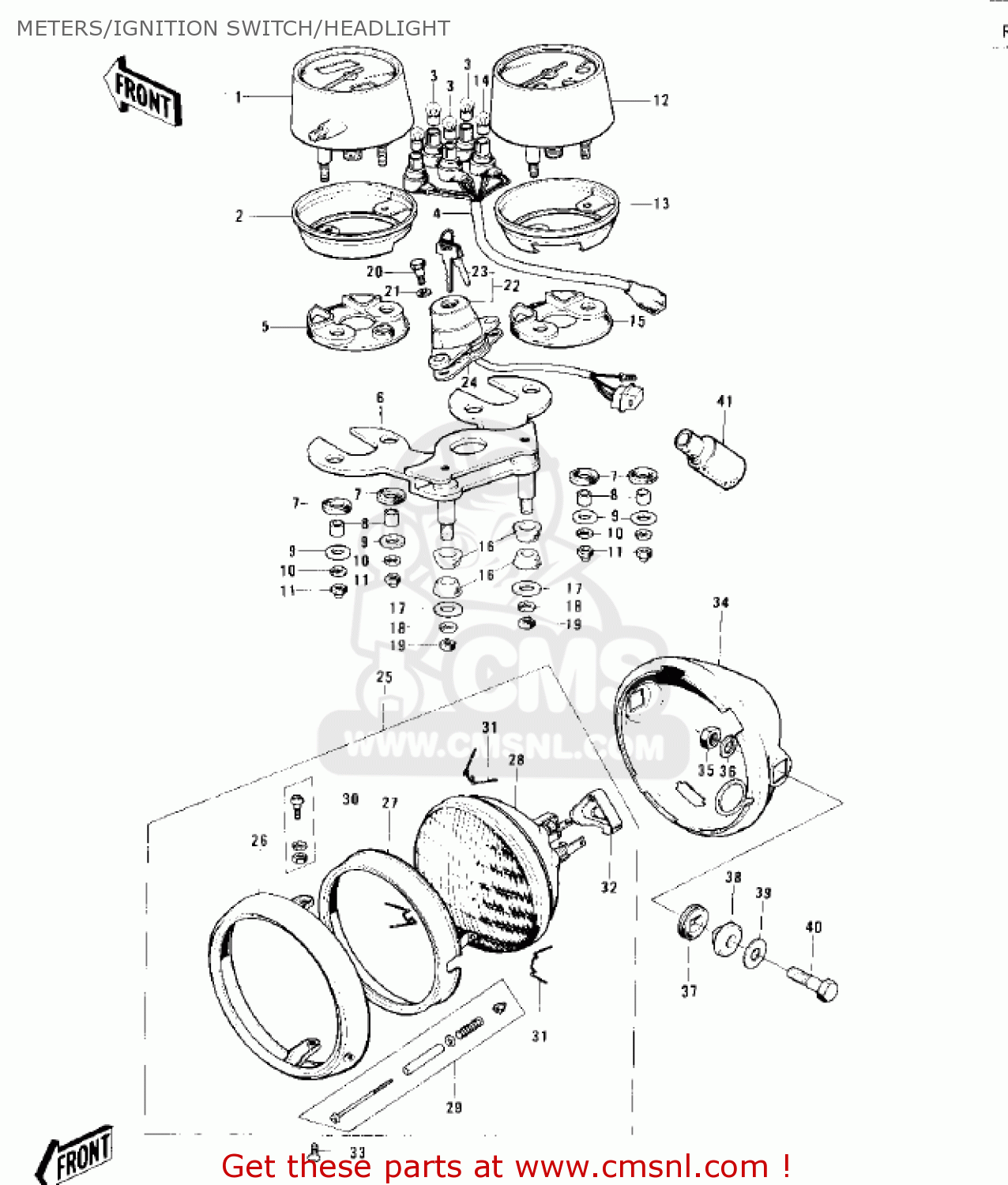

METERS/IGNITION SWITCH/HEADLIGHT

ref

part #

description

quantity

1

25005110
ref: 1

SPEEDOMETER ASSY,MPH

€ 165.00

1

25005112
ref: 1

SPEEDOMETER ASSY,KPH

€ 186.00

2

25012017
ref: 2

COVER,SPEEDOMETER

€ 23.00

3

92069024
ref: 3

BULB 6V 1.5W

€ 3.00

4

25011038
ref: 4

SOCKET,SPEEDOMETER

€ 29.00

5

25019018
ref: 5

DAMPER,SPEEDOMETER

€ 7.00

6

25008034
ref: 6

BRACKET-METER

€ 29.00

7

25019019
ref: 7

DAMPER,METER

€ 4.50

8

25021004
ref: 8

COLLAR,5.5X7.5X12.2

€ 3.00

9

92022285
ref: 9

WASHER,5.2X18X1.2

€ 4.50

10

461F0500
ref: 10
N/R KE125-A4~

WASHER-SPRING,5MM

€ 0.50

11

322N0500
ref: 11

NUT-CAP,5MM

€ 2.00

12

25015027
ref: 12

TACHOMETER ASSY

€ 146.50

13

25012018
ref: 13

COVER,TACHOMETER

€ 22.50

14

92069053
ref: 14

BULB 6V 3W

€ 3.00

15

25019020
ref: 15

DAMPER RUBBER,METER

€ 5.50

16

92075248
ref: 16

DAMPER,METER BRACKET

€ 3.50

17

92022237
ref: 17

WASHER-PLAIN

€ 2.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

311B0600
ref: 19

NUT,6MM

€ 0.50

20

92007026
ref: 20

BOLT-HEX HEAD,6MM

€ 6.00

21

410B0800
ref: 21

WASHER-PLAIN-SMALL,8M

€ 0.50

22

27005059
ref: 22

IGNITION SWITCH ASSEMBLY

€ 118.50

22

270051023
ref: 22
KE125-A6

IGNITION SWITCH ASSEMBLY

€ 50.00

22

27005080
ref: 22
USE FOR CANADIAN MAR

IGNITION SWITCH ASSEMBLY

€ 113.50

23

2700805431
ref: 23
KE125-A3/A4/A5

KEY SET,#431

€ 14.00

23

2700805450
ref: 23
KE125-A3/A4/A5

KEY SET,#450

€ 14.00

23

270081024
ref: 23
KE125-A6

KEY-LOCK,BLANK

€ 14.00

23

270081025
ref: 23
KE125-A6

KEY-LOCK,BLANK

€ 14.00

23

270081026
ref: 23
KE125-A6

KEY-LOCK,BLANK

€ 10.50

23

270081027
ref: 23
KE125-A6

KEY-LOCK,BLANK

€ 10.50

24

92075077
ref: 24

DAMPER RUBBER

€ 7.00

25

23003021
ref: 25

HEADLAMP,UNIT

€ 309.00

26

23006042
ref: 26

RIM,HEAD LAMP

€ 43.00

27

23072002
ref: 27

RETAINER,SEALED BEAM

€ 29.50

28

23007055
ref: 28

LENS-COMP,4020 MARK

€ 60.00

29

230135001
ref: 29

SCREW ASSY,FOCUS AJST

€ 10.50

30

23013007
ref: 30

SCREW ASY,LENS UNIT

€ 3.50

31

23009015
ref: 31

SPRING,HEAD LAMP LENS

€ 3.50

32

23081001
ref: 32

COVER,HD LAMP SOCKET

€ 6.50

33

23019025
ref: 33

SCREW,PAN HEAD,5X14

€ 1.50

34

2300505021
ref: 34

HEADLAMP BODY,FLAT BLACK

€ 140.50

35

314B1000
ref: 35

NUT,10MM

€ 0.50

36

461F1000
ref: 36

WASHER-SPRING,10MM

€ 0.50

37

23066011
ref: 37

DAMPER

€ 3.50

38

23052005
ref: 38

COLLAR,L=9.6

€ 8.50

39

411D1000
ref: 39

WASHER-PLAIN,10MM

€ 3.00

40

92007041
ref: 40

BOLT,HEX HEAD,10X30

€ 7.00

41

26009008
ref: 41

COVER,WIRING HARNESS

€ 3.50
