CRANKSHAFT/PISTON/ROTARY VALVE (
KS125-A 1975 USA CANADA

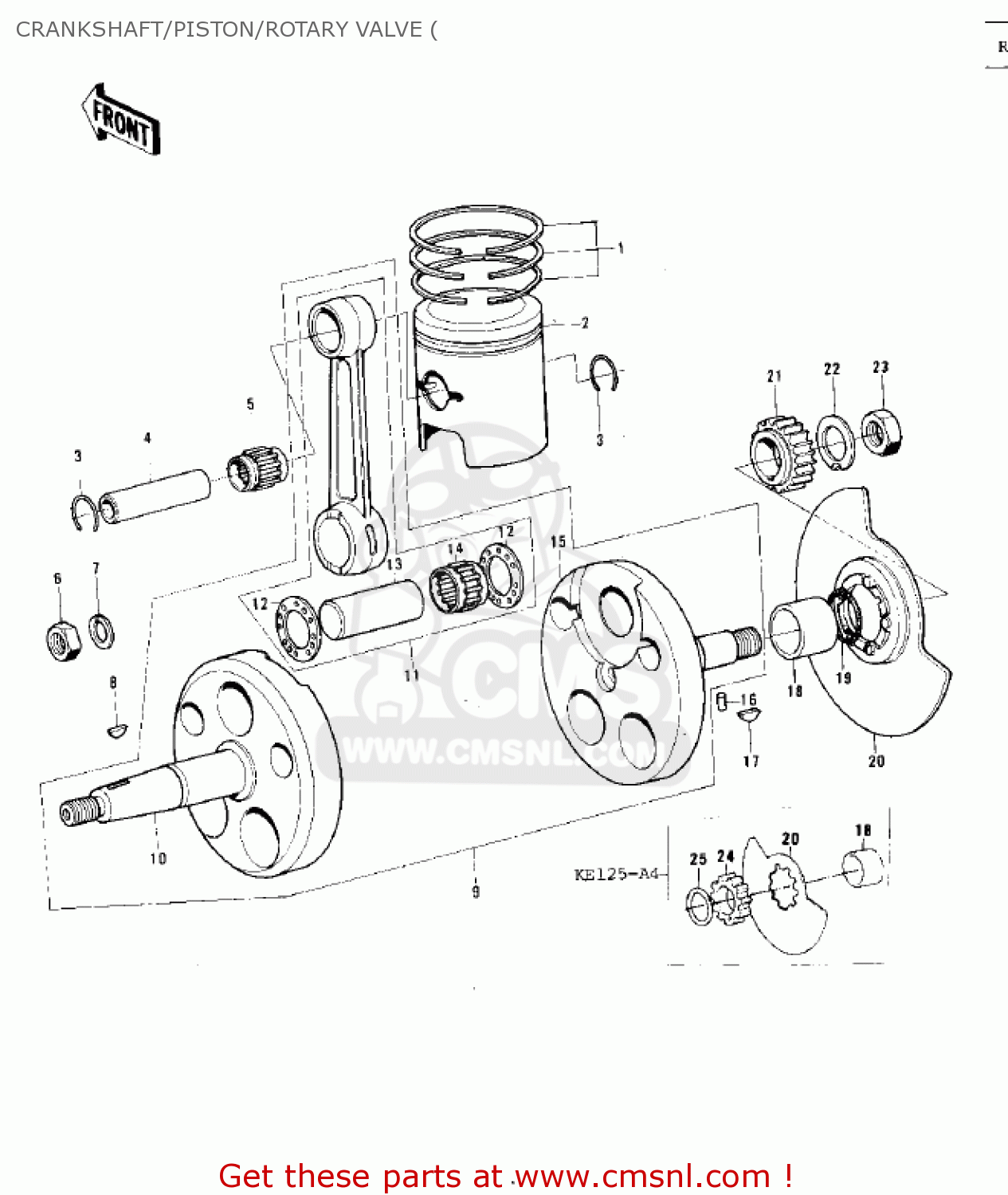

Crankshaft/piston/rotary valve ( diagram KS125-A 1975 USA CANADA
CRANKSHAFT/PISTON/ROTARY VALVE ( KS125-A 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13008050
ref: 1
RING-SET-PISTON,STD
€ 33.00
1
130085010
ref: 1
KE125-A6
RING-SET-PISTON,STD
€ 39.50
1
13025054
ref: 1
RING SET,0.020 O.S
€ 39.00
1
13024055
ref: 1
RING-SET-PISTON LL,O/
€ 29.50
2
13001072
ref: 2
PISTON-ENGINE,STD
€ 56.00
2
130011006
ref: 2
KE125-A6
ENGINE PISTON,STD
€ 30.00
2
13029068
ref: 2
PISTON-ENGINE-L,O/S 0
€ 76.50
2
13027062
ref: 2
PISTON-ENGINE-LL,O/S
€ 85.50
3
92036003
ref: 3
CIRCLIP-PISTON PIN
€ 0.50
4
130021002
ref: 4
PIN-PISTON
€ 13.00
4
130021002
ref: 4
KE125-A5
PIN-PISTON
€ 13.00
5
13033035
ref: 5
BEARING-NEEDLE,UR1412
€ 16.00
5
13033035
ref: 5
KE125-A4/A5
BEARING-NEEDLE,UR1412
€ 16.00
5
13033035
ref: 5
KE125-A6
BEARING-NEEDLE,UR1412
€ 16.00
6
314B1000
ref: 6
NUT,10MM
€ 0.50
6
314B1000
ref: 6
KE125-A4
NUT,10MM
€ 0.50
7
461F1000
ref: 7
WASHER-SPRING,10MM
€ 0.50
8
510A3200
ref: 8
KEY-WOODRUFF
€ 1.50
9
130311003
ref: 9
CRANKSHAFT-COMP
€ 423.00
10
13037059
ref: 10
CRANKSHAFT,LH
€ 135.50
11
130445003
ref: 11
SET-CONNECTING ROD
€ 153.50
12
92025005
ref: 12
SHIM,20X34.5X1.0
€ 4.50
13
13035033
ref: 13
PIN-CRANK
€ 17.00
14
130341001
ref: 14
72KT064
BEARING-NEEDLE,KT2027
€ 24.00
15
130371084
ref: 15
CRANKSHAFT,R.H
€ 119.50
16
610A0410
ref: 16
ROLLER,4X10
€ 2.50
17
92038003
ref: 17
WOODRUFF KEY-PRY PINI
€ 1.50
18
92027220
ref: 18
COLLAR,R.H CRANKSHFT
€ 28.50
18
920271077
ref: 18
KE125-A4
COLLAR,20X25X12.5
€ 14.00
19
670B2016
ref: 19
O RING,16MM
€ 1.00
20
12001025
ref: 20
VALVE,ROTARY DISC
€ 57.00
20
12002029
ref: 20
KE125-A4
VALVE-ROTARY
€ 15.50
21
130971040
ref: 21
22T
GEAR-PRIMARY SPUR,22T
€ 86.00
22
92024003
ref: 22
WASHER,CLAW,12.5X25X0
€ 2.50
23
92015006
ref: 23
NUT,12MM
€ 3.50
24
920271245
ref: 24
KE125-A4/A5
COLLAR,ROTARY VALVE
€ 15.50
24
920271170
ref: 24
KE125-A6
COLLAR,ROTARY VALVE
€ 12.00
25
92026131
ref: 25
KE125-A4/A5
WASHER, BALANCER
€ 3.50
