GEAR CHANGE DRUM/SHIFT FORK(S)

KMX200-A3A 1989 EUROPE FG GR NR

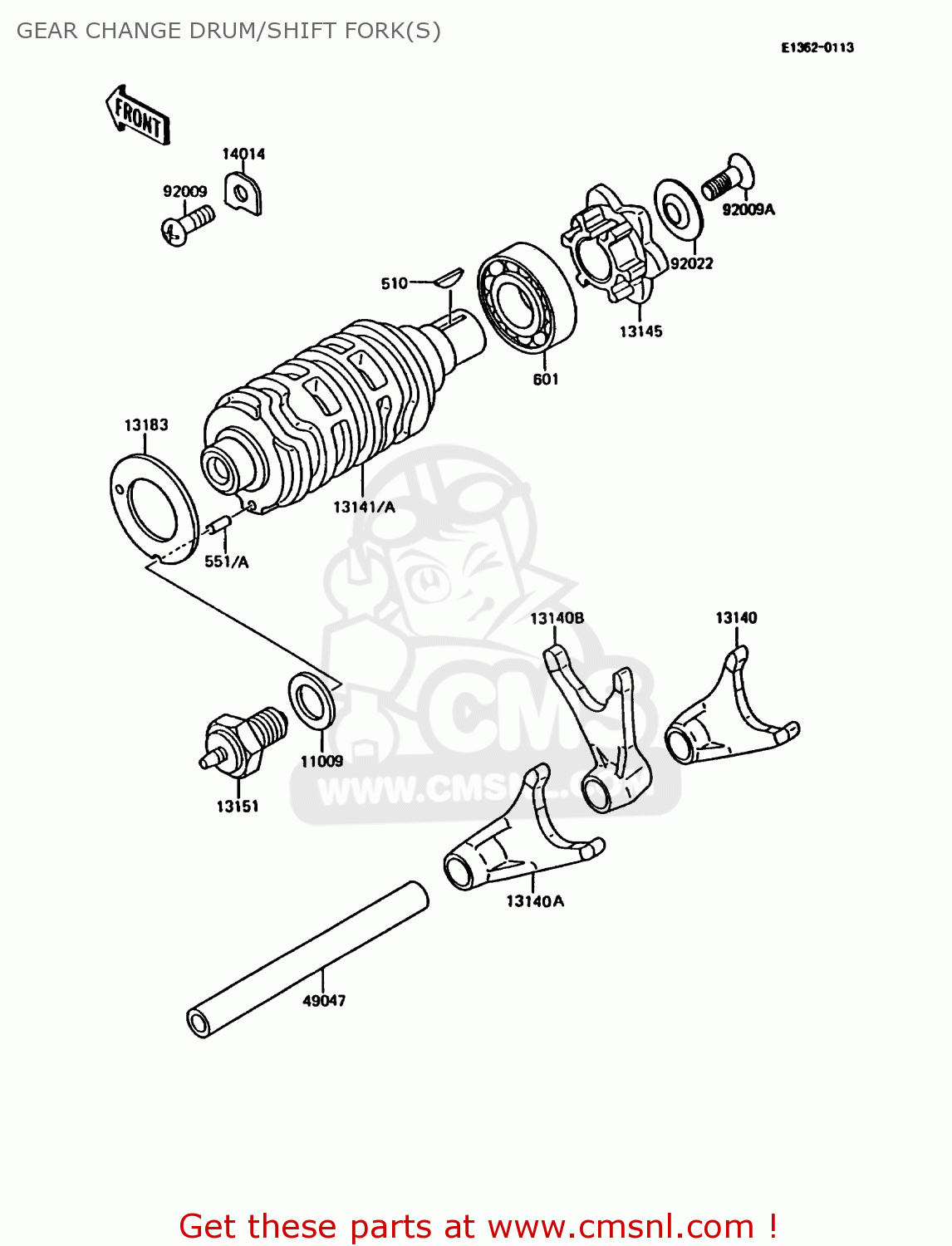

Gear change drum/shift fork(s) diagram KMX200-A3A 1989 EUROPE FG GR NR

prices are in EUR

ref

part #

description

quantity

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

551

551A0308
ref: 551

PIN-DOWEL,3X8

€ 0.50

551A

551A0310
ref: 551A

PIN-DOWEL

€ 1.50

601

601B6003U
ref: 601

BEARING-BALL,#6003UC3

€ 21.50

11009

92065058
ref: 11009

GASKET, 10,5X16X1 (NAS)

€ 2.50

13140

131401150
ref: 13140

FORK-SHIFT,LOW-3RD

€ 70.00

13140A

131401151
ref: 13140A

FORK-SHIFT,2ND-4TH

€ 68.50

13140B

131401152
ref: 13140B

FORK-SHIFT,5TH-TOP

€ 70.50

13141

131411131
ref: 13141

DRUM-CHANGE

€ 51.50

13141A

131411161
ref: 13141A

DRUM-CHANGE

€ 95.50

13145

131451059
ref: 13145

CAM-CHANGE DRUM

€ 32.50

13151

131511007
ref: 13151

SWITCH,NEUTRAL

€ 9.00

13183

131831066
ref: 13183

PLATE

€ 11.50

14014

140141066
ref: 14014

PLATE-POSITION

€ 2.50

49047

490471068
ref: 49047

ROD-SHIFT

€ 13.00

92009

920091266
ref: 92009

SCREW

€ 2.50

92009A

920091360
ref: 92009A

SCREW,6X16

€ 2.50

92022

920221792
ref: 92022

WASHER

€ 3.00
