CYLINDER HEAD/CYLINDER
KMX200-A3A 1989 EUROPE FG GR NR

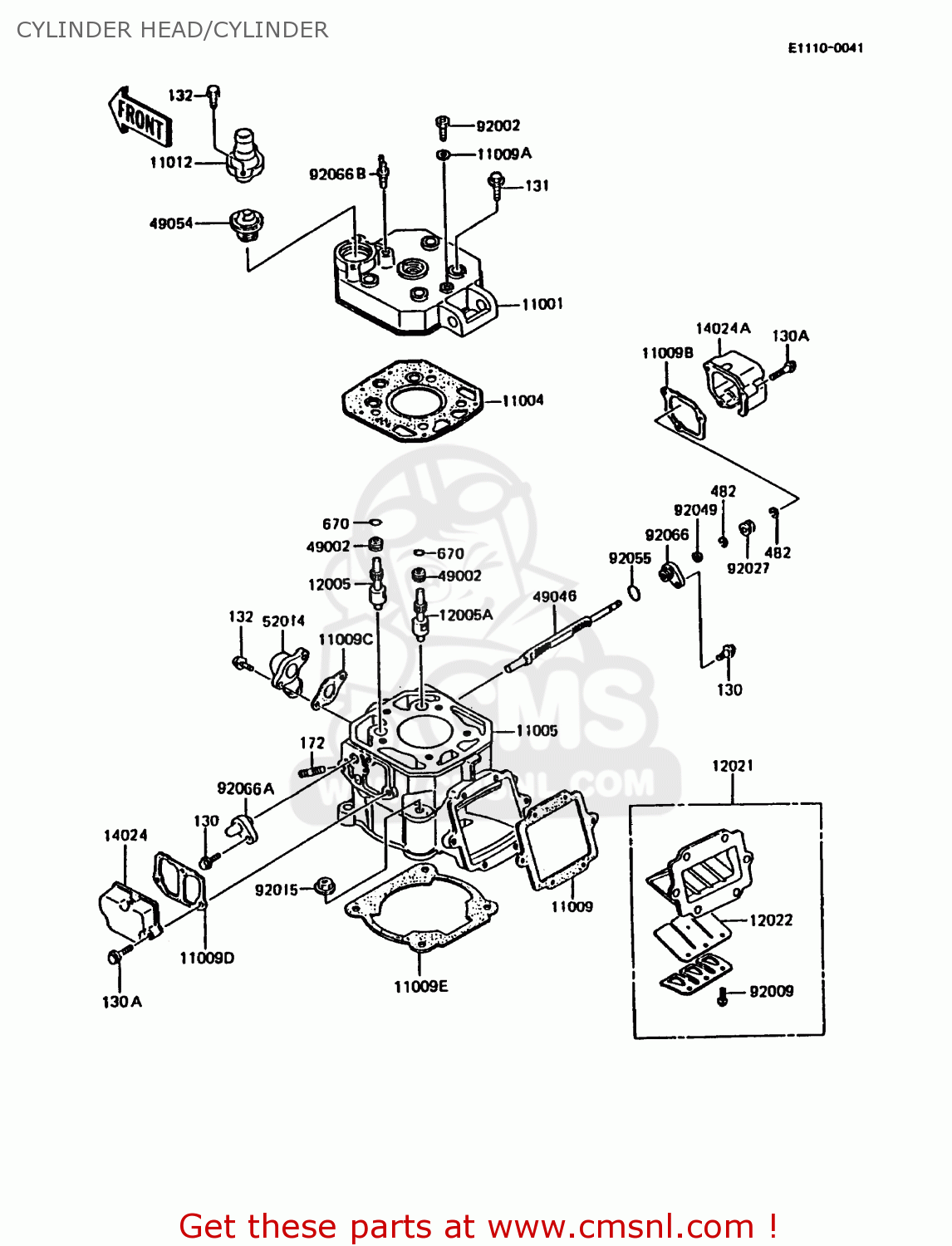

Cylinder head/cylinder diagram KMX200-A3A 1989 EUROPE FG GR NR
CYLINDER HEAD/CYLINDER KMX200-A3A 1989 EUROPE FG GR NR
×
prices are in EUR
ref
part #
description
quantity
130
130G0516
ref: 130
BOLT-FLANGED
€ 0.50
130A
130J0530
ref: 130A
BOLT-FLANGED
€ 2.50
131
131S0850
ref: 131
BOLT-FLANGED
€ 5.00
132
132J0616
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
172
172G0822
ref: 172
BOLT-STUD,8X22
€ 1.50
482
482J4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
670
670B2018
ref: 670
O RING,18MM
€ 1.00
11001
110011294
ref: 11001
HEAD-CYLINDER
€ 150.50
11004
110041170
ref: 11004
GASKET-HEAD (NAS)
€ 17.50
11005
110051574
ref: 11005
CYLINDER-ENGINE
€ 683.50
11009
110091263
ref: 11009
GASKET,REED VALVE (MCA)
€ 6.00
11009A
110091298
ref: 11009A
GASKET,6X12X10 (NAS)
€ 3.00
11009B
110091479
ref: 11009B
GASKET,RH,GOVERNOR (MCA)
€ 5.50
11009C
110091584
ref: 11009C
GASKET,ELBOW (MCA)
€ 3.50
11009D
110091641
ref: 11009D
GASKET,LH,RESONATOR (MCA)
€ 4.00
11009E
110091880
ref: 11009E
GASKET,CYLINDER BASE (NAS)
€ 11.00
11012
110121513
ref: 11012
CAP,THERMOSTAT
€ 18.50
12005
120051129
ref: 12005
VALVE-EXHAUST,LH
€ 38.00
12005A
120051130
ref: 12005A
VALVE-EXHAUST,RH
€ 38.00
12021
120211074
ref: 12021
VALVE-ASSY-REED
€ 122.00
12022
120221061
ref: 12022
VALVE-REED
€ 10.50
14024
140241622
ref: 14024
COVER,LH,RESONATOR
€ 24.00
14024A
140241650
ref: 14024A
COVER,RH,GOVERNOR
€ 33.00
49002
490021080
ref: 49002
GUIDE-VALVE
€ 9.50
49046
490461061
ref: 49046
ROD-GOVERNOR
€ 52.00
49054
490541057
ref: 49054
THERMOSTAT
€ 46.00
52014
520141061
ref: 52014
ELBOW
€ 18.50
92002
920021222
ref: 92002
BOLT,6X10
€ 5.50
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92027
920271834
ref: 92027
COLLAR,GOVERNOR ROD
€ 11.50
92049
920491206
ref: 92049
SEAL-OIL,RSO-5.5 11 4
€ 7.50
92055
920551150
ref: 92055
O-RING, 10MM
€ 5.50
92066
920661254
ref: 92066
PLUG,GOVERNOR ROD,RH
€ 15.50
92066A
920661255
ref: 92066A
PLUG,GOVERNOR ROD,LH
€ 13.00
92066B
920661307
ref: 92066B
PLUG,SENSOR,WATER
€ 39.50
