CARBURETOR
KMX200-A3A 1989 EUROPE FG GR NR

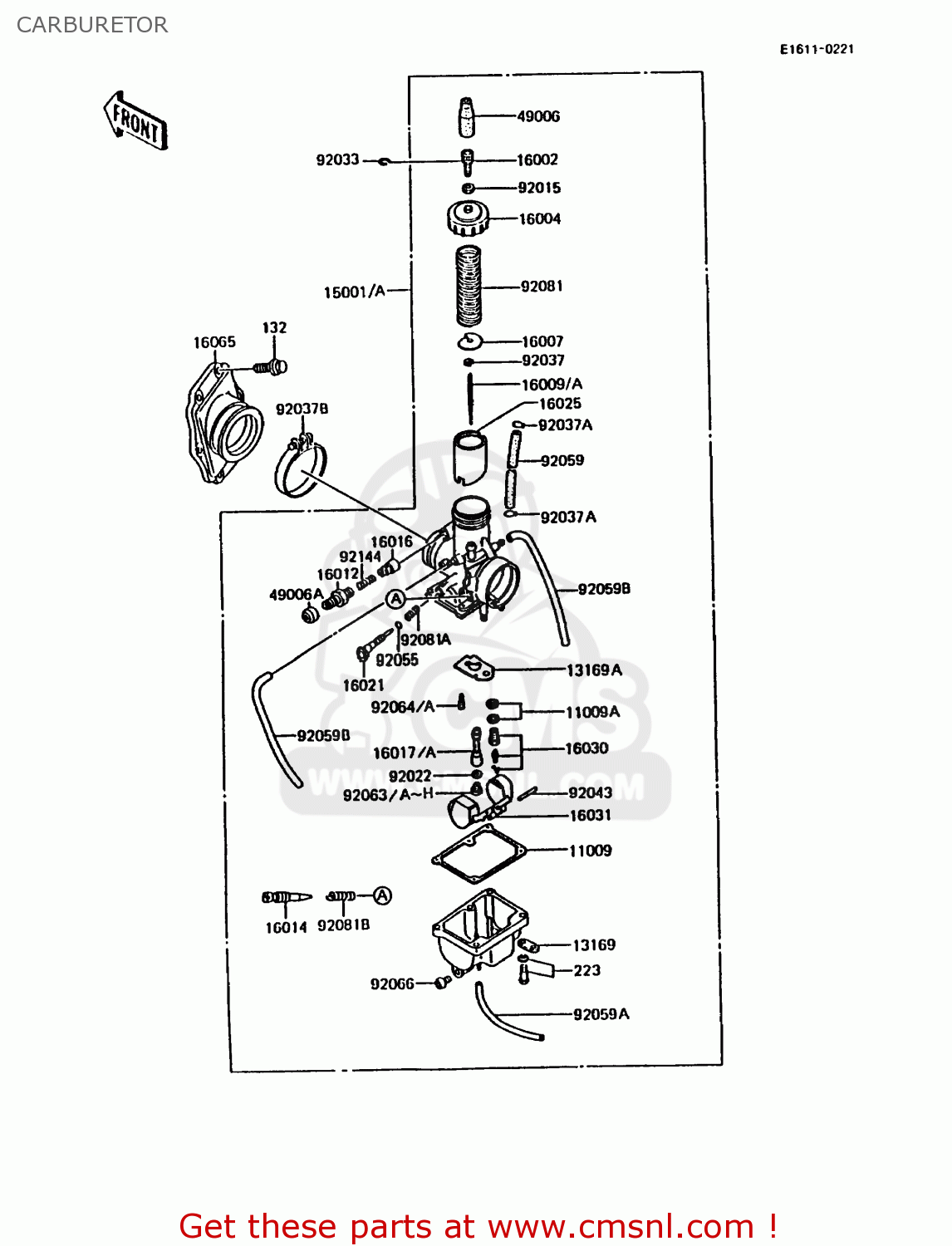

Carburetor diagram KMX200-A3A 1989 EUROPE FG GR NR
CARBURETOR KMX200-A3A 1989 EUROPE FG GR NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091147
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
11009A
16029004
ref: 11009A
WASHER-FLOAT VLV SEAT
€ 2.50
13169
131691226
ref: 13169
PLATE,TUBE CLAMP
€ 5.00
13169A
131691929
ref: 13169A
PLATE,LOCK
€ 7.00
15001
150011389
ref: 15001
EUGRNR
CARBURETOR-ASSY
€ 401.00
15001A
150011498
ref: 15001A
FG
CARBURETOR-ASSY,17PS
€ 375.00
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16007
16007023
ref: 16007
SPRING SEAT,THRTL VL
€ 7.00
16009
160091325
ref: 16009
FG
NEEDLE-JET,4FL44-2
€ 26.00
16009A
160091368
ref: 16009A
EUGRNR
NEEDLE-JET,4FL46-2
€ 19.00
16012
160121058
ref: 16012
CAP-STARTER PLUNGER
€ 21.00
16014
160141031
ref: 16014
SCREW-PILOT AIR
€ 12.00
16016
16016002
ref: 16016
PLUNGER,STARTER
€ 20.00
16017
160171320
ref: 16017
EUGRNR
JET-NEEDLE,O-4
€ 39.00
16017A
160171349
ref: 16017A
FG
JET-NEEDLE,O-4
€ 39.00
16021
160211042
ref: 16021
SCREW-THROTTLE STOP
€ 11.50
16025
160251129
ref: 16025
VALVE-THROTTLE,CA2.0
€ 87.00
16030
160301029
ref: 16030
VALVE-FLOAT,2.5
€ 29.50
16031
160311005
ref: 16031
FLOAT
€ 39.00
16065
160651145
ref: 16065
HOLDER-CARBURETOR
€ 57.50
49006
490061085
ref: 49006
BOOT,CARBURETOR
€ 22.00
49006A
490061203
ref: 49006A
BOOT
€ 9.50
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037072
ref: 92037A
CLAMP,TUBE
€ 4.00
92037B
920371527
ref: 92037B
CLAMP,43MM
€ 12.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92059
920591023
ref: 92059
HOSE,FUEL TAP DIAPHRA
€ 17.00
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
223
223B0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
92059A
920591754
ref: 92059A
TUBE,3X5X250
€ 5.50
92059B
920591755
ref: 92059B
TUBE,3X5X300
€ 6.00
92063
92063072
ref: 92063
FG
MAIN JET,#105R
€ 10.50
92063A
92063073
ref: 92063A
JET-MAIN,#107.5R
€ 9.50
92063B
92063074
ref: 92063B
FG
MAIN JET,#110R
€ 10.50
92063C
92063074
ref: 92063C
EUGRNR
MAIN JET,#110R
€ 10.50
92063D
92063075
ref: 92063D
EUGRNR
MAIN JET,#112.5R
€ 10.00
92063E
92063075
ref: 92063E
FG
MAIN JET,#112.5R
€ 10.00
92063F
92063075
ref: 92063F
FG
MAIN JET,#112.5R
€ 10.00
92063G
92063076
ref: 92063G
MAIN JET,#115R
€ 5.50
92063H
92063077
ref: 92063H
EUGRNR
JET-MAIN,#117.5R
€ 10.00
92064
92064032
ref: 92064
EUGRNR
PILOT JET #25
€ 12.50
92064A
920641020
ref: 92064A
FG
JET-PILOT,#A25
€ 12.50
92066
920661171
ref: 92066
PLUG,DRAIN
€ 10.50
92081
16006023
ref: 92081
SPRING,THROTTLE VALV
€ 10.00
92081A
920811152
ref: 92081A
SPRING,THROTTLE ADJST
€ 4.00
92081B
920811153
ref: 92081B
SPRING,AIR SCREW
€ 3.00
92144
921441075
ref: 92144
SPRING,STARTER PLUNGE
€ 6.50
