STAND(S)

KMX200-A3 1989 EUROPE UK FR FG GR NR

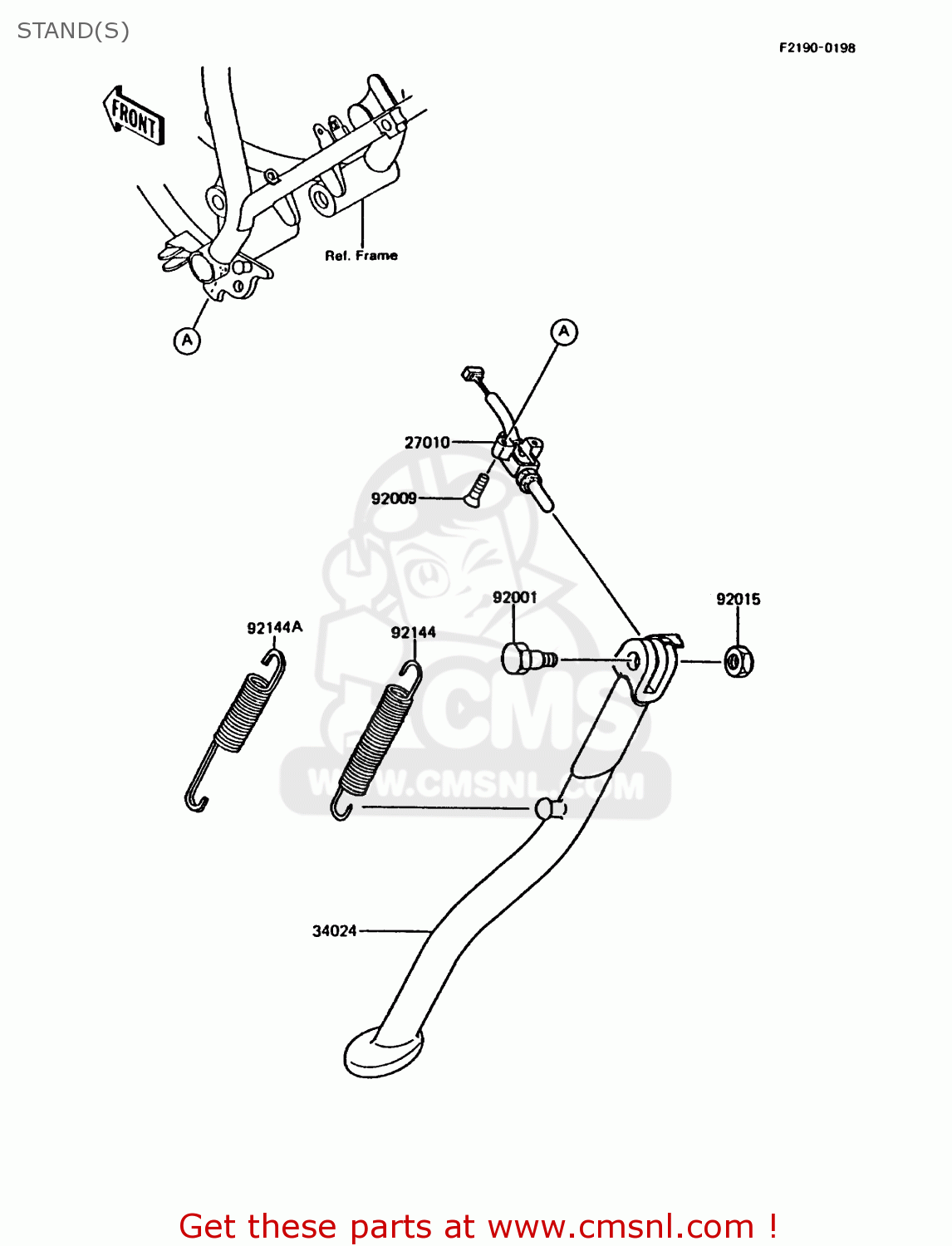

Stand(s) diagram KMX200-A3 1989 EUROPE UK FR FG GR NR

STAND(S) KMX200-A3 1989 EUROPE UK FR FG GR NR

STAND(S) KMX200-A3 1989 EUROPE UK FR FG GR NR

prices are in EUR

ref

part #

description

quantity

27010

270101247
ref: 27010

SWITCH,SIDE STAND

€ 51.00

34024

340241211
ref: 34024

STAND-SIDE

€ 48.00

92001

92003157
ref: 92001

BOLT,SIDE STAND FIT

€ 6.50

92009

920091359
ref: 92009

SCREW

€ 2.50

92015

92019021
ref: 92015

NUT,LOCK,10M/M

€ 2.00

92144

921441017
ref: 92144
EUFRGRNRUK

SPRING,SIDE STAND

€ 9.00

92144A

921441063
ref: 92144A
FG

SPRING,SIDE STAND

€ 9.50
