FRAME FITTINGS
KMX200-A3 1989 EUROPE UK FR FG GR NR

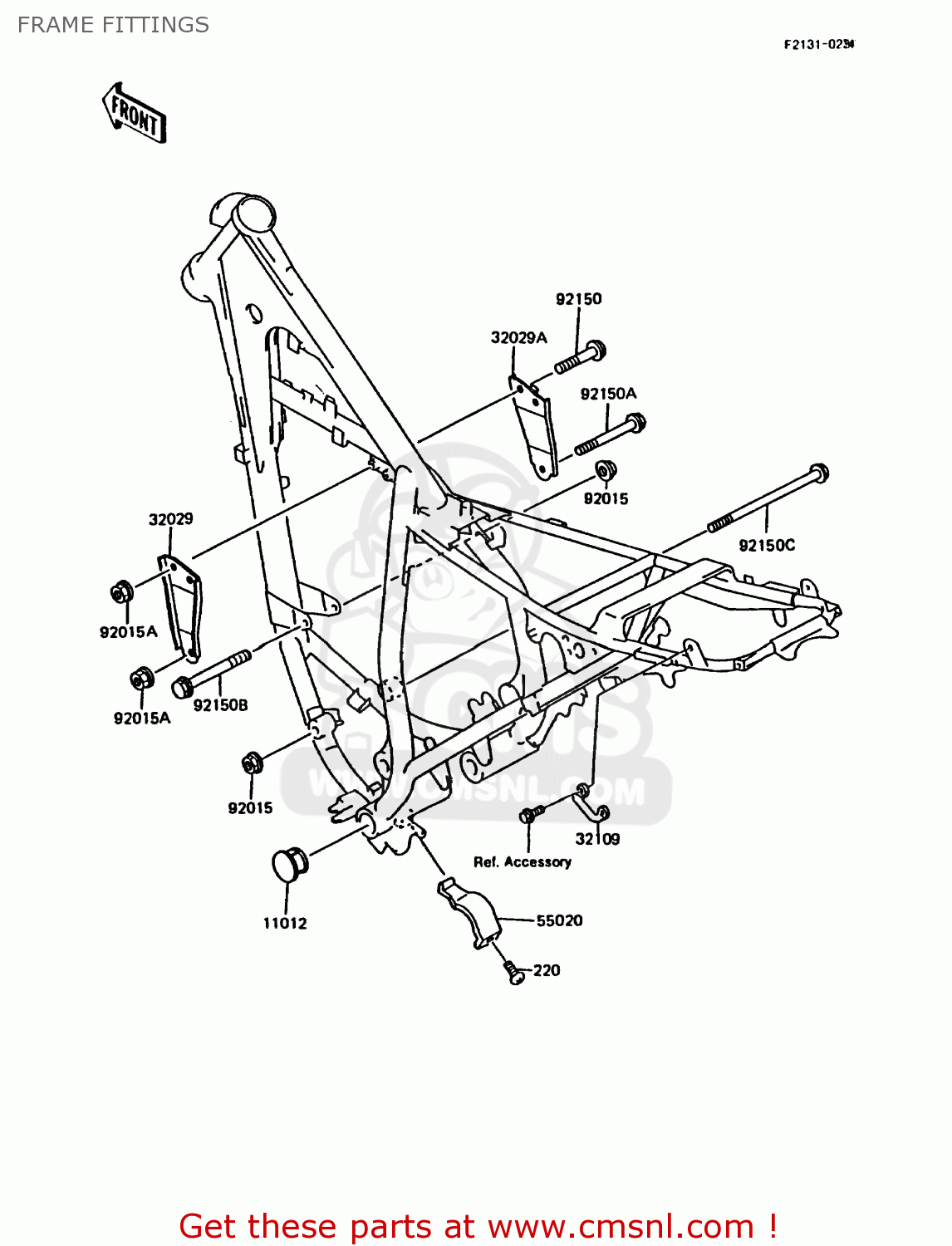

Frame fittings diagram KMX200-A3 1989 EUROPE UK FR FG GR NR
FRAME FITTINGS KMX200-A3 1989 EUROPE UK FR FG GR NR
×
prices are in EUR
ref
part #
description
quantity
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
11012
110121559
ref: 11012
CAP,32X14
€ 4.50
32029
320291482
ref: 32029
BRACKET-ENGINE,LH
€ 13.00
32029A
320291483
ref: 32029A
BRACKET-ENGINE,RH
€ 13.50
32109
321091149
ref: 32109
FG
GRIP-FRAME
€ 17.00
55020
550201231
ref: 55020
GUARD,FRAME CLOSS
€ 7.00
92015
920151668
ref: 92015
FG
NUT
€ 3.00
92015A
920151696
ref: 92015A
FG
NUT,FLANGED,LOCK,8MM
€ 3.00
92015A
920151696
ref: 92015A
EUFRGRNRUK
NUT,FLANGED,LOCK,8MM
€ 3.00
92150
921501034
ref: 92150
BOLT,FLANGED,8X45
€ 3.00
92150A
921501035
ref: 92150A
BOLT,FLANGED,8X65
€ 5.50
92150B
921501036
ref: 92150B
BOLT,FLANGED,8X65
€ 3.50
92150C
921501037
ref: 92150C
BOLT,FLANGED,8X135
€ 4.50
