IGNITION SWITCH
KMX200-A3 1989 EUROPE UK FR FG GR NR

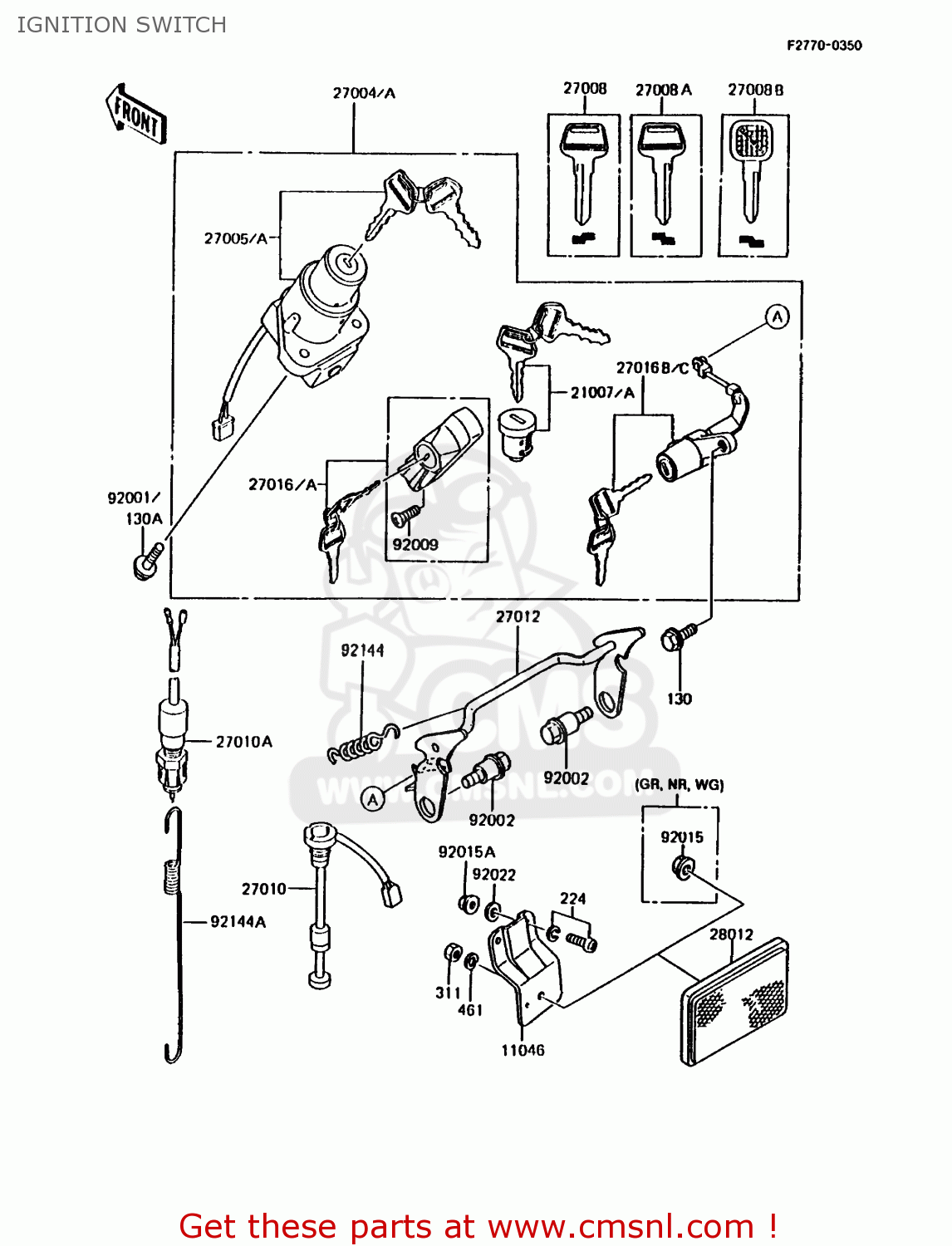

Ignition switch diagram KMX200-A3 1989 EUROPE UK FR FG GR NR
IGNITION SWITCH KMX200-A3 1989 EUROPE UK FR FG GR NR
×
prices are in EUR
ref
part #
description
quantity
11046
110461285
ref: 11046
EUFRUK
BRACKET,REFLECTOR
€ 8.50
21007
210075022
ref: 21007
EUFRGRUK
ROTOR,LOCK,TANK CAP
€ 50.50
21007A
210075023
ref: 21007A
FGNR
ROTOR,LOCK,TANK CAP
€ 50.50
27004
270045325
ref: 27004
EUFRGRUK
SWITCH-ASSY
€ 190.00
27004A
270045343
ref: 27004A
FGNR
SWITCH-ASSY
€ 199.00
27005
270051103
ref: 27005
EUFRGRUK
SWITCH-ASSY-IGNITION
€ 264.00
27005A
270051104
ref: 27005A
FGNR
SWITCH-ASSY-IGNITION
€ 134.00
27008
270081034
ref: 27008
EUFRGRUK
KEY,BLANK
€ 13.00
27008A
270081035
ref: 27008A
EUFRGRUK
KEY,BLANK
€ 12.50
27008B
270081105
ref: 27008B
FGNR
KEY-LOCK,BLANK
€ 12.50
27010
270101041
ref: 27010
SWITCH,OIL LEVEL
€ 43.50
27010A
270101215
ref: 27010A
SWITCH,BRAKE LAMP
€ 23.00
27012
270121389
ref: 27012
HOOK,SEAT
€ 20.50
27016
270165029
ref: 27016
EUFRGRUK
LOCK ASSY,HELMET
€ 73.50
27016A
270165100
ref: 27016A
FGNR
LOCK-ASSY,HELMET
€ 73.50
27016B
270165115
ref: 27016B
EUFRGRUK
LOCK-ASSY,SEAT
€ 64.00
27016C
270165116
ref: 27016C
FGNR
LOCK-ASSY,SEAT
€ 64.00
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
92001
920011465
ref: 92001
FGNR
BOLT
€ 3.00
130
130D0608
ref: 130
BOLT-FLANGED
€ 0.50
130A
130D0614
ref: 130A
EUFRGRUK
BOLT-FLANGED,6X14
€ 0.50
224
224C0614
ref: 224
EUFRUK
SCREW-PAN-WP-CROS
€ 2.50
311
311B0500
ref: 311
EUFRUK
NUT-HEX
€ 0.50
461
461F0500
ref: 461
EUFRUK
WASHER-SPRING,5MM
€ 0.50
92002
920021596
ref: 92002
BOLT,*
€ 6.00
92009
920091547
ref: 92009
SCREW,5X18
€ 3.50
92015
920151259
ref: 92015
FGGRNR
NUT,FLANGED,5MM
€ 2.50
92015A
920151367
ref: 92015A
EUFRUK
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
EUFRUK
WASHER,6.5X20X1.6
€ 1.00
92144
921441120
ref: 92144
SPRING,SEAT LOCK RETU
€ 4.00
92144A
921441191
ref: 92144A
SPRING,BRAKE LAMP SWI
€ 5.50
