SUSPENSION
KMX125-B3 1988 UNITED KINGDOM FR

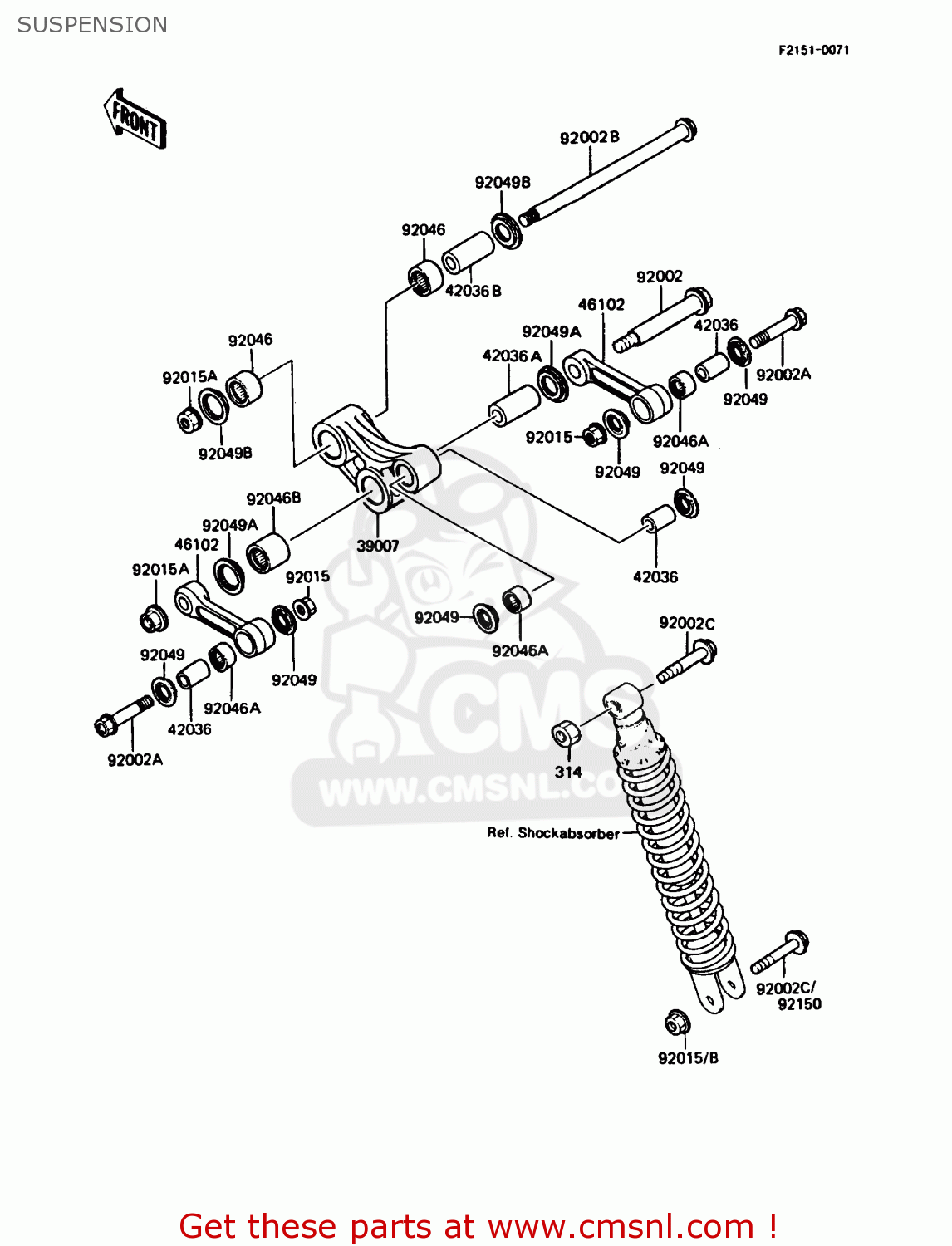

Suspension diagram KMX125-B3 1988 UNITED KINGDOM FR
SUSPENSION KMX125-B3 1988 UNITED KINGDOM FR
×
prices are in EUR
ref
part #
description
quantity
314
314G1200
ref: 314
NUT-HEX-FINE
€ 2.50
39007
390071116
ref: 39007
ARM-SUSP,UNI TRAK
€ 165.00
42036
420361077
ref: 42036
SLEEVE,ARM,RR
€ 11.50
42036A
420361184
ref: 42036A
SLEEVE,15.1X25X53
€ 22.00
42036B
420361203
ref: 42036B
SLEEVE,20.1X28X53
€ 24.50
46102
461021218
ref: 46102
ROD,SUSPENSION
€ 52.50
92002
920021750
ref: 92002
BOLT,ARM,14MM
€ 23.00
92002A
920021757
ref: 92002A
BOLT,ROD,12MM
€ 8.50
92002B
920021839
ref: 92002B
BOLT
€ 63.50
92002C
920021840
ref: 92002C
BOLT
€ 6.00
92015
920151368
ref: 92015
NUT,12MM
€ 4.50
92015A
920151459
ref: 92015A
NUT,14MM
€ 6.50
92015B
920151706
ref: 92015B
NUT
€ 5.00
92046
920461111
ref: 92046
BEARING-NEEDLE,BM2817
€ 21.50
92046A
920461112
ref: 92046A
BEARING-NEEDLE,BM2027
€ 21.50
92046B
920461158
ref: 92046B
BEARING-NEEDLE,BHM253
€ 26.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92049A
920491166
ref: 92049A
SEAL-OIL
€ 7.50
92049B
920491181
ref: 92049B
SEAL-OIL
€ 7.50
92150
921501129
ref: 92150
BOLT,FLANGED,12X58
€ 7.00
