FRAME

KMX125-B3 1988 UNITED KINGDOM FR

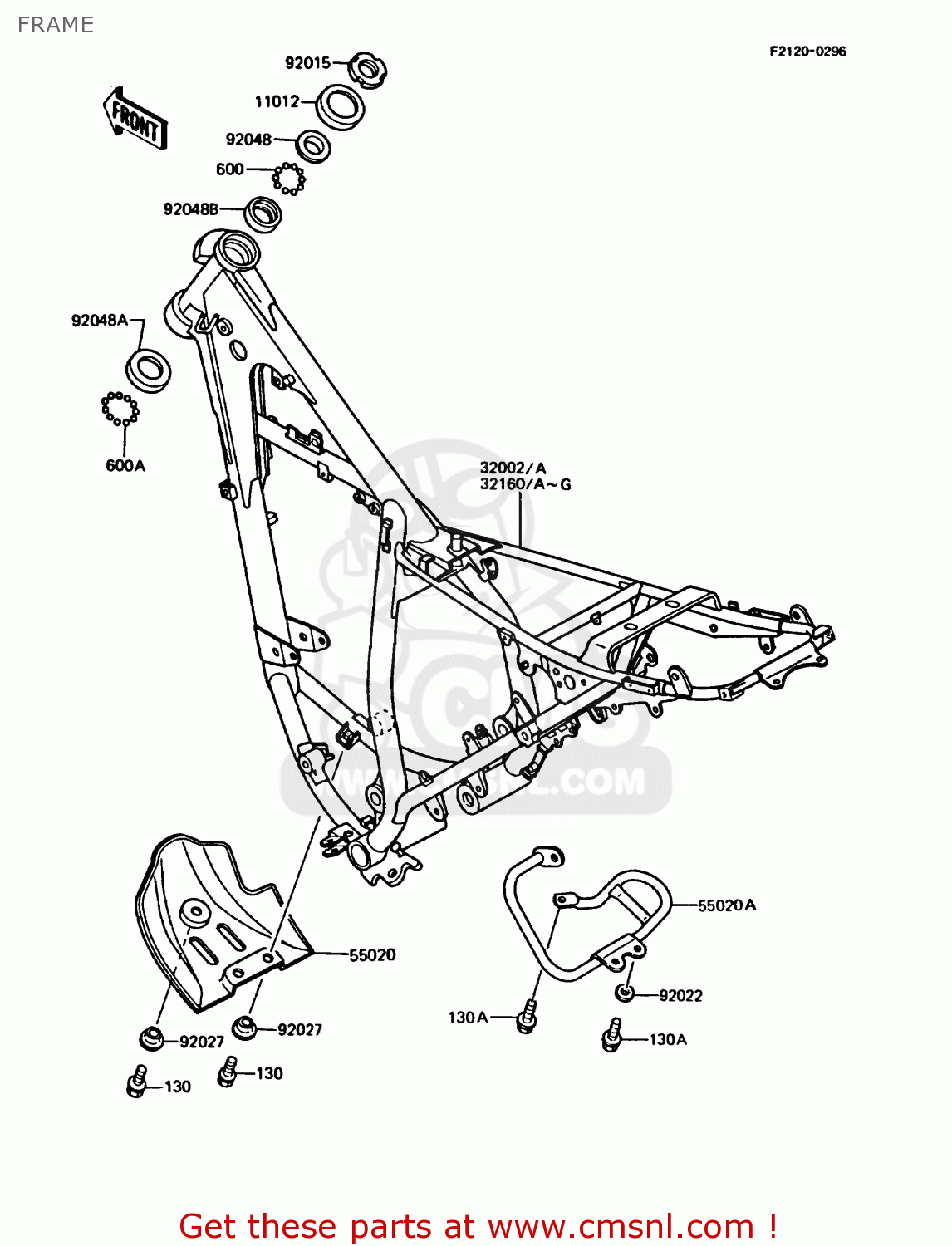

Frame diagram KMX125-B3 1988 UNITED KINGDOM FR

prices are in EUR

ref

part #

description

quantity

130

130D0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50

600A

600A0800
ref: 600A

BALL-STEEL,1/4

€ 0.50

11012

46098018
ref: 11012

CAP,STEERING STEM

€ 4.00

32160

320021982CC
ref: 32160

FRAME-COMP,L.GREEN

€ 894.00

32160A

320021982CD
ref: 32160A

FRAME-COMP,F.RED

€ 786.50

32160C

320021982X3
ref: 32160C

FRAME-COMP,SILVER NO.

€ 786.50

55020

550201230
ref: 55020

GUARD,ENGINE

€ 12.50

92015

92090022
ref: 92015

NUT,STEERING LOCK,25M

€ 18.50

92027

92027122
ref: 92027

COLLAR,L=4.7

€ 5.50

92048

92047014
ref: 92048

RACE,STEERING STEM BE

€ 12.50

92048A

92048005
ref: 92048A

RACE-STEERING BEARING

€ 11.50

92048B

92048009
ref: 92048B

RACE,STRG STM

€ 14.00
