Genuine KMX Kawasaki Parts delivered quickly!


FUEL TANK

KMX125-B3 1988 UNITED KINGDOM FR

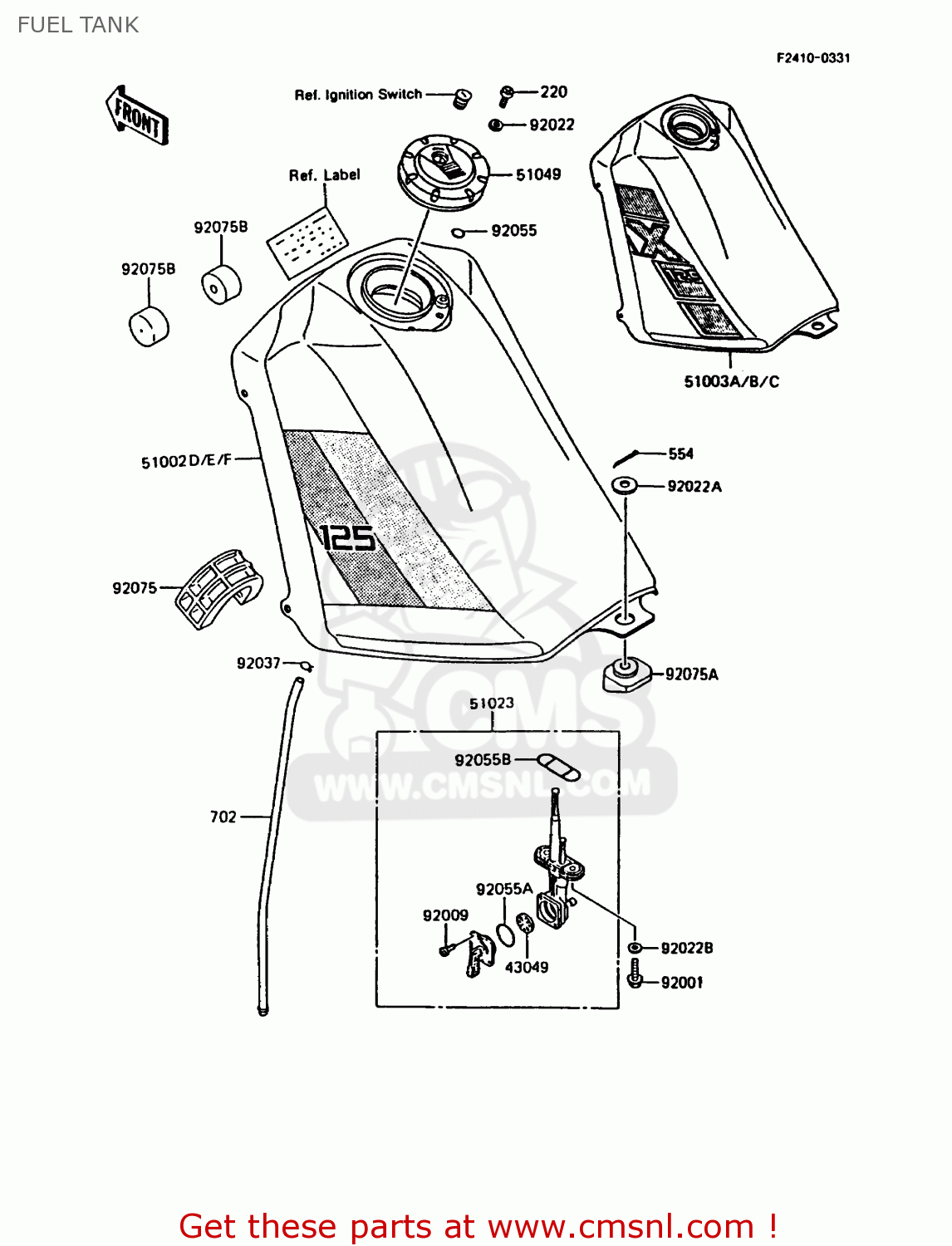

Fuel tank diagram KMX125-B3 1988 UNITED KINGDOM FR

FUEL TANK KMX125-B3 1988 UNITED KINGDOM FR
FUEL TANK KMX125-B3 1988 UNITED KINGDOM FR
FUEL TANK KMX125-B3 1988 UNITED KINGDOM FR
prices are in EUR
ref
part #
description
quantity
220
220D0510
ref: 220
SCREW-PAN-CROS
220D0510
€ 0.50
554
554A1000
ref: 554
PIN-SNAP,10MM
554A1000
€ 1.00
702
702A05650
ref: 702
TUBE, 5X1430
€ 50.00
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
430491017
€ 5.00
51002D
5100253967F
ref: 51002D
TANK-COMP-FUEL,L.GREE
5100253967F
€ 564.00
51002E
510025397F1
ref: 51002E
TANK-COMP-FUEL,P.WHIT
€ 392.00
51002F
510025422H8
ref: 51002F
TANK-COMP-FUEL,EBONY
€ 387.50
51023
510231127
ref: 51023
TAP-ASSY,FUEL
510231127
€ 70.50
51049
510491077
ref: 51049
CAP-TANK,FUEL
€ 89.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92009
920091123
ref: 92009
SCREW,3X3
920091123
€ 1.00
92022
920221038
ref: 92022
WASHER,PLAIN
920221038
€ 2.50
92022A
920221137
ref: 92022A
WASHER,10.5X24X1.6
920221137
€ 2.50
92022B
92022183
ref: 92022B
WASHER,6.2X11X1.5
92022183
€ 2.50
92037
920371610
ref: 92037
CLAMP
920371610
€ 1.50
92055
920551023
ref: 92055
ORING
920551023
€ 2.50
92055A
920551111
ref: 92055A
RING-O,FUEL TAP LEVER
920551111
€ 3.50
92055B
920551112
ref: 92055B
RING-/,FUEL TAP PACKI
920551112
€ 3.00
92075
920751151
ref: 92075
DAMPER,FUEL TANK
920751151
€ 13.00
92075A
920751831
ref: 92075A
DAMPER
920751831
€ 6.50
92075B
920751934
ref: 92075B
DAMPER,FUEL TANK
920751934
€ 4.50
