IGNITION SWITCH
KMX125-B1 1986 UNITED KINGDOM FR

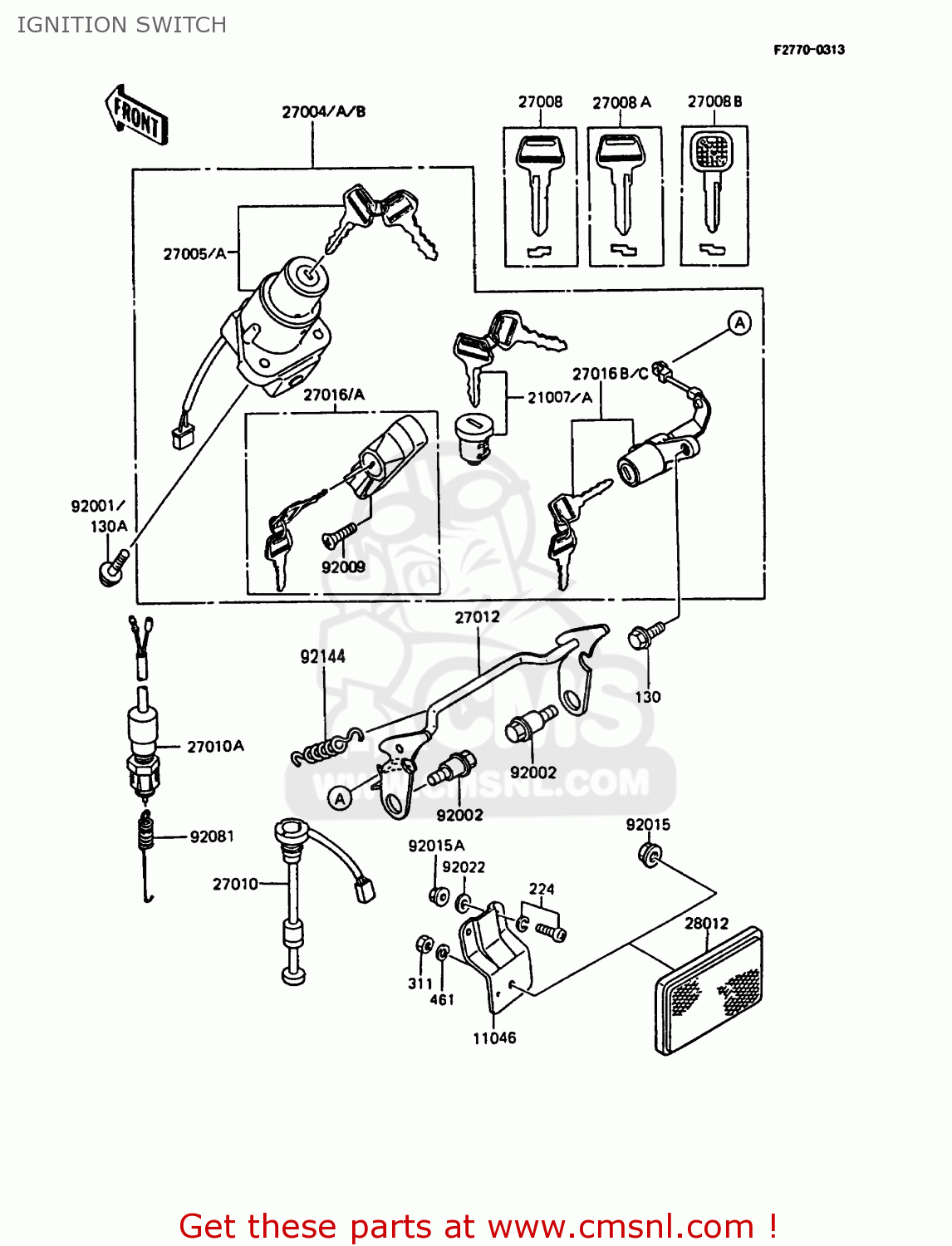

Ignition switch diagram KMX125-B1 1986 UNITED KINGDOM FR
IGNITION SWITCH KMX125-B1 1986 UNITED KINGDOM FR
×
prices are in EUR
ref
part #
description
quantity
27004
270045288
ref: 27004
SWITCH-ASSY
€ 118.50
27005
270051103
ref: 27005
SWITCH-ASSY-IGNITION
€ 264.00
27008
270081034
ref: 27008
KEY,BLANK
€ 13.00
27008A
270081035
ref: 27008A
KEY,BLANK
€ 12.50
27010
270101041
ref: 27010
SWITCH,OIL LEVEL
€ 43.50
27010A
270101215
ref: 27010A
SWITCH,BRAKE LAMP
€ 23.00
27012
270121389
ref: 27012
HOOK,SEAT
€ 20.50
27016
270165029
ref: 27016
LOCK ASSY,HELMET
€ 73.50
27016B
270165115
ref: 27016B
LOCK-ASSY,SEAT
€ 64.00
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
92002
920021596
ref: 92002
BOLT,*
€ 6.00
92009
920091547
ref: 92009
SCREW,5X18
€ 3.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
130
130D0608
ref: 130
BOLT-FLANGED
€ 0.50
130A
130D0614
ref: 130A
BOLT-FLANGED,6X14
€ 0.50
92081
27011021
ref: 92081
SPRING,BRAKE LAMP SW
€ 15.50
92144
921441120
ref: 92144
SPRING,SEAT LOCK RETU
€ 4.00
