FUEL TANK

KMX125-B1 1986 UNITED KINGDOM FR

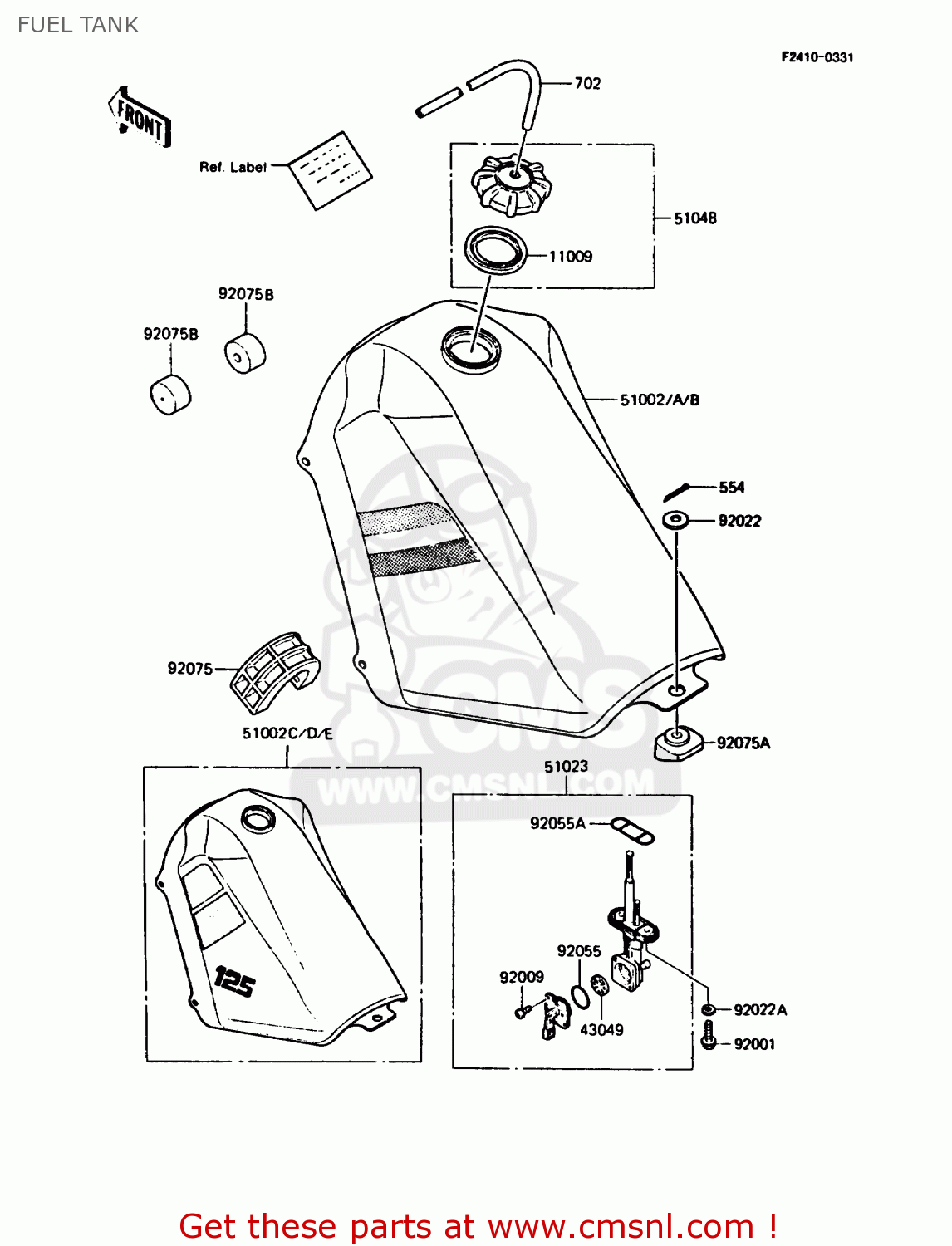

Fuel tank diagram KMX125-B1 1986 UNITED KINGDOM FR

FUEL TANK KMX125-B1 1986 UNITED KINGDOM FR
FUEL TANK KMX125-B1 1986 UNITED KINGDOM FR
FUEL TANK KMX125-B1 1986 UNITED KINGDOM FR
prices are in EUR
ref
part #
description
quantity
554
554A1000
ref: 554
PIN-SNAP,10MM
554A1000
€ 1.00
702
702A05400
ref: 702
TUBE,RUBBER,5X400
702A05400
€ 7.50
11009
51059006
ref: 11009
GASKET,FUEL TANK CAP (NAS)
51059006
€ 6.00
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
430491017
€ 5.00
51002
5100252297F
ref: 51002
TANK-COMP-FUEL,L.GREE
€ 385.00
51002A
510025230F1
ref: 51002A
TANK-COMP-FUEL,P.WHIT
€ 392.00
51002B
510025231H1
ref: 51002B
FR
TANK-COMP-FUEL,S.RED
€ 538.00
51023
510231127
ref: 51023
TAP-ASSY,FUEL
510231127
€ 70.50
51048
510481004
ref: 51048
CAP-ASSY-TANK,FUEL
510481004
€ 24.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92009
920091123
ref: 92009
SCREW,3X3
920091123
€ 1.00
92022
920221137
ref: 92022
WASHER,10.5X24X1.6
920221137
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
92022183
€ 2.50
92055
920551111
ref: 92055
RING-O,FUEL TAP LEVER
920551111
€ 3.50
92055A
920551112
ref: 92055A
RING-/,FUEL TAP PACKI
920551112
€ 3.00
92075
920751151
ref: 92075
DAMPER,FUEL TANK
920751151
€ 13.00
92075A
920751831
ref: 92075A
DAMPER
920751831
€ 6.50
92075B
920751934
ref: 92075B
DAMPER,FUEL TANK
920751934
€ 4.50
