Genuine KMX Kawasaki Parts delivered quickly!


HANDLEBAR

KMX125-B1 1986 UNITED KINGDOM FR

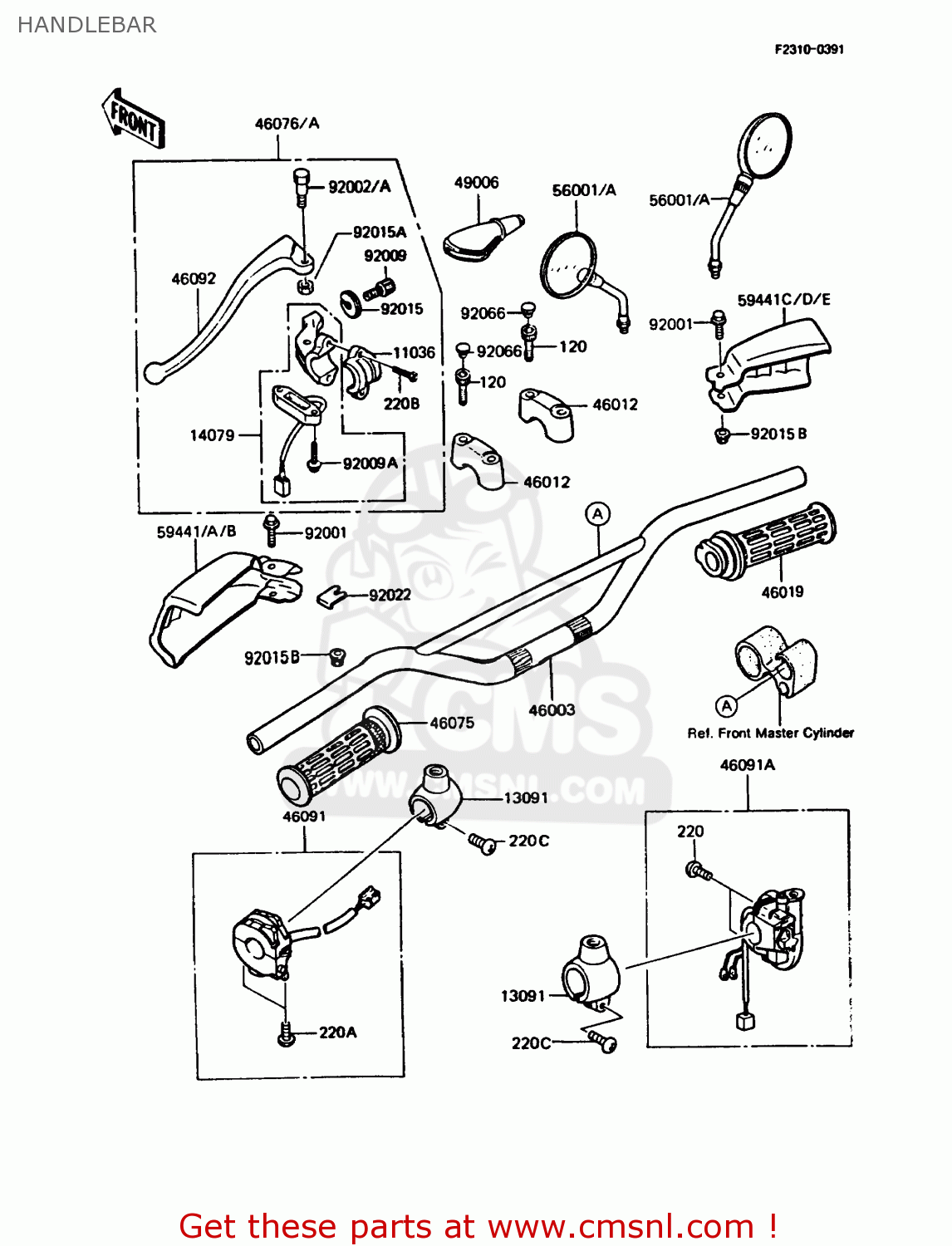

Handlebar diagram KMX125-B1 1986 UNITED KINGDOM FR

HANDLEBAR KMX125-B1 1986 UNITED KINGDOM FR
HANDLEBAR KMX125-B1 1986 UNITED KINGDOM FR
HANDLEBAR KMX125-B1 1986 UNITED KINGDOM FR
prices are in EUR
ref
part #
description
quantity
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
120S0830
€ 3.00
220
220B0518
ref: 220
SCREW-PAN HEAD,5X18
€ 2.50
220A
220B0522
ref: 220A
SCREW-PAN-CROS
220B0522
€ 0.50
220B
220C0514
ref: 220B
SCREW-PAN-CROS
220C0514
€ 1.00
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
110361297
€ 12.00
13091
130911255
ref: 13091
HOLDER,ENGINE STOP SW
130911255
€ 55.00
14079
140791055
ref: 14079
HOLDER-ASSY,CLUTCH
140791055
€ 34.00
46003
460031226
ref: 46003
HANDLE
€ 58.50
46012
460121102
ref: 46012
HOLDER-HANDLE,UPP
460121102
€ 17.00
46019
460191005
ref: 46019
GRIP-ASSY,THROTTLE
460191005
€ 26.00
46075
460751004
ref: 46075
GRIP,L.H.
460751004
€ 8.00
46076
460761138
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 47.50
46091
460911395
ref: 46091
HOUSING-ASSY-CONTROL,
460911395
€ 108.50
46091A
460911451
ref: 46091A
HOUSING-ASSY-CONTROL,
460911451
€ 52.50
46092
460921111
ref: 46092
LEVER-GRIP,CLUTCH
460921111
€ 13.00
49006
490061099
ref: 49006
BOOT,LEVER HOLDER
490061099
€ 12.50
56001A
560011286
ref: 56001A
MIRROR-ASSY
560011286
€ 40.00
92002
920021475
ref: 92002
BOLT,LEVER SET
920021475
€ 4.50
92009
46055009
ref: 92009
SCREW,CABLE ASJUST
46055009
€ 13.00
92009A
920091336
ref: 92009A
SCREW,TAPPING
920091336
€ 2.50
92015
46056006
ref: 92015
NUT,CABLE ADJUST NUT
46056006
€ 6.00
92015A
920151191
ref: 92015A
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92066
920661216
ref: 92066
PLUG,HANDLE HOLDER
920661216
€ 3.00
220C
220C0620
ref: 220C
SCREW-PAN-CROS,6X20,B
220C0620
€ 1.50
