TAILLIGHT(S)
KMX125-A4 1989 EUROPE UK GR NR SD ST

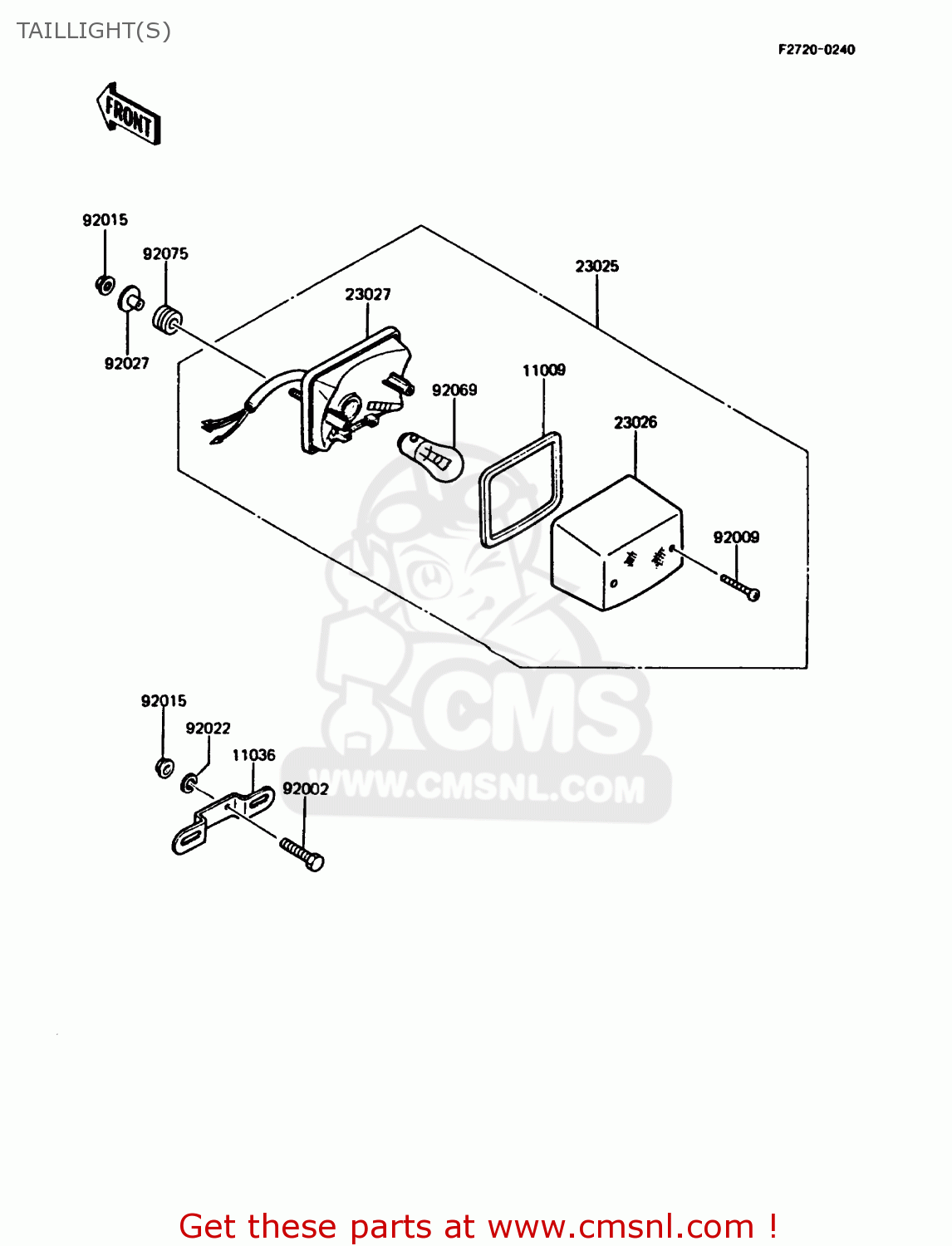

Taillight(s) diagram KMX125-A4 1989 EUROPE UK GR NR SD ST
TAILLIGHT(S) KMX125-A4 1989 EUROPE UK GR NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091078
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 4.50
11036
110361040
ref: 11036
BRACKET-A,LICENSE PLT
€ 13.00
23025
230251148
ref: 23025
LAMP-TAIL
€ 106.00
23026
230261081
ref: 23026
LENS,TAIL LAMP
€ 45.00
23027
230271073
ref: 23027
BODY-COMP-TAIL LAMP
€ 48.00
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92009
920091056
ref: 92009
SCREW,TAPPING
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
