FRAME
KMX125-A4 1989 EUROPE UK GR NR SD ST

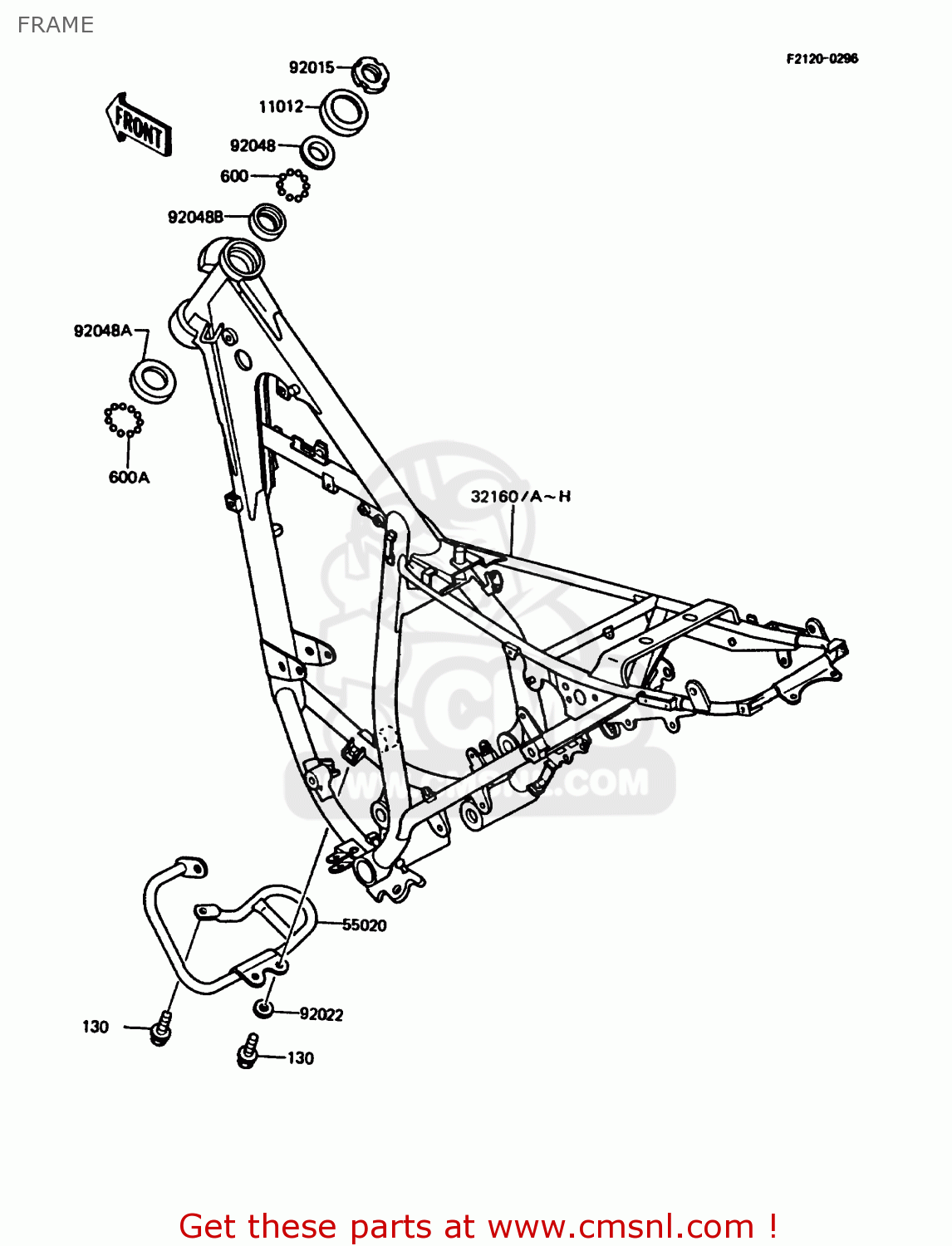

Frame diagram KMX125-A4 1989 EUROPE UK GR NR SD ST
FRAME KMX125-A4 1989 EUROPE UK GR NR SD ST
×
prices are in EUR
ref
part #
description
quantity
130
130G0614
ref: 130
BOLT,FLANGED,6X14
€ 0.50
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
600A
600A0800
ref: 600A
BALL-STEEL,1/4
€ 0.50
11012
46098018
ref: 11012
CAP,STEERING STEM
€ 4.00
32160
320021982CC
ref: 32160
UK
FRAME-COMP,L.GREEN
€ 894.00
32160A
320021982CD
ref: 32160A
UK
FRAME-COMP,F.RED
€ 786.50
32160C
321601071CC
ref: 32160C
EUGRST
FRAME-COMP,L.GREEN
€ 796.50
32160D
321601071CD
ref: 32160D
EUGRST
FRAME-COMP,F.RED
€ 633.00
32160F
321601072CC
ref: 32160F
NRSD
FRAME-COMP,L.GREEN
€ 796.50
32160G
321601072CD
ref: 32160G
NRSD
FRAME-COMP,F.RED
€ 633.00
55020
550201318
ref: 55020
GUARD,ENGINE
€ 47.50
92015
92090022
ref: 92015
NUT,STEERING LOCK,25M
€ 18.50
92022
920221565
ref: 92022
WASHER,6.5X16X2
€ 2.50
92048
92047014
ref: 92048
RACE,STEERING STEM BE
€ 12.50
92048A
92048005
ref: 92048A
RACE-STEERING BEARING
€ 11.50
92048B
92048009
ref: 92048B
RACE,STRG STM
€ 14.00
