SIDE COVERS/CHAIN COVER

KMX125-A4 1989 EUROPE UK GR NR SD ST

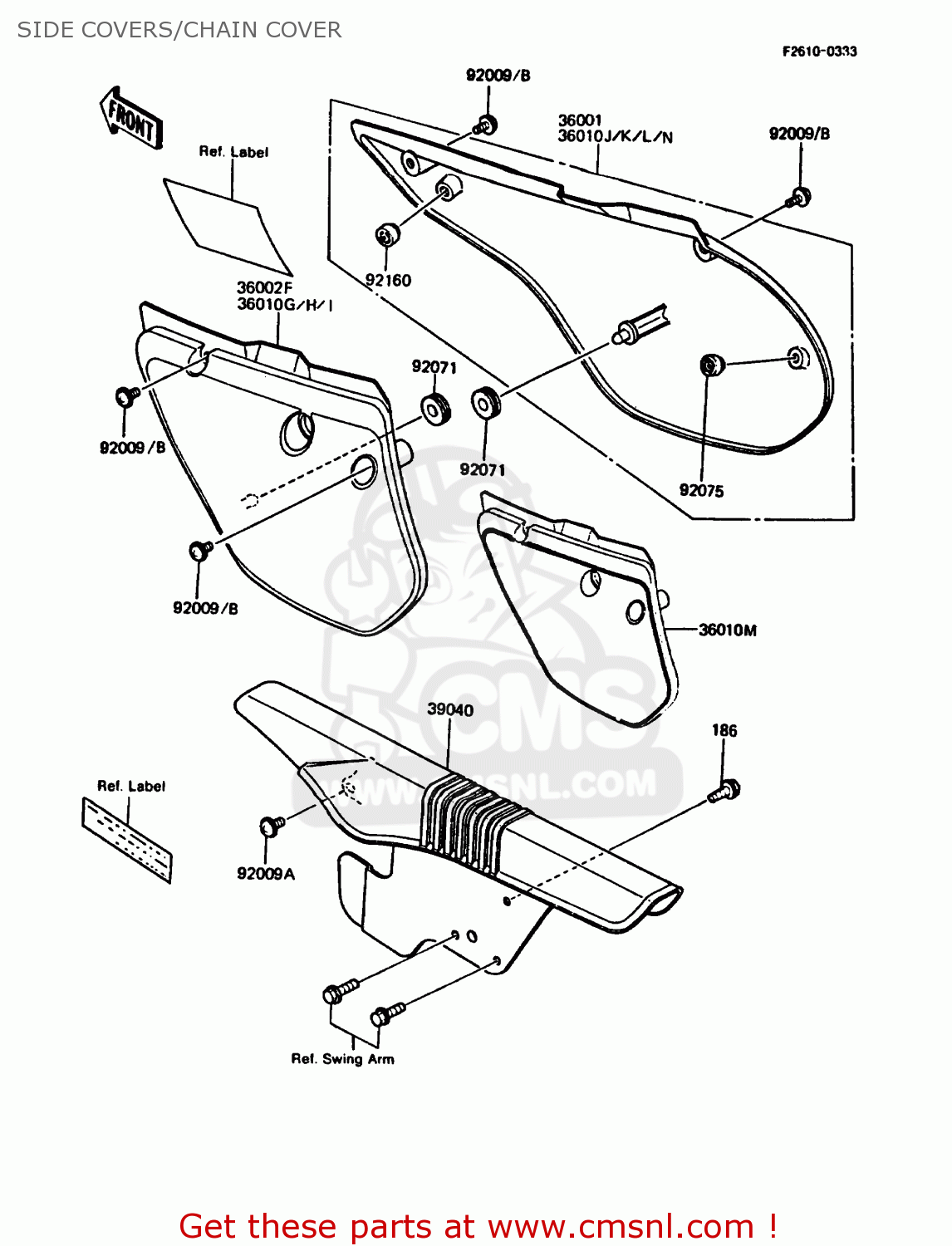

Side covers/chain cover diagram KMX125-A4 1989 EUROPE UK GR NR SD ST

prices are in EUR

ref

part #

description

quantity

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

36010G

360105165BG
ref: 36010G
EUGRNRSDST

COVER-SIDE,LH,BLUE

€ 64.00

36010H

360105165BV
ref: 36010H

COVER-SIDE,LH,BLUE 24

€ 64.00

36010I

3601051666C
ref: 36010I

COVER-SIDE,LH,EBONY

€ 70.50

36010J

360105167AT
ref: 36010J

COVER-SIDE,RH,EBONY/R

€ 67.50

36010K

360105168AS
ref: 36010K
EUGRNRSDST

COVER-SIDE,RH,BLUE/YE

€ 71.50

36010L

360105168AV
ref: 36010L

COVER-SIDE,RH,BLUE 24

€ 64.00

39040

390401054
ref: 39040

COVER-ASSY-CHAIN CASE

€ 70.00

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92009A

920091402
ref: 92009A

SCREW,6X10

€ 1.50

92009B

920091515
ref: 92009B

SCREW,6X8,BLACK

€ 2.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751598
ref: 92075

DAMPER,SIDE COVER

€ 5.50

92160

921601041
ref: 92160

DAMPER

€ 5.50
